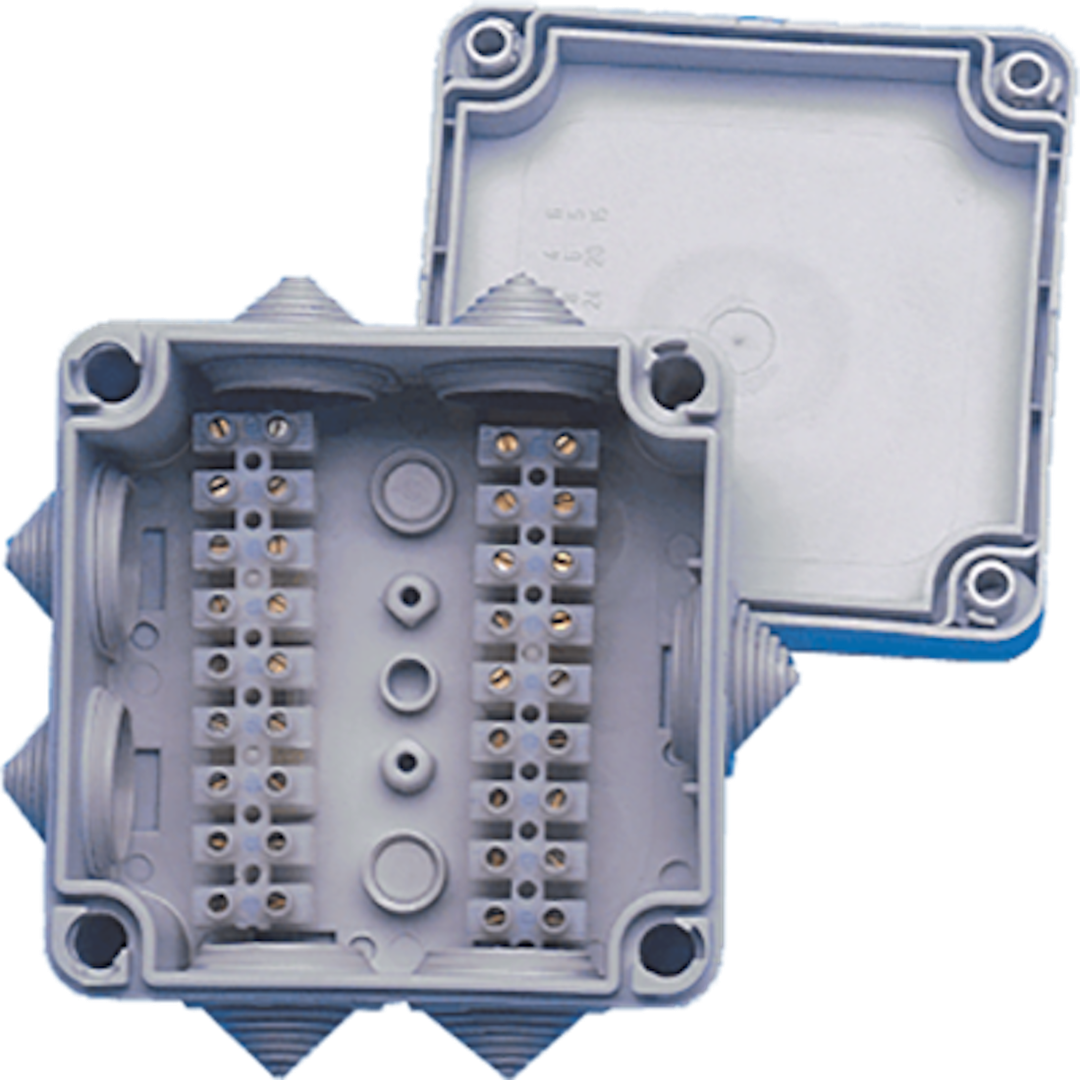

NewMar PX3 Junction Box

Why Choose the NewMar PX3 for Your Wiring Needs?

Marine enthusiasts, RV owners, and outdoor adventurers know the challenges of keeping electrical connections secure in wet, corrosive environments. The NewMar PX3 junction box steps in as a reliable solution, designed to protect splices and terminations from water, salt spray, and vibration. Unlike basic wire nuts or tape wraps that fail over time, this compact powerhouse offers a professional-grade seal that lasts season after season.

What sets it apart? Its thoughtful engineering combines rugged polycarbonate construction with user-friendly features, making it a go-to for boat wiring harnesses, solar panel hookups, and trailer lighting systems. Installers appreciate how it simplifies complex jobs, reducing callbacks and ensuring peace of mind on the water or road.

NewMar PX3 Attributes

• Waterproof Rating: IP68 certified, fully submersible up to 1.5 meters for 24 hours, ideal for bilge pumps and deck lights.
• Port Configuration: Three entries for 4-12 AWG wires, supporting up to 300V AC/DC and 20A continuous load.
• Material Durability: UV-stabilized polycarbonate base and lid, resistant to chemicals, oils, and impacts.
• Sealing Mechanism: Dual O-ring gaskets with slotted potting ports for resin fill, creating an impenetrable barrier.
• Mounting Flexibility: Integrated cable glands and recessed screw mounts for surface or bulkhead installation.
• Temperature Range: Operates from -40°F to 185°F, handling extreme climates without cracking.
• Terminal Design: Tin-plated brass blocks for corrosion-free connections, accepting ring or fork terminals.

These attributes aren't just specs—they translate to real-world reliability that outperforms generic boxes in salt fog tests and long-term exposure.

Real-World Applications and Benefits

Picture this: You're rigging a new fish finder on your center console, or extending power to auxiliary lights on your overland trailer. The NewMar PX3 handles it effortlessly. Its compact 4x4-inch footprint fits tight spaces, while the clear lid lets you inspect connections without disassembly.

Key benefits include:

• Superior Protection: Prevents short circuits from moisture ingress, extending equipment life.
• Easy Maintenance: Tool-free wire entry and resealable design for quick inspections.
• Vibration Resistance: Secures wires against engine rumble or trail bouncing.
• Cost Savings: Reduces wiring failures that lead to expensive repairs.

For solar setups, it shines by safeguarding DC junctions from rain and critters, boosting system efficiency.

Pro Installation Tips for Optimal Performance

Getting the most from your PX3 starts with prep. Strip wires to 1/2-inch, insert through glands, and secure with the provided ferrules. For high-humidity areas, pot the interior with marine-grade silicone after wiring. Torque screws to 20 in-lbs to compress O-rings fully—overtightening risks cracking.

Pro tip: Pair it with heat-shrink butt connectors for splices inside, creating a double-layer defense. Test continuity and submersion before final mounting. Common pitfalls? Skipping strain relief—always loop wires to prevent pull-out.

Whether DIY or pro, these steps ensure a bulletproof setup that passes any surveyor's eye.

How the NewMar PX3 Stacks Up Against Competitors

In a sea of junction boxes, the PX3 leads with its marine-specific tweaks. While blue plastic boxes flood the market, they often lack true IP68 submersion or brass terminals. Metal alternatives corrode faster in saltwater. The PX3's potting ports? A rare feature for ultimate sealing, unmatched in its class.

Users report zero failures after years of abuse, earning it top marks in boating forums for value and toughness.

Caring for Your NewMar PX3 Long-Term

Minimal upkeep keeps it performing: Annually rinse with fresh water post-salt exposure, inspect gaskets for wear, and re-pot if needed. Avoid abrasives on the lid to preserve transparency. With proper care, it'll outlast your vessel or rig.
