Blue Sea 1481 - 360 AC Src Sel, 30A 120v-Sh / 120V-Gen

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 1481BSS Attributes

• Compatibility: AC Rotary Switch
• Style: 360 Panel
• Color: Gray

Blue Sea 1481BSS Features & Benefits

• Switches Two 120 Volt AC Sources
• Red Reverse Polarity LED Indicators
• Green Power Available LED Indicators
• No Supplier Warranty

Blue Sea 1481BSS Installation Instructions

• 990343500.pdf

Blue Sea 1481BSS Technical Bulletins

• 990344360.pdf
• 9009-schematic.pdf

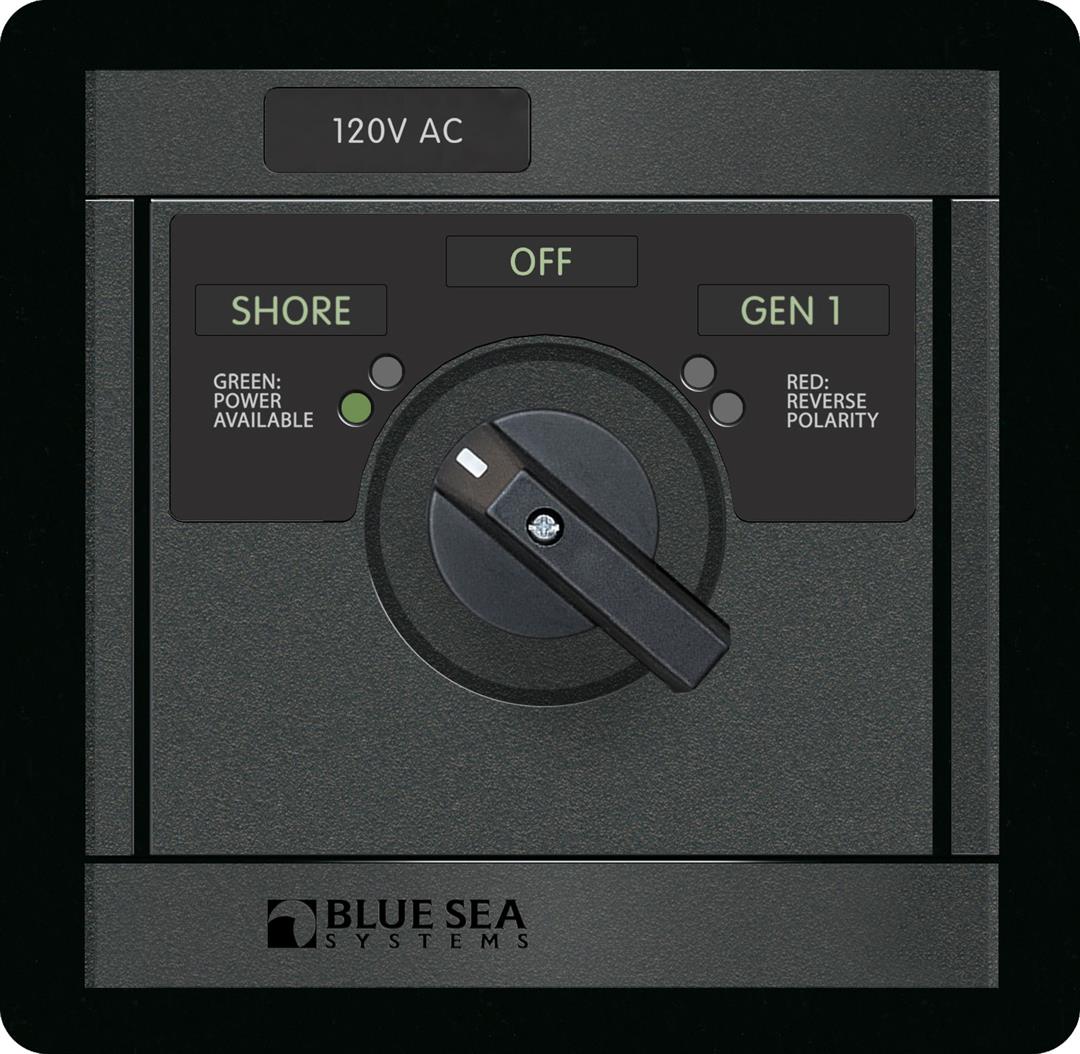

360 Series A/C Source Selector Switch Panel, MFG# 1481, 30 Amp. Positions: 120V shore power-off-120V Gen. Feeds one 120V bus. Power available & reverse polarity indication. 4.88"W x 4.75"H x 1.9"D.

"This rotary switch panel could be used to select between a generator and shore power and is for 30 Amp service. Switches -10 Volt AC sources Includes 9009 heavy duty industrial rated switch Red reverse polarity LED indicators Green power available LED indicatorsA 701 dual bus bar is supplied with this switch panel Detailed specification, drawings, and description."
SKU: NVN-2000017
MPN: 1481
UPC: 632085014810
