Newmar 8A Ground Plate
Newmar 8A Ground Plate — Product description
Enhance your vessel's radio performance with the Newmar 8A Ground Plate, a reliable solution designed for boat owners seeking crystal-clear communication at sea. In the world of marine electronics, a solid RF ground is essential to minimize noise interference and maximize signal quality, especially for HF and SSB radios. This ground plate achieves that by forging a direct, low-resistance connection to the surrounding seawater, acting as an expansive antenna counterpoise right through your hull.
Superior Design for Unmatched RF Grounding
The secret to the Newmar 8A's effectiveness lies in its innovative porous copper construction. Unlike traditional flat plates, this material features a highly porous structure that dramatically increases the effective surface area submerged in water. What might look compact above the hull delivers the RF grounding power equivalent to 20 square feet—or about 6.1 square meters—of smooth copper surface. This magnification ensures efficient dissipation of RF energy, reducing static and atmospheric noise that plagues marine radios during transmissions and receptions.
Crafted for durability in harsh saltwater environments, the plate comes complete with silicon bronze hardware for secure, corrosion-resistant mounting. While it's optimized for RF grounding in communication systems, remember it's not rated for lightning protection—pair it with dedicated surge devices for full storm readiness.
Key Specifications at a Glance

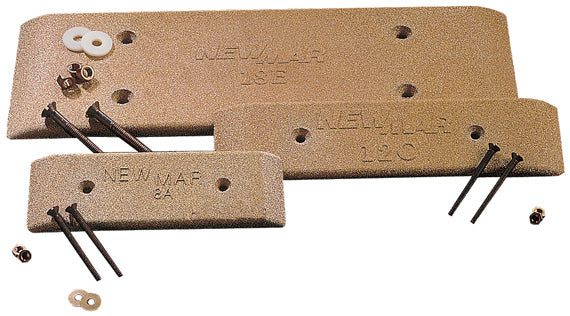

Available in a range of sizes to suit various vessel types, the Newmar series offers flexibility without compromising performance. Here's a detailed comparison:
| Model | Dimensions | Ground Area Equivalent | Weight | |||
|---|---|---|---|---|---|---|
| Inches | Centimeters | Sq. Ft. | M² | Lbs | Kg | |
| 8A | 8 x 2.5 x 0.5 | 20.3 x 6.3 x 1.3 | 20 | 6.1 | 3 | 1.4 |
| 12C | 12 x 3 x 0.5 | 30.5 x 7.6 x 1.3 | 40 | 12.2 | 4 | 1.8 |
| 18E | 18 x 6 x 0.5 | 45.7 x 15.2 x 1.3 | 100 | 30.5 | 11 | 5 |
Why Seawater Grounding Beats Alternatives
Many boaters start with backstay insulators or dynaflex-style grounds, but nothing rivals a dedicated through-hull ground plate like the Newmar 8A for consistent results. Seawater provides near-infinite conductivity, far superior to engine blocks or strap grounds that pick up motor noise and stray currents. Install it amidships, below the waterline, and connect via heavy-gauge tinned copper strap to your radio's ground bus. The result? Sharper S-meter readings, cleaner audio, and reliable long-range contacts—even in choppy conditions.
For smaller vessels like sailboats under 40 feet, the 8A strikes the perfect balance of size and power. Its lightweight 3-pound profile (1.4 kg) makes solo installation feasible, while the silicon bronze studs ensure a bombproof mechanical and electrical bond.
Installation Insights from Marine Pros
Positioning matters: Mount the plate flat against the hull, avoiding prop wash zones to prevent marine growth buildup. Use a marine sealant like 3M 4200 for the through-hull hole, and opt for #8 or larger AWG wire runs kept as short as possible. Test your setup with a multimeter for continuity to seawater, and monitor for electrolysis—though the porous design and bronze hardware minimize galvanic risks. Regular freshwater rinses during haul-outs keep it performing like new.
Pro tip: Integrate it into a full grounding system with a common ground point for all radios, GPS, and even your fishfinder to squash cross-talk across the board.
Real-World Performance on the Water
Skippers running Icom or Kenwood rigs report transformative improvements: from garbled weatherfax receptions to punchy NVIS skips during rallies. Whether you're chasing DX on 20 meters or coordinating with the fleet on VHF, the Newmar 8A elevates your station from average to elite. Its longevity in tropical waters speaks volumes—many units last decades with minimal maintenance.
Frequently Asked Questions
What makes the Newmar 8A Ground Plate different from a standard copper plate?
The porous copper structure creates microscopic channels that boost the effective surface area by up to 10 times, providing superior RF dissipation compared to solid plates which rely solely on their visible footprint.
Is the Newmar 8A suitable for lightning protection on my boat?
No, it's designed specifically for RF grounding in communication systems. For lightning, use dedicated arrestors and heavy-duty hull penetrators rated for high-voltage strikes.
How do I choose between the 8A, 12C, and 18E models?
Select based on boat size and power output. The 8A suits vessels under 40ft with up to 150W radios; scale up to 12C for midsize cruisers or 18E for larger yachts handling 400W+.
Will this ground plate reduce alternator whine in my marine stereo?
Primarily for RF, but it can help by providing a clean DC reference. For audio noise, combine with isolators and check battery grounds first.
Does marine growth affect the Newmar 8A's performance?
Minimal impact thanks to the porous design channeling water flow. Clean annually during haul-outs, and avoid high-flow areas to limit fouling.
Can I install the Newmar 8A myself on a fiberglass hull?
Yes, with basic tools. Drill a precise through-hull hole, bed in sealant, torque the hardware, and route ground straps neatly for best results.
- Provide an excellent noise-free RF ground by making direct contact with water outside hull.
- Porous copper construction magnifies contact area ? see matrix for surface area equivalent
- Silicon bronze hardware provided (Not intended for lightning protection)
| Model | Dimensions | Ground Area | Weight | |||
| Inches | Centimeters | Equivalent | Lbs | Kg | ||
| 8A | 8 x 2 .5 x .5 | 20.3 x 6.3 x 1.3 | 20 sq. ft. | 6.1 M2 | 3 | 1.4 |
| 12C | 12 x 3 x .5 | 30.5 x 7.6 x 1.3 | 40 sq. ft. | 12.2 M2 | 4 | 1.8 |
| 18E | 18 x 6 x .5 | 45.7 x 15.2 x 1.3 | 100 sq. ft. | 30.5 M2 | 11 | 5 |
Provides excellent noise-free RF grounding by directly contacting the water outside the hull. Will the porous copper structure expand the contact area? See surface area equivalent matrix silicon bronze...
SKU: NVN-1002217
MPN: 8A
UPC:
Technical specifications
| Brand | NewMar |
| Model | Newmar 8A Ground Plate |
| SKU / MFR# | 1002217 |
