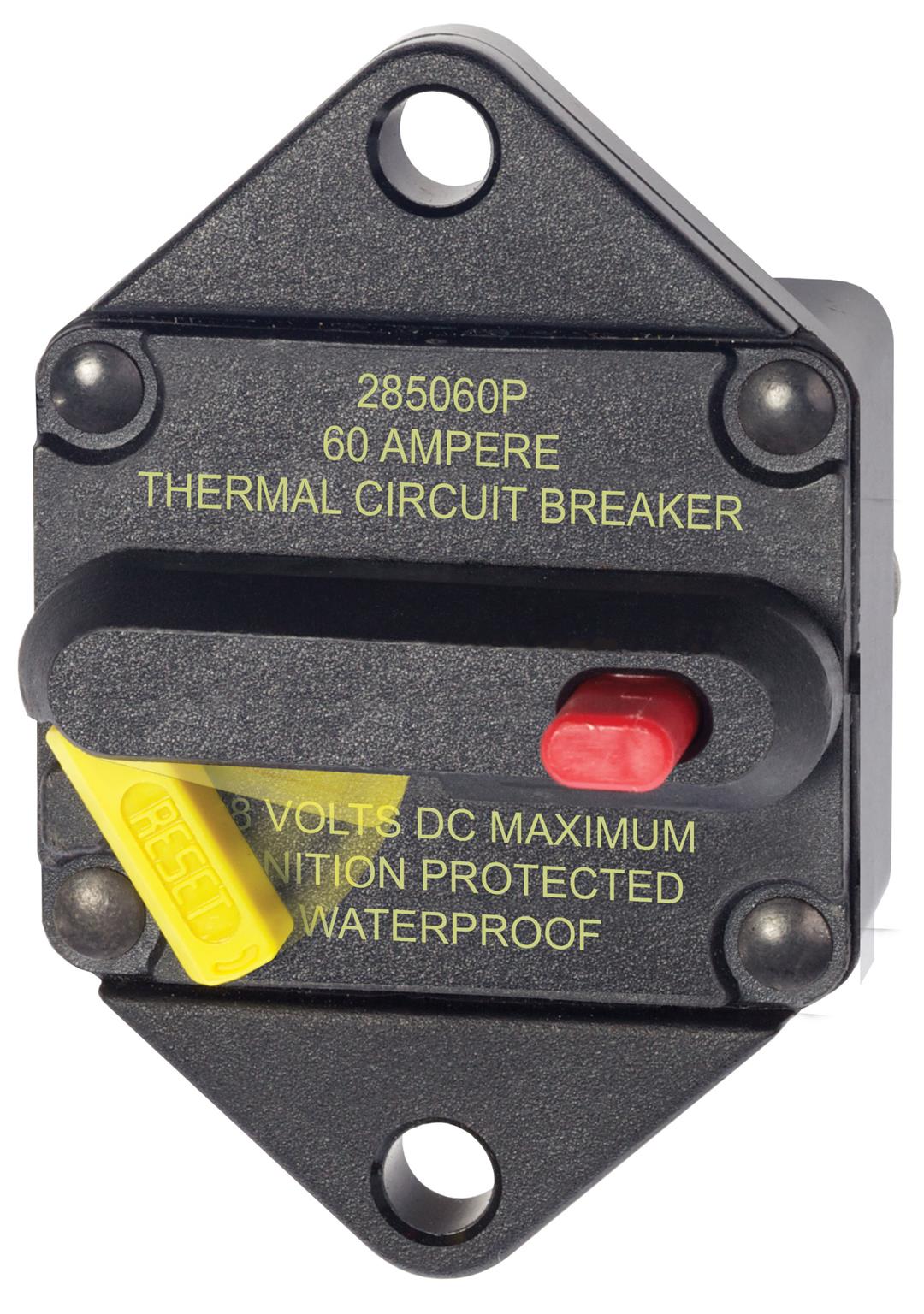

Blue Sea 7084 - 285-Series 60 Amp Circuit Breaker Panel Mount

Thermal circuit breakers provides medium duty circuit protection for 25 to 150 Amp loads when switching and circuit protection are both required. All of the company’s products are designed to easily integrate into simple or comprehensive electrical systems. The world’s leading RV manufacturers are recognizing the requirement for quality electrical systems and are specifying our products as original equipment.

Blue Sea 7084BSS Attributes

• Ampere Rating: 60 Amp
• Voltage Rating: 48 Volt
• Reset Type: Manual And Switchable
• Terminal Connection: Stud
• Type: Thermal
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 7084BSS Features & Benefits

• Drop In Replacement For 185-Series Circuit Breakers
• Visible Reset Lever Shows Open Condition
• Ignition Protected - Safe For Installation Aboard Gasoline Powered Boats
• Meets SAE J1171 External Ignition Protection Requirements
• Weather Resistant
• Combines Switching And Circuit Breaker Function Into One Unit
• Trip Free - Cannot Be Held Closed After Trip
• No Supplier Warranty

Ble Sea Systems 285-Series Circuit Breaker - Panel Mount 60A

Model: 7084-BSS

• Drop in replacement for 185-Series Circuit Breakers
• Visible reset lever shows open condition
• Ignition protected - Safe for installation aboard gasoline powered boats
• Meets SAE J1171 external ignition protection requirements
• Weather Resistant
• Combines switching and circuit breaker function into one unit*
• "Trip Free" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected

Specifications

Amperage	60A
Maximum Voltage	48V DC
Mounting	Surface Mount
Circuit Breaker Type	Thermally responsive Bi-metal blade
Terminal Stud Torque	60 in-lb (6.78 Nm)
Interrupt Capacity	3000A @ 48V
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Circuit Breaker Class	Type III - switchable/manual reset - trip free
Terminal Stud	M6 (accepts 1/4" Ring Terminal)

c

"Provides medium duty circuit protection for 25 to 200 amp loads when switching and circuit protection are both required. \"Trip-free\" - cannot be held closed after trip. Visible reset lever shows open condition. Drop in replacement for 185 series circuit breakers. Maximum operating voltage is 48 volts DC. Meets SAE J1171 external ignition protection requirements. IP67-protected against immersion up to 1 meter for 30 minutes."
SKU: NVN-1001944
MPN: 7084-BSS
UPC: 632085070847
