Newmar ACCY-IX Breaker Panel With Lights
Newmar ACCY-IX Breaker Panel With Lights — Product description
Why Choose the Newmar ACCY-IX for Your Boat's Electrical System?
Boat owners know the frustration of tangled wires and unreliable circuit protection—especially when you're out on the water and every system counts. The Newmar ACCY-IX breaker panel steps in as a compact, reliable solution designed specifically for marine environments. Whether you're outfitting a small fishing boat with basic needs or expanding the electrical setup on a larger yacht, this panel's modular design lets you scale effortlessly without compromising on safety or aesthetics.
What sets it apart? Built-in DC indicator lights give you instant visual feedback on circuit status, so you can spot issues like a faulty bilge pump or cabin lights before they become problems. It's not just functional; it's engineered to blend seamlessly into your vessel's console, saving space while handling up to 8 breakers. Boaters rave about its durability against saltwater corrosion and vibrations, making it a go-to for weekend warriors and liveaboards alike.
Standout Features Tailored for Marine Use
- Flexible Breaker Capacity: Supports 8 positions, with 5 breakers pre-installed (typically 2x5A, 1x10A, 1x15A, 1x20A—or customize to your needs). Perfect for essentials like navigation lights, pumps, and outlets.
- Visual Monitoring: 8 DC "ON" indicator lights standard for quick diagnostics; swap to AC lights if your setup demands it.
- Compact Footprint: Measures just 7.5" wide by 5.25" high, weighing only 2 lbs—ideal for tight dash spaces.
- Customization Ready: Comes with a full label set for 22 common boat circuits, plus all hardware for easy additions.
- Proven Reliability: Newmar's reputation in marine power means this panel withstands harsh conditions, from engine room heat to deck moisture.
Modular Options to Fit Any Vessel
Need a blank slate? Pair it with the ACCY-IBX blank version—no breakers included, but everything else is ready for your custom build. For even smaller setups, check the half-height ACCY-IIX (3 breakers) or its blank counterpart ACCY-IIBX. These let you expand without overhauling your entire panel.
Simple Installation for DIY Boaters
Installing the ACCY-IX is straightforward, even if you're not a full-time electrician. Start by tracing your cut-out: 4" wide by 6" high, with about 3" depth clearance behind the panel for wiring. Mount it flush in your console, connect your DC circuits to the breakers, and snap in the indicator lights. Use the included LS-I label set to mark everything clearly—labels cover everything from "Bilge Pump" to "Windlass" and "Running Lights."
Pro Tip: Always double-check polarity and use marine-grade wire to prevent shorts. Test each circuit post-install with a multimeter for peace of mind. This modular setup shines when adding circuits later—just pop in a breaker and light.
Installation Cut-Out Dimensions
| Model | Inches (W x H) |
|---|---|
| ACCY-IX | 4 x 6 |
| ACCY-IBX | 4 x 6 |
| ACCY-IIX / ACCY-IIBX | 4 x 2.5 |
| *Allow approx. 3" depth clearance for wiring. | |
Pre-Printed Labels for Effortless Organization
The included LS-I standard set features 22 labels for onboard essentials, eliminating guesswork:
- Accessory
- Aft Cabin
- Anchor
- Bilge Pump
- Bow
- Cabin Lights
- Engine Room
- Fore Cabin
- Main Cabin
- Mast
- Nav/Com
- Outlets
- Refrigerator
- Running
- Spare
- Spreader
- Sump Pump
- Water Heater
- Water Pressure
- Windlass
- Windshield
Custom scribble your own spares—keeps things tidy during troubleshooting.
Frequently Asked Questions
Upgrade Your Boat's Power Management Today
Investing in the Newmar ACCY-IX means fewer headaches, safer boating, and a cleaner electrical backbone. It's the smart choice for anyone serious about reliability on the water—from casual cruisers to offshore adventurers.
Accessory Panels
These versatile panels are ideal for smaller vessels with only a limited number of electrical circuits, or for larger systems where their modular design makes for an easy and attractive expansion of existing system capacity.
Stock panels with breakers installed come standard with DC indicator lights, but may be factory modified with AC indicator lights instead. Blank versions of the panels come with all necessary hardware to install lights and breakers. All panels are provided with a circuit identification label set of 22 common on-board electrical functions (see below).

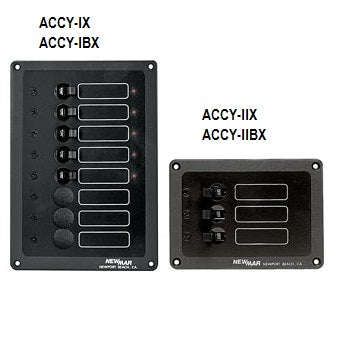

ACCY-IX:
8 breaker capacity, 5 installed standard; 2-5A, 1-10A, 1-15A, 1-20A or specify. 8 DC circuit "ON" indicator lights installed standard, AC lights optional. Size: 7 1/2" x 5 1/4", Weight: 2 lbs.
ACCY-IBX: Blank version of ACCY-IX above. No breakers provided. Label set, light and breaker mounting hardware provided. Weight: 1 lb.
Half-height version of ACCY-IX at left. 3 breaker capacity, 3 installed standard; 3 DC ?ON? indicator lights installed standard - AC optional. 1-5A, 1-10A 1-15A or specify. Size: 3 3/4" x 5 1/4", Weight: 1 lb.
ACCY-IIBX:
Blank version of ACCY-IIX above. No breakers or lights provided. Label set, light and breaker mounting hardware provided. Weight: 1 lb.
Installation Cut-Out Dimensions*
| Model | Inches (W x H) |
| ACCY-IX | 4 X 6 |
| ACCY-IBX | 4 X 6 |
| ACCY-IIBX | 4 X2.5 |
| * Allow approximately 3" depth clearance for all panels on this page. | |
Label Set Provided
| LS-I Standard Set 22 Labels | ||
| ACCESSORY AFT CABIN ANCHOR BILGE PUMP BOW CABIN LIGHTS ENGINE ROOM | FORE CABIN MAIN CABIN MAST NAV/COM OUTLETS REFRIGERATOR RUNNING | SPARE SPREADER SUMP PUMP WATER HEATER WATER PRESSURE WINDLASS WINDSHIELD |
"NEWMAR's DC accessory distribution panel, eight (8) breaker positions, five (5) installed, with power-on indicator LEDs and label set, 7.5 H x 5.25 W "
SKU: NVN-1001148
MPN: ACCY-IX
UPC: 00729198347079
Technical specifications
| Brand | NewMar |
| Model | Newmar ACCY-IX Breaker Panel With Lights |
| SKU / MFR# | 1001148 |
