Newmar 18E Ground Plate
Newmar 18E Ground Plate — Product description
Enhance your vessel's HF radio performance with the Newmar 18E ground plate, a powerhouse solution for achieving a pristine, noise-free RF ground. By forging a direct electrical pathway to the seawater beyond your hull, this plate slashes RF interference, delivering clearer signals and more reliable long-distance communications—essential for offshore adventurers, commercial operators, and serious radio enthusiasts.
What sets the 18E apart? Its innovative porous copper design doesn't just provide surface contact; it actively expands the effective grounding area through microscopic electrolysis. Over time, seawater interacts with the material, forming a vast network of conductive dendrites that multiply the plate's reach exponentially. For the 18E model, this translates to an impressive equivalent of 100 square feet of grounding surface, rivaling much larger solid plates but in a compact, lightweight package.
Key Advantages of the Newmar 18E Ground Plate
- Superior RF Grounding: Direct hull-to-water contact eliminates common grounding issues like stray currents and common-mode noise, ensuring your transceiver operates at peak efficiency.
- Porous Copper Matrix: Engineered porosity boosts the contact area far beyond its physical size—think of it as a "sponge" for RF energy dissipation in saltwater.
- Durable Silicon Bronze Hardware: Corrosion-resistant fasteners make installation straightforward and long-lasting, tailored for harsh marine environments.
- Lightweight Yet Robust: At just 11 pounds, it's easy to handle during install without sacrificing the heavy-duty performance needed for demanding setups.
- Optimized for HF Bands: Perfect for 160-10 meters, where ground quality directly impacts radiation efficiency and receive clarity.

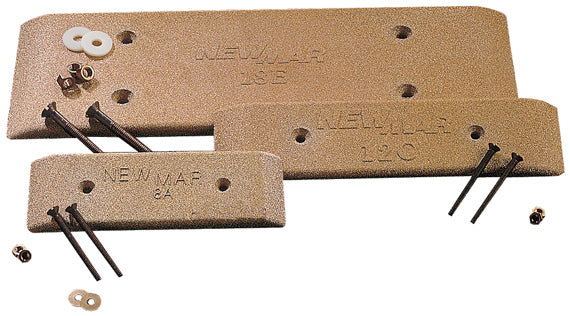

Newmar Ground Plate Series Specifications
Compare models to see why the 18E stands out for larger vessels or high-power setups. Its expansive dimensions deliver unmatched ground area for serious applications.
| Model | Dimensions | Ground Area Equivalent | Weight | |||
|---|---|---|---|---|---|---|
| Inches | Centimeters | Sq. Ft. | M² | Lbs | Kg | |
| 8A | 8 x 2.5 x 0.5 | 20.3 x 6.3 x 1.3 | 20 | 6.1 | 3 | 1.4 |
| 12C | 12 x 3 x 0.5 | 30.5 x 7.6 x 1.3 | 40 | 12.2 | 4 | 1.8 |
| 18E | 18 x 6 x 0.5 | 45.7 x 15.2 x 1.3 | 100 | 30.5 | 11 | 5 |
How the Porous Copper Design Revolutionizes RF Grounding
Traditional solid plates rely on flat surface area, but the Newmar 18E's porous structure changes the game. When immersed in electrolyte-rich seawater, tiny currents etch away at the copper, creating a fractal-like matrix of projections. This isn't degradation—it's enhancement. The result? A dynamic ground plane that grows more effective over time, handling high RF currents without overheating or detuning your antenna system.
Boat owners report dramatic improvements: reduced birdies on receive, stronger transmitted signals, and fewer frustrating QRM issues during DX pileups. Pair it with a quality tuner and radial system above the waterline for a complete ground-independent setup that shines in real-world conditions, from coastal cruising to bluewater passages.
Real-World Benefits for Marine Radio Users
- Crystal-Clear Reception: Banish noise floors caused by poor grounds, picking up weak signals from halfway around the world.
- Boosted Transmit Efficiency: Efficient RF dissipation means more power radiates outward, not lost to chassis feedback.
- Easy Integration: Mounts securely through the hull with provided hardware; compatible with most marine-grade sealants for watertight installs.
- Maintenance-Free Longevity: Self-renewing surface resists fouling better than plain metals, thriving in saltwater for years.
Whether upgrading an older rig or building a contest-grade station, the 18E delivers professional-grade grounding without the complexity of dynapole alternatives.
Frequently Asked Questions
What is the primary function of the Newmar 18E ground plate?
It provides a low-impedance RF ground for HF marine radios by directly connecting to seawater outside the hull, minimizing noise and improving signal quality.
How does the porous copper construction benefit RF performance?
The porous material creates a magnified surface area through electrolysis in seawater, equivalent to 100 square feet for the 18E, far exceeding its physical size for superior RF dissipation.
Is the Newmar 18E suitable for lightning protection?
No, it's designed specifically for RF grounding, not DC or lightning protection. Use dedicated systems for those purposes.
What are the dimensions and weight of the 18E model?
It measures 18 x 6 x 0.5 inches (45.7 x 15.2 x 1.3 cm) and weighs 11 lbs (5 kg), making it manageable for most hull installations.
Can the Newmar ground plates be used on any boat hull material?
Yes, they're versatile for fiberglass, wood, or metal hulls, as long as properly bedded with marine sealant to ensure a watertight seal.
How does the 18E compare to smaller models like the 8A?
The 18E offers five times the ground area (100 sq ft vs. 20 sq ft), ideal for higher power or larger vessels, while remaining relatively lightweight.
Does the plate require special maintenance in saltwater?
Minimal—its self-renewing porous surface handles marine growth well. Periodic inspection of hardware ensures optimal performance.
- Provide an excellent noise-free RF ground by making direct contact with water outside hull.
- Porous copper construction magnifies contact area ? see matrix for surface area equivalent
- Silicon bronze hardware provided (Not intended for lightning protection)
| Model | Dimensions | Ground Area | Weight | |||
| Inches | Centimeters | Equivalent | Lbs | Kg | ||
| 8A | 8 x 2 .5 x .5 | 20.3 x 6.3 x 1.3 | 20 sq. ft. | 6.1 M2 | 3 | 1.4 |
| 12C | 12 x 3 x .5 | 30.5 x 7.6 x 1.3 | 40 sq. ft. | 12.2 M2 | 4 | 1.8 |
| 18E | 18 x 6 x .5 | 45.7 x 15.2 x 1.3 | 100 sq. ft. | 30.5 M2 | 11 | 5 |
""
SKU: NVN-1001129
MPN: 18E
UPC:
Technical specifications
| Brand | NewMar |
| Model | Newmar 18E Ground Plate |
| SKU / MFR# | 1001129 |
