Newmar 12C Ground Plate
Newmar 12C Ground Plate — Product description
Enhance your marine radio performance with the Newmar 12C ground plate, a reliable solution designed specifically for boaters seeking crystal-clear RF signals. This plate establishes a direct, noise-free connection to seawater, minimizing interference that plagues many onboard communication systems. Whether you're communicating via VHF, SSB, or HF radios, the 12C delivers superior grounding that translates to stronger transmissions and better reception—even in choppy waters or remote areas.
Crafted from porous copper, the Newmar 12C maximizes surface contact with water through its unique microstructure. This isn't just a flat plate; it's engineered to provide the equivalent of 40 square feet of grounding area, far surpassing traditional methods like backstays or strap grounds. Boaters often report dramatic reductions in static and atmospheric noise after installation, making long-distance contacts more reliable and enjoyable.
Key Features of the Newmar 12C
- Direct Seawater Contact: Bypasses hull barriers for optimal RF grounding, ensuring minimal signal loss and noise.
- Porous Copper Design: Boosts effective surface area to 40 sq. ft. (12.2 m²), mimicking a massive copper foil wrap around your hull.
- Durable Silicon Bronze Hardware: Corrosion-resistant fasteners secure it firmly without compromising marine environments.
- Compact Yet Powerful: Measures 12 x 3 x 0.5 inches (30.5 x 7.6 x 1.3 cm) and weighs just 4 lbs (1.8 kg), easy to handle during installation.
- Not for Lightning: Focused purely on RF performance, pair with dedicated lightning systems for full protection.

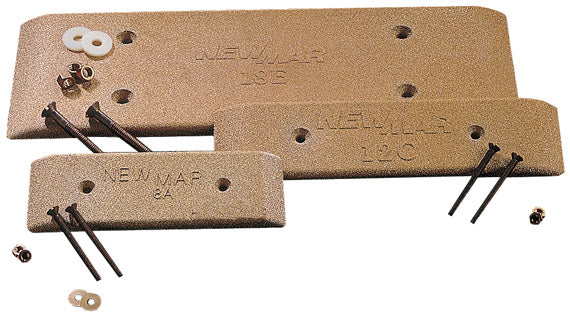

Model Comparison at a Glance
Choose the right size for your vessel. The Newmar family offers scalable options, with the 12C striking a perfect balance for mid-sized boats.
| Model | Dimensions | Ground Area Equivalent | Weight | |||
|---|---|---|---|---|---|---|
| Inches | Centimeters | Sq. Ft. | M² | Lbs | Kg | |
| 8A | 8 x 2.5 x 0.5 | 20.3 x 6.3 x 1.3 | 20 | 6.1 | 3 | 1.4 |
| 12C | 12 x 3 x 0.5 | 30.5 x 7.6 x 1.3 | 40 | 12.2 | 4 | 1.8 |
| 18E | 18 x 6 x 0.5 | 45.7 x 15.2 x 1.3 | 100 | 30.5 | 11 | 5 |
How the Newmar 12C Improves Your Boat's RF Grounding
Traditional grounding relies on hull fittings or straps, which often introduce resistance and noise. The 12C changes that by penetrating the hull (via a 1-inch hole) and immersing its porous copper directly in seawater. This creates an electrolytic bond, where countless microscopic pores act like tiny electrodes, vastly increasing conductivity.
Imagine tuning into a distant ham radio net without the constant crackle of engine noise or alternator whine. Real-world users— from coastal cruisers to offshore sailors—note improvements in SSB receive sensitivity by up to 10-15 dB. It's particularly vital for digital modes like PACTOR or Winlink, where clean grounds prevent data errors.
Simple Installation Tips for Optimal Performance
- Site Selection: Mount below the waterline, ideally amidships, away from thru-hulls or props to avoid turbulence.
- Prep the Hull: Drill a clean 1-inch hole, seal with marine sealant, and bed the plate firmly.
- Wiring: Use heavy tinned copper cable (at least #8 AWG) to connect to your radio's ground bus. Keep runs short and direct.
- Secure Hardware: Torque silicon bronze screws to spec; no need for backer plates on most fiberglass hulls.
- Test It: Monitor SWR and noise floor post-install. A good ground drops background noise significantly.
Most installs take under an hour, and no special tools are required beyond basics. For metal hulls, consult a pro to avoid electrolysis issues.
Long-Term Reliability and Maintenance
The porous copper develops a natural patina over time, which actually enhances performance without eroding away like dynaplate alternatives. Annual checks involve scraping marine growth and inspecting cable connections. In saltwater, expect 10+ years of service; freshwater users see even longer life.
By investing in the 12C, you're not just grounding your radio—you're future-proofing your comms setup against the demands of modern marine electronics.
Frequently Asked Questions
What makes the Newmar 12C better than strap or backstay grounding?
The 12C's porous copper provides 40 sq. ft. of equivalent surface area with direct seawater contact, drastically reducing RF noise compared to indirect methods like straps, which suffer from corrosion and poor conductivity.
Is the Newmar 12C suitable for fiberglass or metal hulls?
It's ideal for fiberglass hulls via thru-hull mounting. For metal hulls, use caution to prevent galvanic corrosion—bond it properly to the hull ground system.
How does the porous copper design work?
Microscopic pores create thousands of electrolytic contact points with seawater, magnifying the effective grounding area without dissolving the material over time.
Can the 12C handle high-power HF radios?
Yes, its 40 sq. ft. equivalent supports transmitters up to 1.5 kW, common in marine SSB setups, ensuring low SWR and efficient power transfer.
What's the expected lifespan in marine environments?
Typically 10-15 years in saltwater with minimal maintenance like occasional cleaning of growth. The self-passivating copper resists erosion effectively.
Does installation require professional help?
DIY-friendly for most boaters with basic tools. Drill, seal, wire, and test—under an hour for experienced owners.
Is it compatible with digital marine modes like Winlink?
Absolutely. Clean RF grounds like the 12C eliminate noise that causes packet errors, improving reliability for email-at-sea and weatherfax.
- Provide an excellent noise-free RF ground by making direct contact with water outside hull.
- Porous copper construction magnifies contact area ? see matrix for surface area equivalent
- Silicon bronze hardware provided (Not intended for lightning protection)
| Model | Dimensions | Ground Area | Weight | |||
| Inches | Centimeters | Equivalent | Lbs | Kg | ||
| 8A | 8 x 2 .5 x .5 | 20.3 x 6.3 x 1.3 | 20 sq. ft. | 6.1 M2 | 3 | 1.4 |
| 12C | 12 x 3 x .5 | 30.5 x 7.6 x 1.3 | 40 sq. ft. | 12.2 M2 | 4 | 1.8 |
| 18E | 18 x 6 x .5 | 45.7 x 15.2 x 1.3 | 100 sq. ft. | 30.5 M2 | 11 | 5 |
Provides excellent noise-free RF grounding by directly contacting the water outside the hull. Will the porous copper structure expand the contact area? See the surface area equivalent matrix diagram silicon bronze...
SKU: NVN-1001123
MPN: 12C
UPC:
Technical specifications
| Brand | NewMar |
| Model | Newmar 12C Ground Plate |
| SKU / MFR# | 1001123 |
