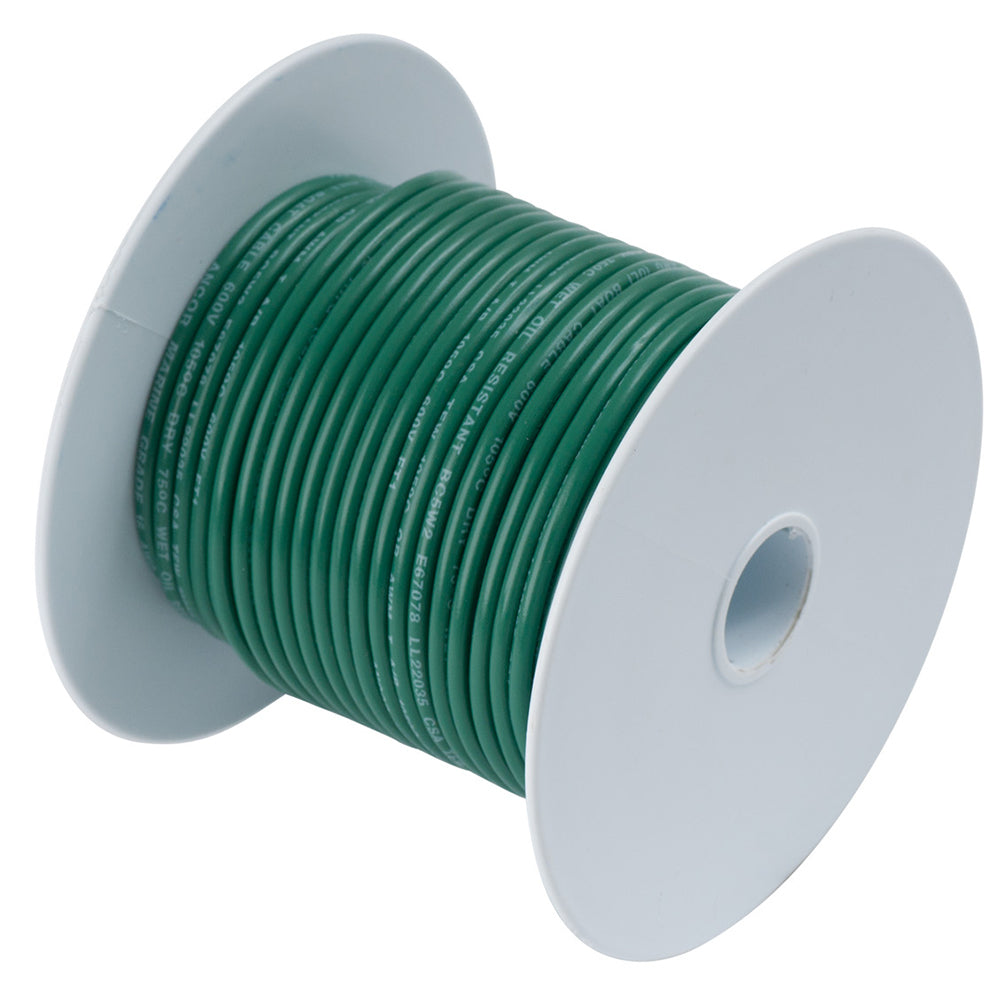

Ancor Green 14 AWG Tinned Copper Wire - 500'

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 volts, 105 Degree Celsius dry and 75 Degree Celsius wet, stays flexible even in extreme cold -40 degree Fahrenheit and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

Ancor 104350 Attributes

• Construction: Stranded Conductor
• Gauge: 14 Gauge
• Length: 500 Feet
• Color: Green
• Style: Spool
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Certification: UL/ CSA/ ABYC/ US Coast Guard Certified

Ancor 104350 Features & Benefits

• Manufactured From Tinned Copper Stranding For Maximum Protection Against Corrosion And Electrolysis
• Ultra Flexible Type 3 Stranding Resists Fatigue Due To Vibration And Flexing
• Stays Flexible Even In Extreme Cold -40 Degree Celsius And Resists Salt Water, Battery Acid, Oil, Gasoline And Ultra-Violet Radiation
• Exceeding UL 1426, ABYC And US Coast Guard Charter Boat Standards
• No Supplier Warranty

Ancor 104350 Technical Bulletins

• ANC_BRO_007.pdf
• SPEC_Ancor_Primary_Wire_Battery_Cable_TCHDAT.pdf
• ANC_NPA_001.pdf
• SPEC_Ancor_Primary_Wire_Battery_Cable_TCHDAT.pdf

Green 14 AWG Tinned Copper Wire - 500'

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

Wire Gauge: 14 AWG

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

They are made of high-quality vinyl insulation material, rated for dry burning temperature of 600V, 105C dry, and 75C wet, they are flexible even in extreme cold (-40F/C) conditions, and can resist salt water battery acid.. .
SKU: NVN-60815
MPN: 104350
UPC: 091887105148
