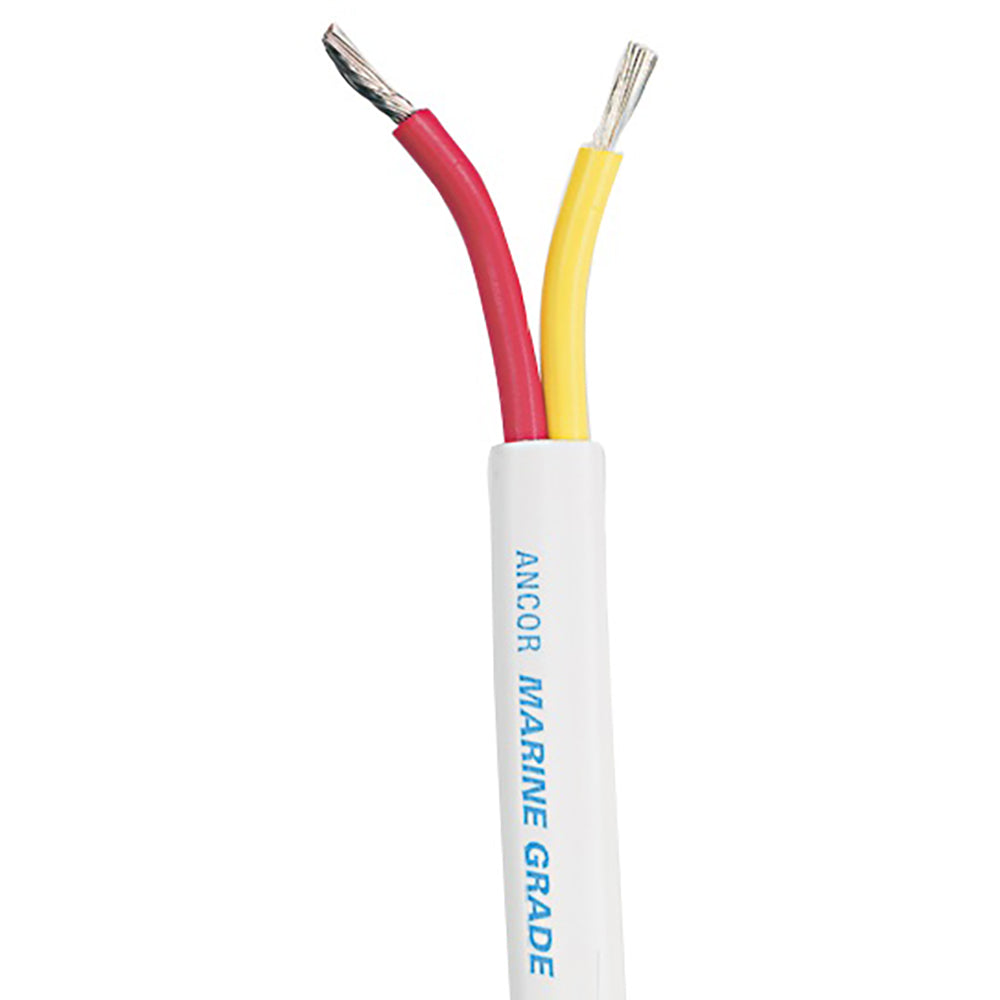

Ancor Safety Duplex Cable - 14/2 AWG - Red/Yellow - Flat - 500'

Ancor safety duplex cable features red and yellow Marine Grade primary conductors in a white common jacket that is made for easy removal while providing the best abrasion resistance available. These cables exceed UL 1426 standards and are made from the highest quality ultra flexible tinned copper stranding that provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. The premium vinyl insulation is rated at 600 Volt, 105 Degree Celsius dry and 75 Degree Celsius wet, stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation.

Ancor 124550 Attributes

• Construction: Stranded Conductor
• Gauge: 14 Gauge
• Length: 500 Feet
• Color: Red/ Yellow
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Certification: UL/ ABYC Certified

Ancor 124550 Features & Benefits

• Constructed With Premium Vinyl Insulation
• Flexible Even In Extreme Cold And Resists Salt Water, Battery Acid, Oil, Gasoline, Heat, Abrasion
• Highest Quality Ultra Flexible Tinned Copper Stranding
• Provides Maximum Protection Against Corrosion And Electrolysis
• Electrolysis While Resisting Fatigue Due To Vibration And Flexing
• No Supplier Warranty

Safety Duplex Cable - 14/2 AWG - Red/Yellow - Flat - 500'

Ancor safety duplex cable features red and yellow Marine Grade primary
conductors (correctly color-coded to ABYC standards) in a white common
jacket that is made for easy removal while providing the best abrasion
resistance available. These cables exceed UL 1426 standards and are made
from the highest quality ultra flexible (Type 3/Class K) tinned copper
stranding that provides maximum protection against corrosion and
electrolysis while resisting fatigue due to vibration and flexing. The
premium vinyl insulation is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water,
battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The internal conductors are correctly color coded in accordance with the yellow and red color code standards. Ancor recommends using a yellow wire as the DC negative pole, because black is the standard color for AC heat. ...
SKU: NVN-60731
MPN: 124550
UPC: 091887805987
