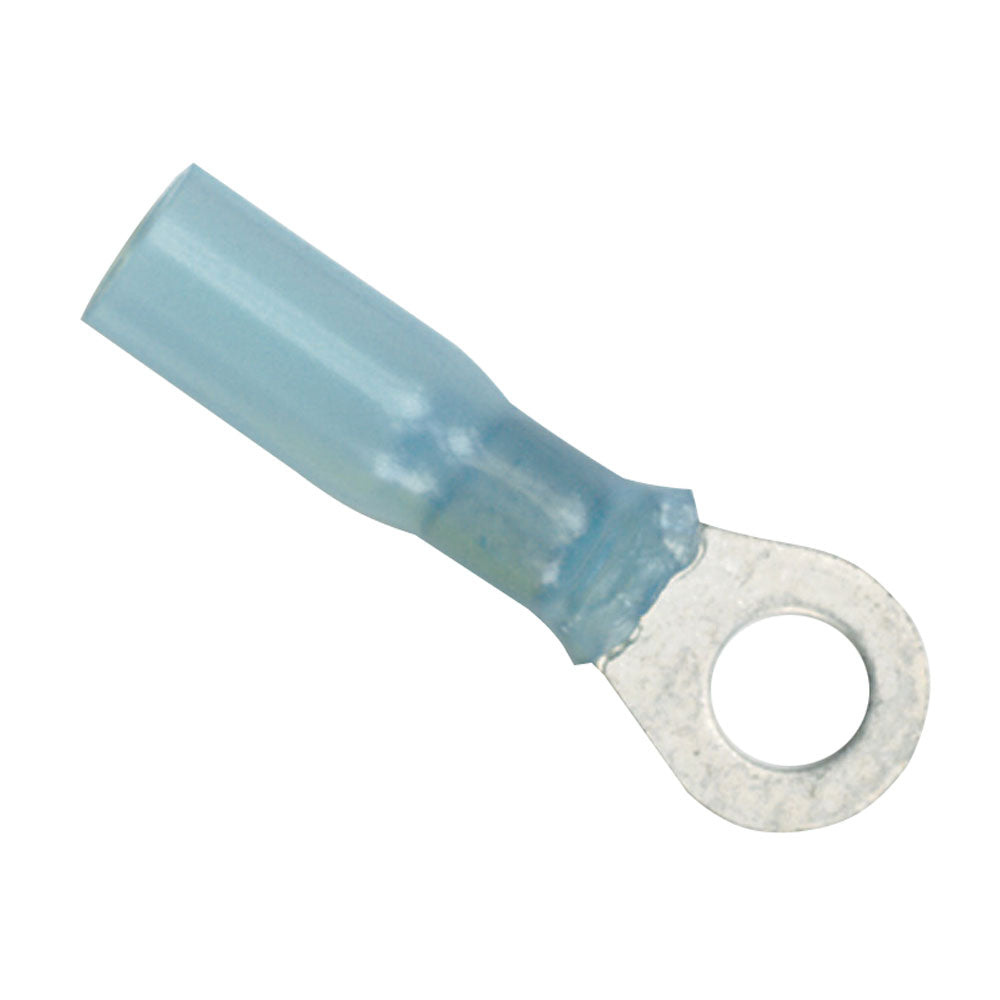

Ancor 16-14 Gauge - #10 Heat Shrink Ring Terminal - 100-Pack

Ancor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.

Ancor 311399 Attributes

• Type: #10 Ring Terminal
• Gauge Wire: 16 To 14 Gauge
• Color: Blue
• Material: Copper
• Quantity: Pack Of 100

Ancor 311399 Features & Benefits

• Tinned For Corrosion Resistance
• Pure Copper For Maximum Current Flow
• Brazed Seam For Maximum Strength
• UL Listed And CSA Recognized
• No Supplier Warranty

16-14 Gauge - #10 Heat Shrink Ring Terminal - 100-Pack

Gauge Size: 16-14
Screw Size: #10
Quantity: 100

Product Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief

• Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257° F/125° C

• Operating temperature range 40° C to 110° C

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief

• Tinned for corrosion resistance

• Pure copper for maximum current flow

• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Ancor heat shrinkable ring terminal has a heat activated adhesive built into the pipe sleeve. After heating, these terminals will form a watertight seal, which ultimately...
SKU: NVN-48529
MPN: 311399
UPC: 091887313123
