Victron Lynx Shunt VE. Can
Victron Lynx Shunt VE. Can — Product description

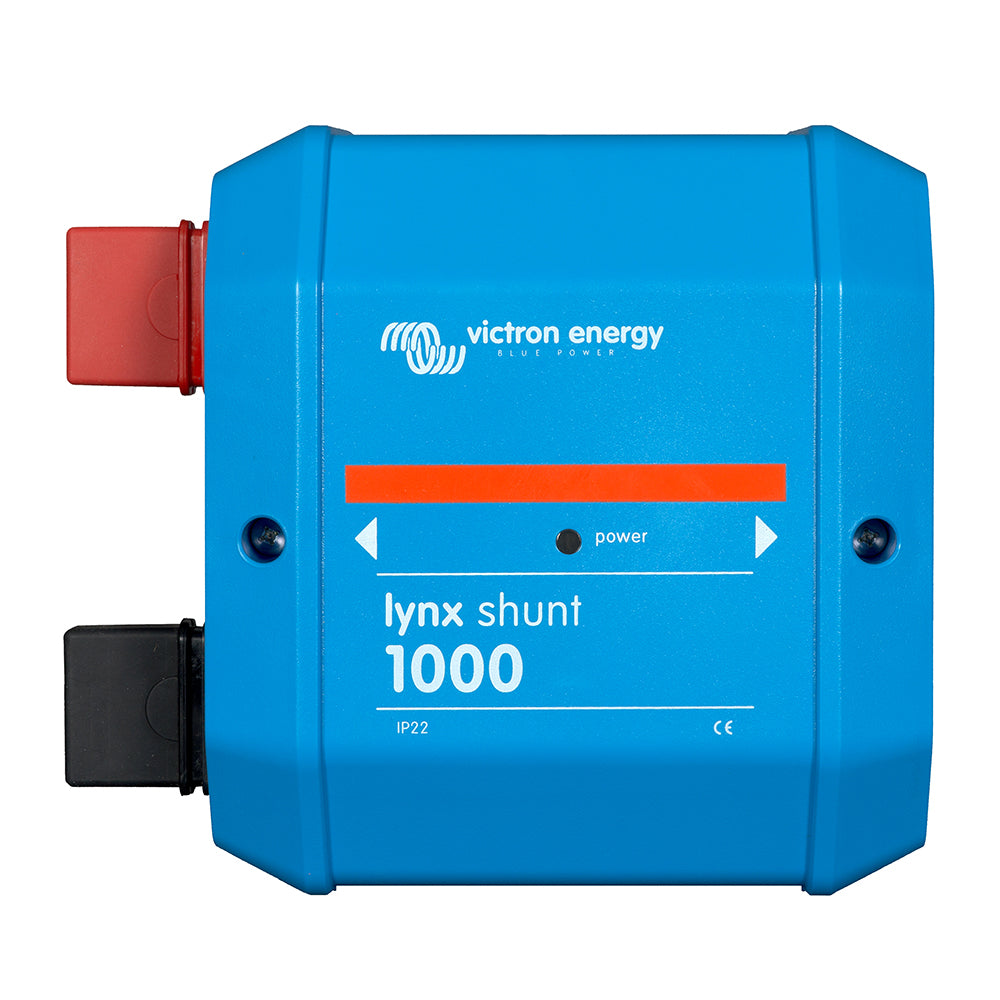

Lynx Shunt VE. Can
The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built in battery monitor accurately monitors the state of charge of your battery. The Lynx shunt contains a positive bus-bar with space to mount a CNN fuse and a negative bus-bar with a shunt. It also contains battery monitoring electronics. The Lynx shunt can send via the VE.CAN bus battery monitoring information to a CCGX or VGX or to a third party CANbus monitoring system, such as a NMEA2000. The CCGX, VGX or third party display acts as battery monitor display and is also used to set up the built-in battery monitor.
The Lynx shunt is available with a VE.Can connection.
Fuse CIP140325000 - Fuse CNN 325A/80V for Lynx shunt, or alternatively a CNN fuses by Littlefuse can be used.
Please contact your dealer for any returns, repairs or support issues related to this product.Can Lynx shunt VE.Can is a smart 1000A shunt with a fuse (not included) location, built-in battery monitor can accurately monitor your charging status.
SKU: NVN-82841
MPN: LYN040102100
UPC: 8719076022602
Technical specifications
| Brand | Victron Energy |
| Model | Victron Lynx Shunt VE. Can |
| SKU / MFR# | 82841 |
