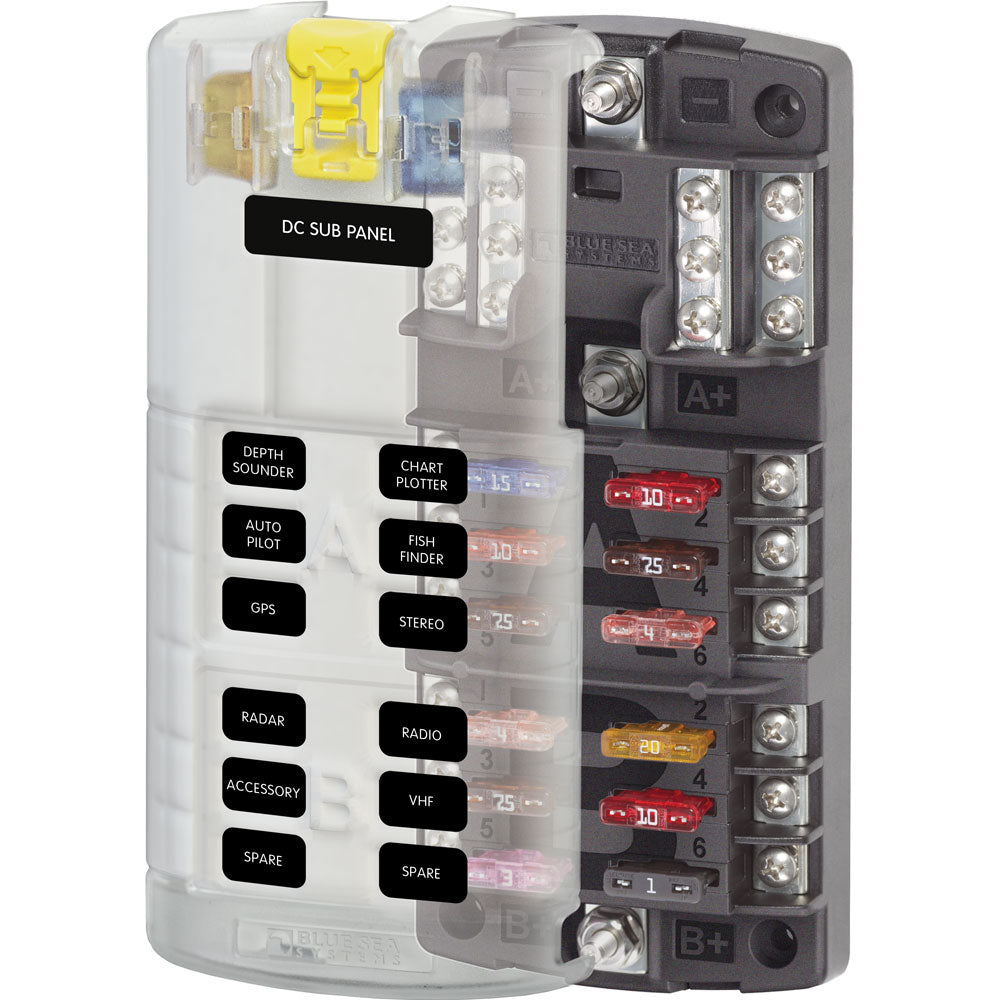

Blue Sea 5032 ST-Blade Split Bus Fuse Block

For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits. Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC and USCG insulation requirements.

Blue Sea 5032BSS Attributes

• Power Rating: 32 Volt/ 100 Ampere Total/ 30 Ampere Per Circuit
• Type: Split Bus
• Circuit Type: 12 Circuit Positions
• Fuse Type: ATO/ ATC Blade
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: No
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: Yes

Blue Sea 5032BSS Features & Benefits

• Tin-Plated Copper Buses And Fuse Clips
• Provides Two Isolated Groups Of Six ATO ® ATC ® Circuits
• One-Piece Stainless Flange Nuts Ensure Safe And Secure Connections
• Easy To Open, Push Button Latch For Easy Access To Fuses
• Screw Terminals For Securing Wires Accept Ring Terminals
• No Supplier Warranty

ST-Blade Split Bus Fuse Block

Features:

• Provides two isolated groups of six ATO/ATC circuits

• For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits

• Screw terminals for securing wires accept ring terminals

• One-piece stainless flange nuts ensure safe and secure connections

• Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements

• Easy to open, push button latch for easy access to fuses

• Tin-plated copper buses and fuse clips

• Fuses sold separately

Specifications:

• Circuits: 12

• Maximum Amperage: 100A per block, 30A per circuit

• Maximum Voltage: 32V DC

• Mounting: #8 Screw (M4)

• Negative Bus: #10-32 Stud

• Screw Terminal Type: #8-32 Screws with captive star lock washer

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea separate bus fuse box with grounding. This fuse box can be used when a switch and a 24-hour circuit need to be mixed in the same block. Provide two isolation groups of six ATO/ATC...
SKU: NVN-54778
MPN: 5032-BSS
UPC: 632085050320
