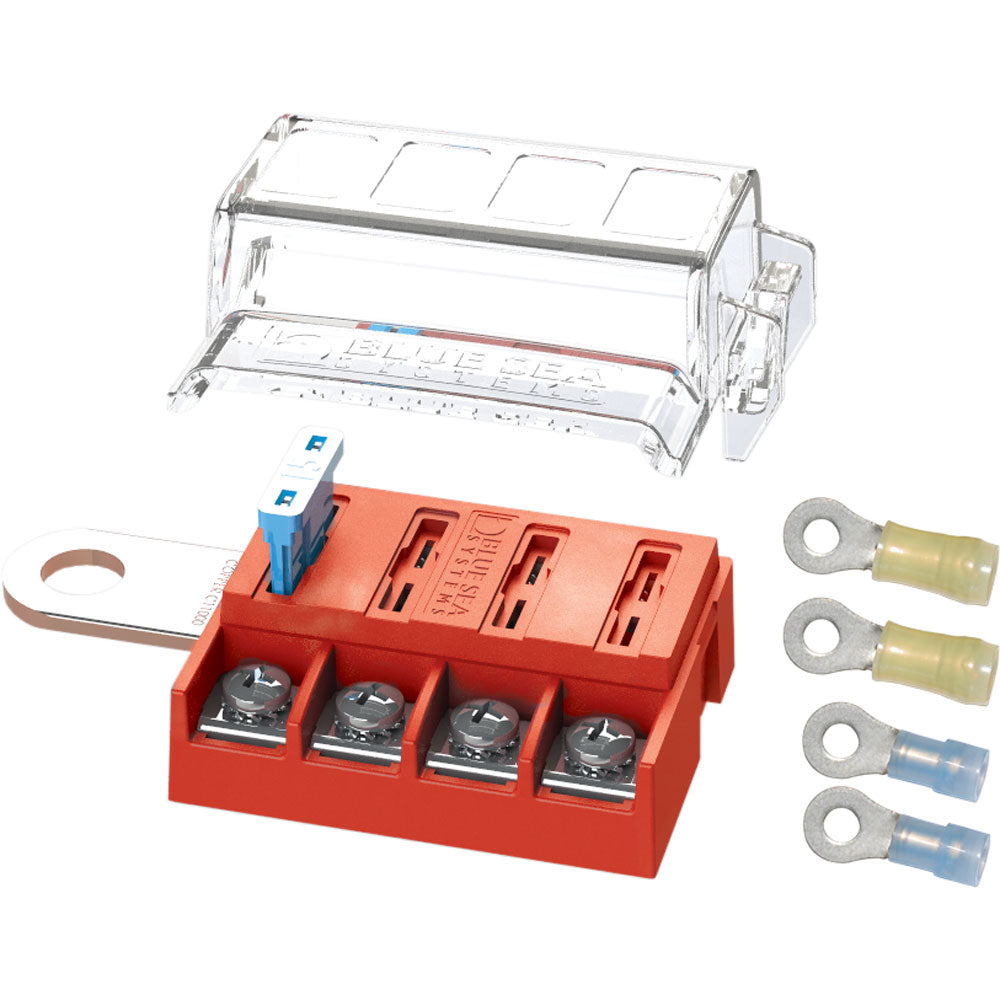

Blue Sea 5023 ST-Blade Battery Terminal Mount Fuse Block

ST-Blade Battery Terminal Mount Fuse Block

Features:

• Easy to install 4 ATO/ATC fused circuits

• Mounts on the battery terminal stud

• Screw terminals for securing wires

• Four Nylon insulated ring terminals included

• Insulating cover included

• Accepts Small Format Circuit Labels

• Includes 1 fuse

Specifications:

• Circuits: 4

• Maximum Amperage: 100A per block, 30A per circuit

• Maximum Voltage: 32V DC

• Mounting: Clearance for 3/8" [M10] stud

• Screw Terminal Type: #8-32 Screws with captive star lock washer

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems ST Blade 4-circuit battery terminal installation fuse box (5023). This product is very suitable for use in all marine applications. It will meet the needs of both parties...
SKU: NVN-54775
MPN: 5023-BSS
UPC: 632085050238
