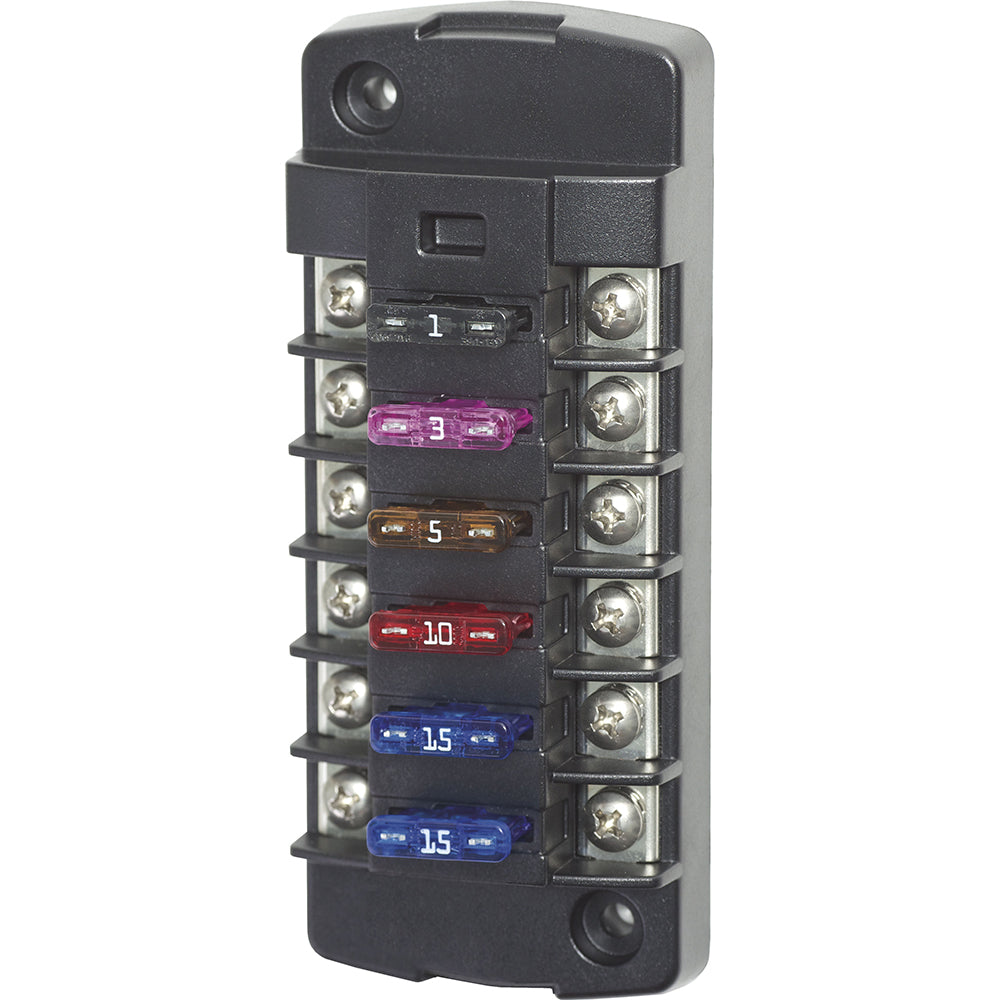

Blue Sea 5037 ST Blade Fuse Block w/o Cover - 6 Circuit Independent w/o Negative Bus

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 5037BSS Attributes

• Power Rating: 32 Volt
• Type: Corrosion Resistant
• Circuit Type: 6 Circuit Positions
• Fuse Type: ATO/ ATC Blade
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: No
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: Yes

Blue Sea 5037BSS Features & Benefits

• Corrosion Resistant, Tin-Plated Copper Fuse Clips Reduce Heat And Improve The Efficiency Of The Electrical System
• Accepts Ring Or Snap Fork Type Terminals
• Independent Source Fuse Block
• Can Be Used For 24 Hour Circuits And Switched Circuit In Same Block
• Screw Terminals For Securing Wires Accept Ring Terminals
• Clear Insulating Cover With Label Recesses And Storage For Two Fuses Satisfies ABYC/USCG Insulation Requirements
• Easy To Open Push Button Latch For Easy Access To Fuses
• No Supplier Warranty

Blue Sea 5037BSS Technical Bulletins

• Wiring-Diagram-5035_5037.pdf

ST Blade Fuse Block w/o Cover - 6 Circuit w/o Negative Bus
Part# 5037

• Can be used for 24-hour circuits

• Fuse blocks with covers include 20 write-on circuit labels

• Tin-plated copper buses and fuse clips

• Accepts ring or spade type terminals

• Accepts ATO® and ATC® fast acting blade fuses

• Fuses sold separately

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems ST blade fuse box with 6 independent circuits. Ideal companion fuse for electronic devices or switch panels that do not provide circuit protection...
SKU: NVN-42730
MPN: 5037
UPC: 632085050375
