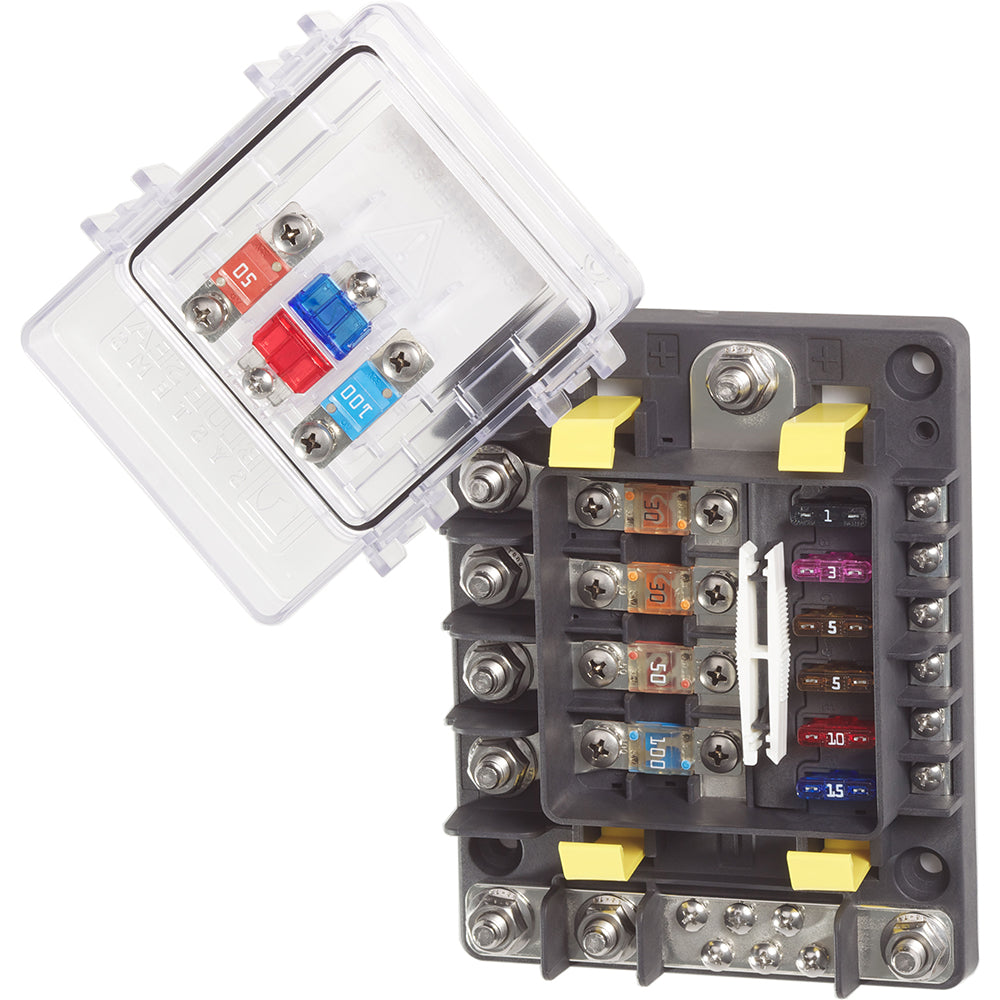

Blue Sea 7748 SafetyHub 150 Fuse Box

The SafetyHub 150 consolidates ignition protected, high amperage and 24 Hour circuit protection into one place near the battery while also providing circuit protection for the 360 Panel feed wire. The 360 Panel provides circuit protection for all medium amperage loads and the ST Blade Fuse Block protects the electronics, as these devices are switched on the device. This example minimizes panel space and consolidates circuit protection to only three places on the boat and achieves a critical safety advantage by ensuring all high amperage cables are protected.

Blue Sea 7748BSS Attributes

• Power Rating: 32 Volt/ 600 Ampere
• Type: Bilge Pumps, Electronics And Lights
• Circuit Type: Dome Light/ Electric Fan/ Electric Fuel Pump
• Fuse Type: AMI/ MIDI/ ATO/ ATC
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: No
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: No

Blue Sea 7748BSS Features & Benefits

• Accepts Four AMI® Or MIDI® Fuses For High-Amp Circuits Up To 200 Ampere
• Sealed Cover Protects Fuses From The Harsh Marine Environment And Satisfies ABYC Or USCG Insulation Requirements
• Negative Bus Provides Common Location For Negative Connection
• Circuit Identification Label With Write-On Capability
• Fuse Puller Easily Removes ATO® Or ATC® Fuses
• Cover Provides Storage Space For Two Spare ATO® Or ATC® And Two Spare AMI® Or MIDI® Fuses And Mounting Screws
• One-Piece Stainless Flange Nuts Ensure Safe And Secure Connections
• Limited 3 Year Warranty

SafetyHub 150 Fuse Block

The SafetyHub 150 is an ignition protected fuse block with screw termination. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates upt to ten fused circuits. It can be used for Main or Branch DC power distribution.

• Four 30A-200A MIDI/AMI fuses ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiers

• Six 1A-30A ATO/ATC fuses ideal for low-amp circuits including bilge pumps, electronics, and lights

• Sealed cover protects fuses from the harsh marine environment: IP66 rating - protected against powerful water jets

• Negative bus provides common location for negative collection

• Circuit identification label with write-on capability

• Fuse puller easily removes ATO/ATC fuses

• Cover provides storage space for two spare ATO/ATC fuses and two spare MIDI/AMI fuses

• NYPATCH coated MIDI/AMI fuse screws resist loosening over time

• Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats

• Fuses sold separately

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



  "It can be used for main or branch dc power distribution. Negative bus provides common location for negative collection. Fuse puller easily removes atoatc fuses. Box dimensions: 3\"h x 9\"w x 12\"l. Weight 2.0 lbs."
  SKU: NVN-40601
  MPN: 7748-BSS
  UPC: 632085077488
