Blue Sea 5502 Fuse Block Class T 225-400 Amp

The fuse system recommended by most inverter manufacturers for high speed response to short circuits.

Blue Sea 5502BSS Attributes

• Power Rating: 160 Volt
• Fuse Type: Class T
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: No
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: Yes

Blue Sea 5502BSS Features & Benefits

• Large 3/8 Inch To 16 Stud Terminals Accept Ring Terminals For Wire Up To 4/0 AWG
• Large Heat Dissipating Tin-Plated Copper Mounting Blocks
• For Use On Systems Up To 160 Volt DC
• Clear Insulating Cover, Satisfies ABYC And USCG Requirements
• No Supplier Warranty

Fuse Block Class T 225-400 AMP
Part #: 5502

Features:

• Maximum Voltage: 160 Volts DC

• Maximum Amperage: 400 Amperes DC

• Maximum Torque: 190 in-lb (21.47 Nm) max.

• Terminal Stud Size: 3/8"-16 (M10)

• Mounting Holes: Accept 1/4" (M6) Screw

• Maximum Cable Size 4/0 AWG

• Fuse Mounting Blocks: Tin-Plated Copper

• Class T Fuses Available: 110-400 Amperes DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

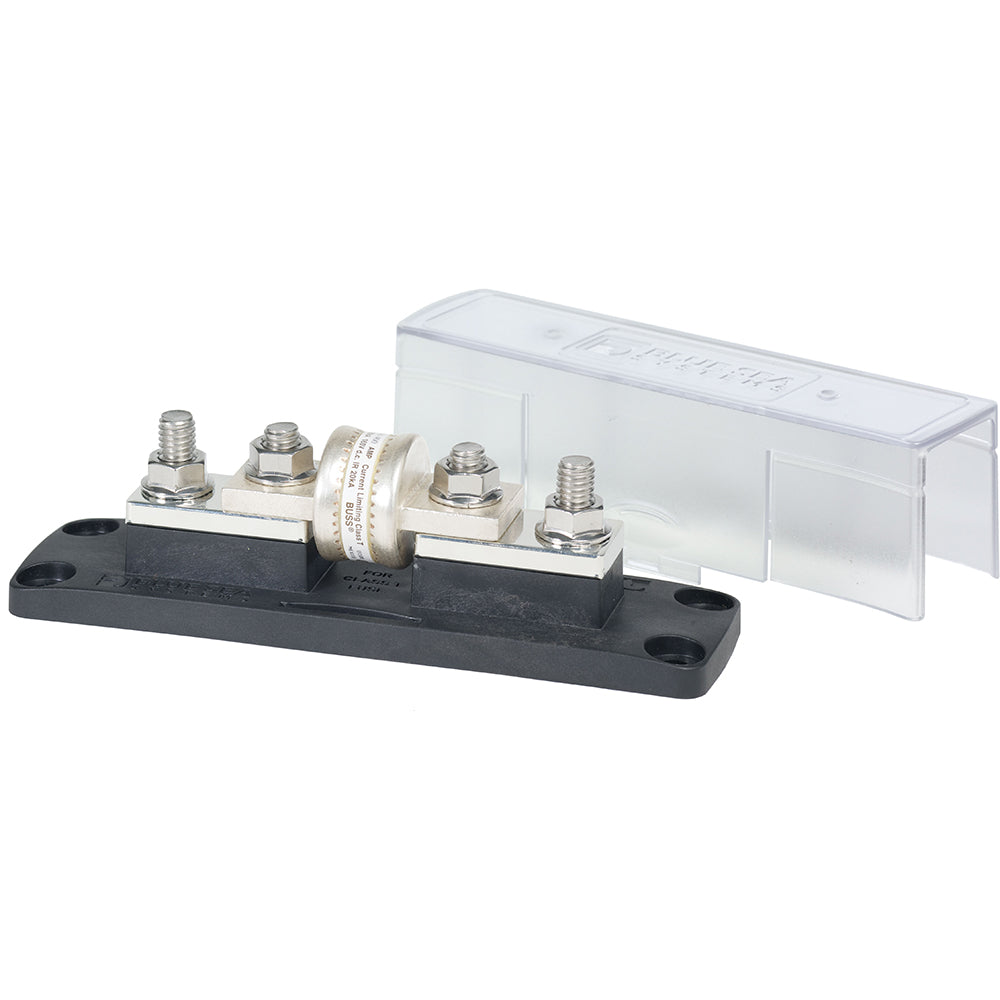

"This Blue Sea Systems Fuse Block with Insulating Cover is recommended for high-speed circuit protection. It can be used for inverters or other similar electronic equipment for systems up to 160 Volts DC. This class-T fuse box measures 7.0 inch x 2.3 inch. It also has a maximum amperage of 400A. In addition, it features large heat dissipating tin-plated copper mounting blocks and stainless-steel hardware. Included is a clear insulation cover that satisfies ABYC\/USCG requirements. This cover features breakouts that allow cable access from virtually all directions. Another feature of this 225 to 400a Blue Sea fuse block is the large 3\/8 inch-16 stud terminals that accept ring terminals for wire up to 4\/0 AWG. There are two # 8 accessory terminals located on each end."
SKU: NVN-34899
MPN: 5502-BSS
UPC: 632085055028
