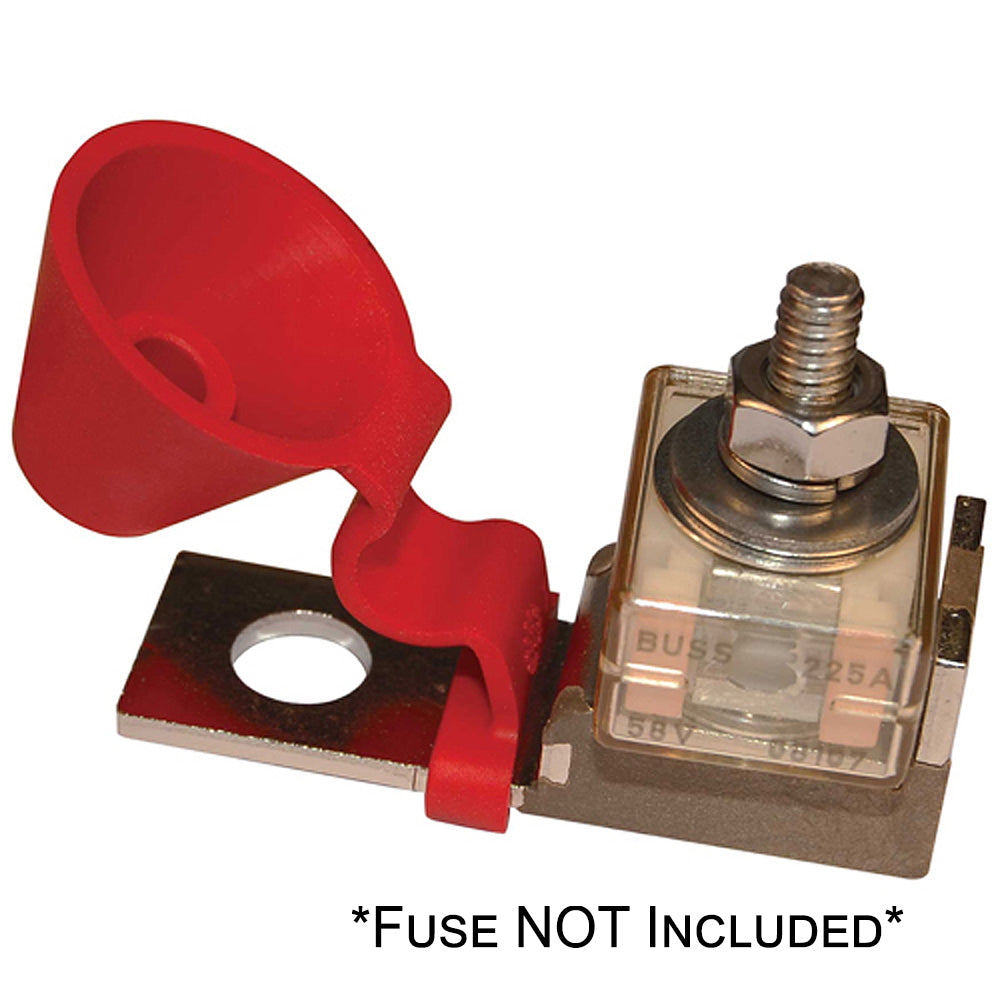

Blue Sea 5191 Terminal Fuse Block 30-300AMP

Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection. Isolated stud design uses standard M8 hardware and permits stacking of terminals. Insulating cap prevents accidental shorts.

Blue Sea 5191BSS Attributes

• Power Rating: 58 Volt/ 300 Ampere
• Type: Water Resistant
• Circuit Type: DC Main Inverter, Windlass And Bow Thruster Circuit Protection
• Fuse Type: MRBF Terminal
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: No
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: Yes

Blue Sea 5191BSS Features & Benefits

• Provides High Current Protection In Tight Space Constraints
• Accepts 5/16 Inch Ring Terminals
• Mounts On 3/8 Inch Terminal Studs
• Ignition Protected
• No Supplier Warranty

Terminal Fuse Black

• New isolated stud design uses standard 5/16" hardware and permits stacking of terminals

• Compact, high-amp fuse-Appropriate for DC Main, inverter, windlass, and bow thruster circuit protection

• Provides high current protection in tight space constraints

• Weatherproof-suitable for small open-cockpit boats and other harsh environments

• Insulating cap prevents accidental shorts

• Use 5/16" or 3/8" ring terminal

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

A simple and economical solution that meets ABYC 7 "circuit protection rules. Installed on 3/8" battery terminal, battery switch or busbar terminal for terminal fuse p/n...
SKU: NVN-32561
MPN: 5191-BSS
UPC: 632085051914
