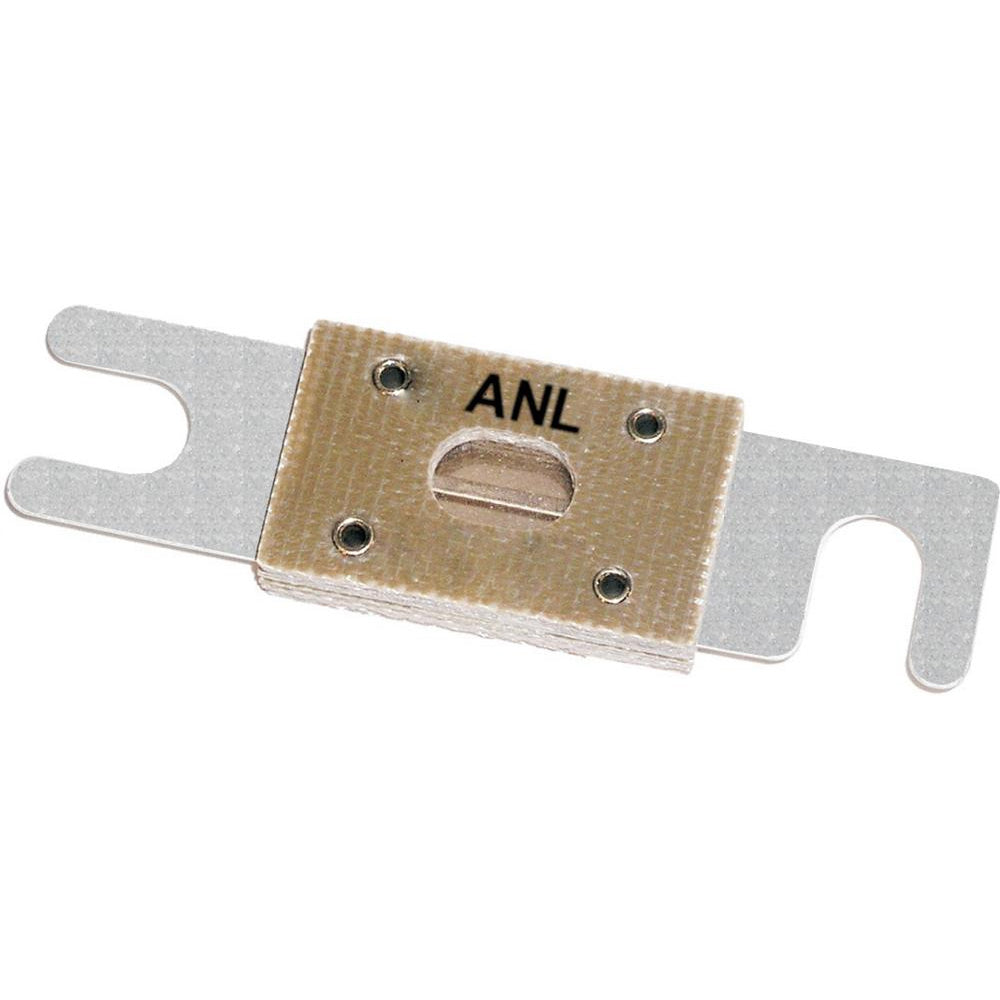

Blue Sea 5164 35A ANL Fuse

All of the company’s products are designed to easily integrate into simple or comprehensive electrical systems. The world’s leading RV manufacturers are recognizing the requirement for quality electrical systems and are specifying our products as original equipment.

Blue Sea 5164BSS Attributes

• Type: Bolt-On
• Industry Classification: ANL
• Ampere Rating (A): 35 Amp
• Quantity: Single
• Slow Blow: No

Blue Sea 5164BSS Features & Benefits

• Silver-Plated Connector Blades For Corrosion Resistance
• Ignition Protected Conforming To SAE J1171 Safe For Installation Aboard Gasoline Powered Boats 35 To 500 Ampere Only
• Visible Indication Of Blown Condition
• 6,000 Ampere Interrupt Capacity Satisfies ABYC Requirements For Main DC Circuit Protection On Large Battery Banks
• For Use With Blue Sea Systems' ANL Fuse Blocks
• No Supplier Warranty

Blue Sea 5164BSS Technical Bulletins

• Full-scale-fuse-compare.pdf

5164
ANL Fuse

35A

• Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats

• Silver-plated connector blades for corrosion resistance

• Visible indication of blown condition

• 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks

• For use with Blue Sea Systems' ANL Fuse Blocks

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Fuse, ANL, 35 Amp, MFG#5164, ANL stud mounting fuse, 6000 Amp interrupt, 32 VDC max, 3.185" L x .89"W. Suitable for 5004 and 5005 fuse boxes.
SKU: NVN-20454
MPN: 5164-BSS
UPC: 632085051648
