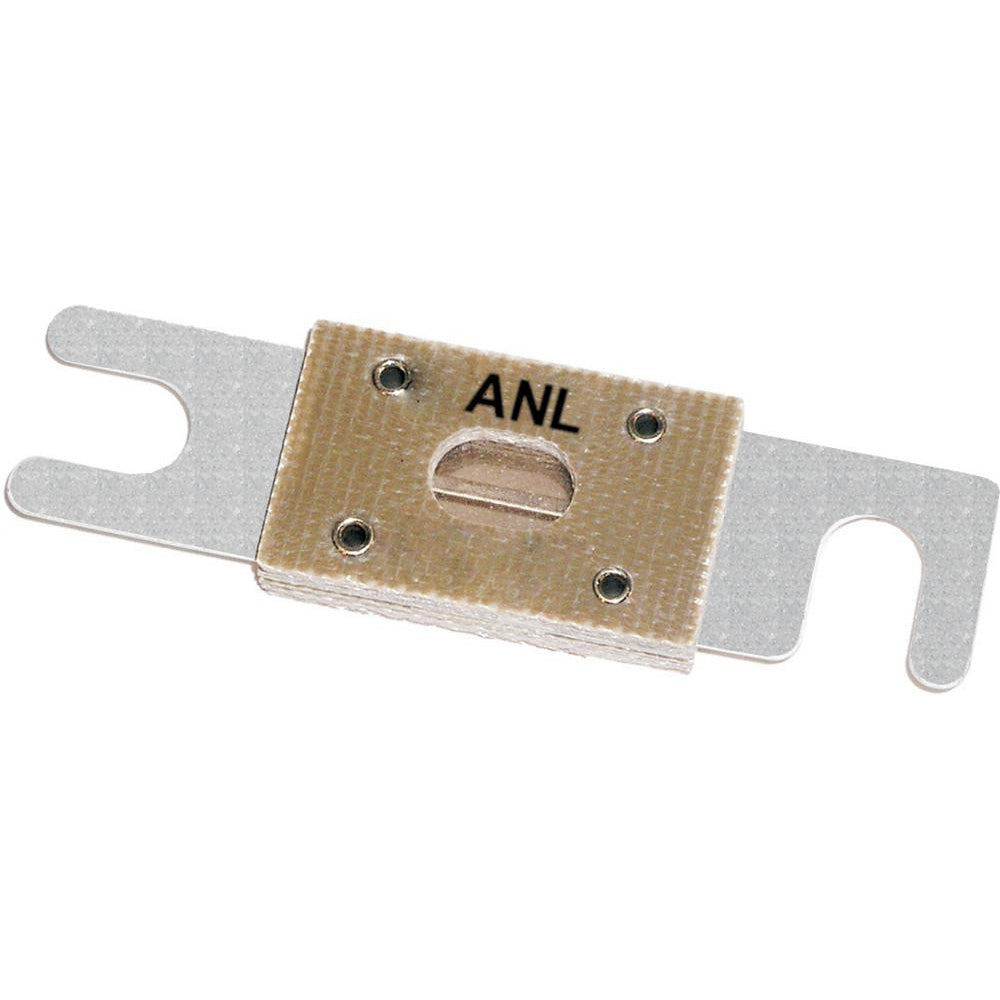

Blue Sea 5129 200A ANL Fuse

When excessive current flows in an electrical circuit, wire insulation can melt and possibly start a fire. Circuit breakers and fuses protect the wire in electrical circuits. Blue Sea Systems' selection of circuit breakers, fuses, fuse holders and fuse blocks offer a range of choices for main and branch circuit protection. To help in the selection process, Blue Sea Systems developed the Circuit Wizard to determine the correct size wire and fuse or circuit breaker for the application.

Blue Sea 5129BSS Attributes

• Type: Bolt-On Fuse
• Industry Classification: ANL
• Ampere Rating (A): 200 Amp
• Quantity: Single

Blue Sea 5129BSS Features & Benefits

• Silver Plated Connector Blades For Corrosion Resistance
• Visible Indication Of Blown Condition
• Ignition Protected Safe For Installation
• Offering Quality Products That Are Engineered For The Harsh Marine Environment
• No Supplier Warranty

5129
ANL Fuse

200A

• Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats

• Silver-plated connector blades for corrosion resistance

• Visible indication of blown condition

• 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks

• For use with Blue Sea Systems' ANL Fuse Blocks

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Anl fuse. 200a. Ignition protection (in accordance with SAE J1171)-can be safely installed on gasoline-powered boats. Silver-plated connector blades have corrosion resistance. ...
SKU: NVN-20443
MPN: 5129-BSS
UPC: 632085051297
