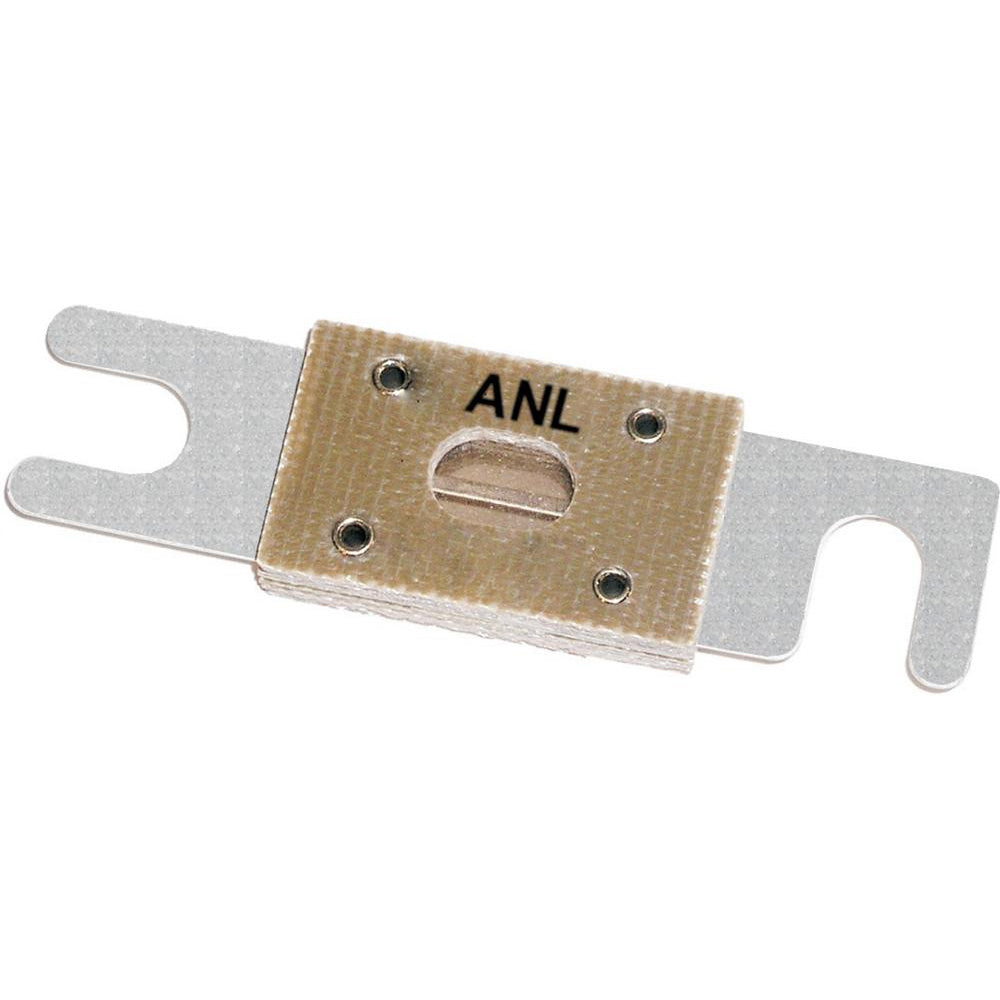

Blue Sea 5122 50A ANL Fuse

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 5122BSS Attributes

• Type: Bolt-On
• Industry Classification: ANL
• Ampere Rating (A): 50 Amp
• Quantity: Single
• Slow Blow: No

Blue Sea 5122BSS Features & Benefits

• Ignition Protected - Safe For Installation Aboard Gasoline Powered Boats
• Silver-Plated Connector Blades For Corrosion Resistance
• Visible Indication Of Blown Condition
• 6,000 Ampere Interrupt Capacity Satisfies ABYC Requirements For Main DC Circuit Protection On Large Battery Banks
• For Use With Blue Sea Systems' ANL Fuse Blocks
• No Supplier Warranty

Blue Sea 5122BSS Technical Bulletins

• ANL_Fuse.pdf

5122
ANL Fuse

50A

• Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats

• Silver-plated connector blades for corrosion resistance

• Visible indication of blown condition

• 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks

• For use with Blue Sea Systems' ANL Fuse Blocks

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Anl fuse. 50a. Ignition protection (in accordance with SAE J1171)-can be safely installed on gasoline-powered boats. Silver-plated connector blades have corrosion resistance. ...
SKU: NVN-20436
MPN: 5122-BSS
UPC: 632085051228
