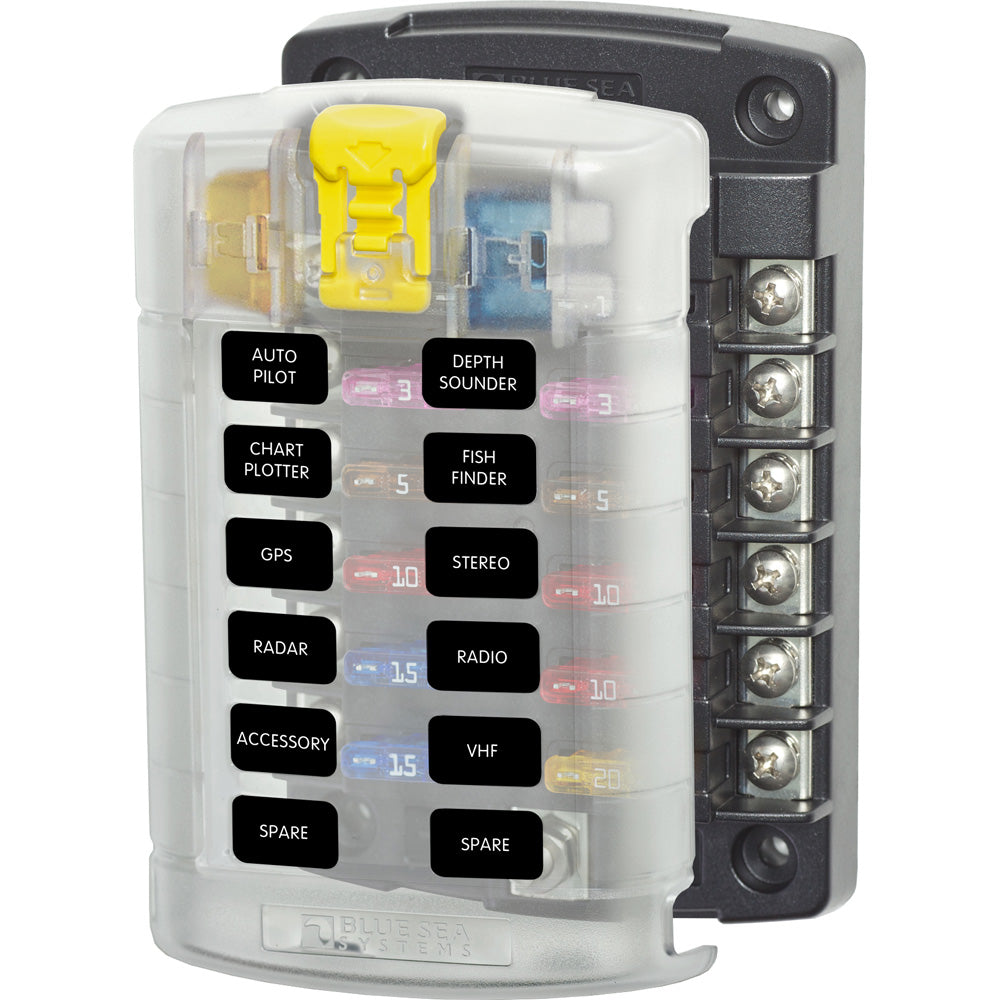

Blue Sea 5029 ST Blade Fuse Block w/Cover - 12 Circuit w/o Negative Bus

Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification.

Blue Sea 5029BSS Attributes

• Power Rating: 32 Volt/ 100 Ampere Per Block/ 30 Ampere Per Circuit
• Type: In-Line
• Circuit Type: 12 Circuit Positions
• Fuse Type: ATO/ ATC Blade
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: No
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: No

Blue Sea 5029BSS Features & Benefits

• Fuse Blocks With Covers Include 20 Write-On Circuit Labels
• Can Be Used For 24-Hour Circuits
• Accepts Ring Or Snap Fork Type Terminals
• Accepts ATO ® And ATC ® Fast Acting Blade Fuses
• Tin-Plated Copper Buses And Fuse Clips
• No Supplier Warranty

Blue Sea 5029BSS Technical Bulletins

• Wiring-Diagram-5029_5034.pdf

5029
ST Blade Fuse Block w/ Cover - 12 Circuit w/out Negative Bus

• Clear insulating cover with label recesses accept Small Format Labels

• Cover Satisfies ABYC/USCG requirements for insulation

• Tin-plated copper buses and fuse clips give 30 Amperes rating per circuit

• Accepts ATO and ATC fast acting blade fuses

• 20 write-on circuit labels included

• Tin-plated copper buses and fuse clips give 30 Amperes rating per circuit

• Accepts ATO and ATC fast acting blade fuses

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Through Blue Sea Systems, we use the most powerful and long-lasting resources available for development, which can provide you with many years of...
SKU: NVN-20430
MPN: 5029-BSS
UPC: 632085050290
