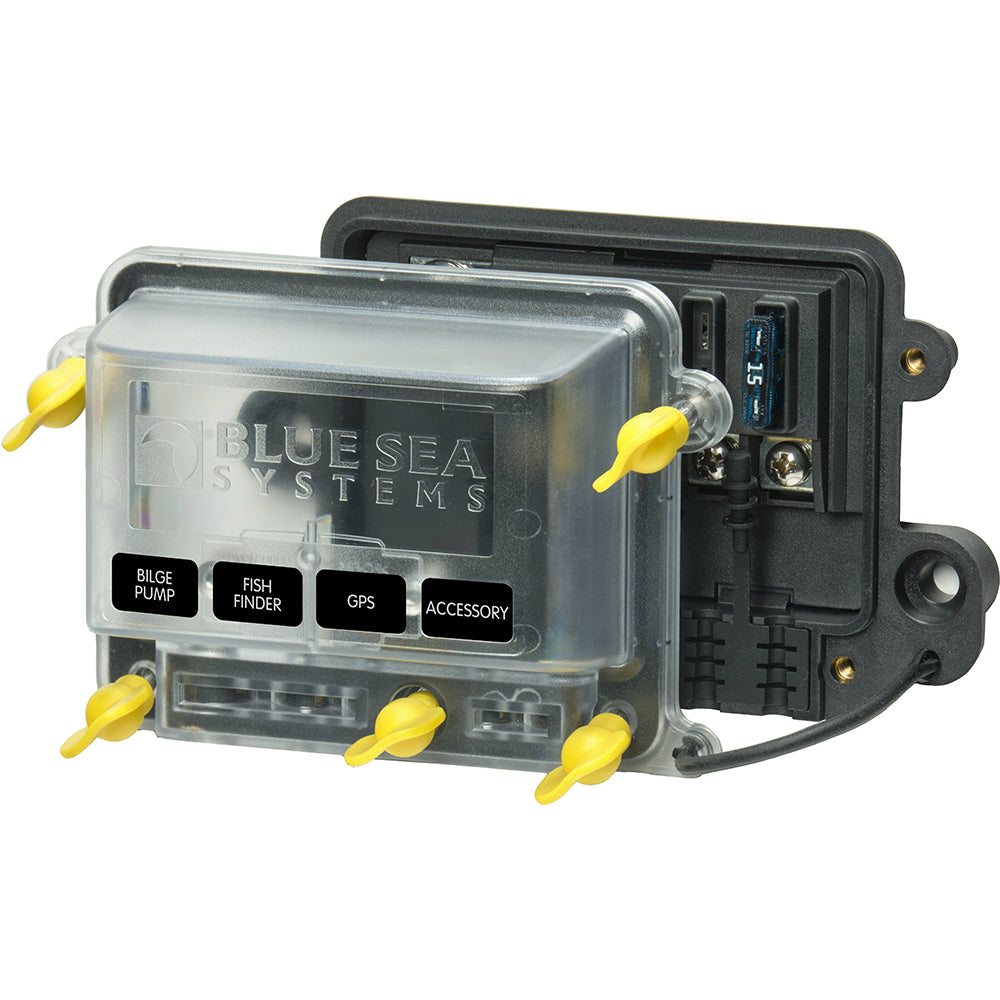

Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block w/Cover

5056100 - Water Resistant ST-Blade Fuse Block with Cover

This Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint.  Now with wing screws for toolless access.

Features:

• Water-resistant design with a standard ring or spade-type terminals
• Allows for simple wiring with standard tools
• Accepts a wide range of wire sizes
• Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required
• Accepts ATO and ATC fast acting blade fuses
• Accepts ATO/ATC-Style Low Profile Circuit Breakers
• Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire
• 5056100 meets ABYC/USCG insulation requirements
• Tin-plated copper busses and fuse clips
• Includes four write-on circuit labels
• Spare fuse and fastener storage in cover
• Wing screws designed for tool-free installation of cover to meet ABYC compliance

Technical Specifications:

• Cover - yes
  • Maximum Voltage - 32V DC
  • Bus Material - Tin-plated Copper
  • Mounting Holes - Accepts 1/4" (6mm) screws
  • Terminal Screws - 4 x # 8-32 with captive star lock washer
  • Wire Size - Input - (1) 8 AWG to 4 AWG
  • Wire Size - Load - (4) 16 AWG to 10 AWG

In the Box:

• 5056100 Busbar
• Instruction Manual

*Sold as an Individual

SKU: NVN-94754
MPN: 5056100
UPC:
