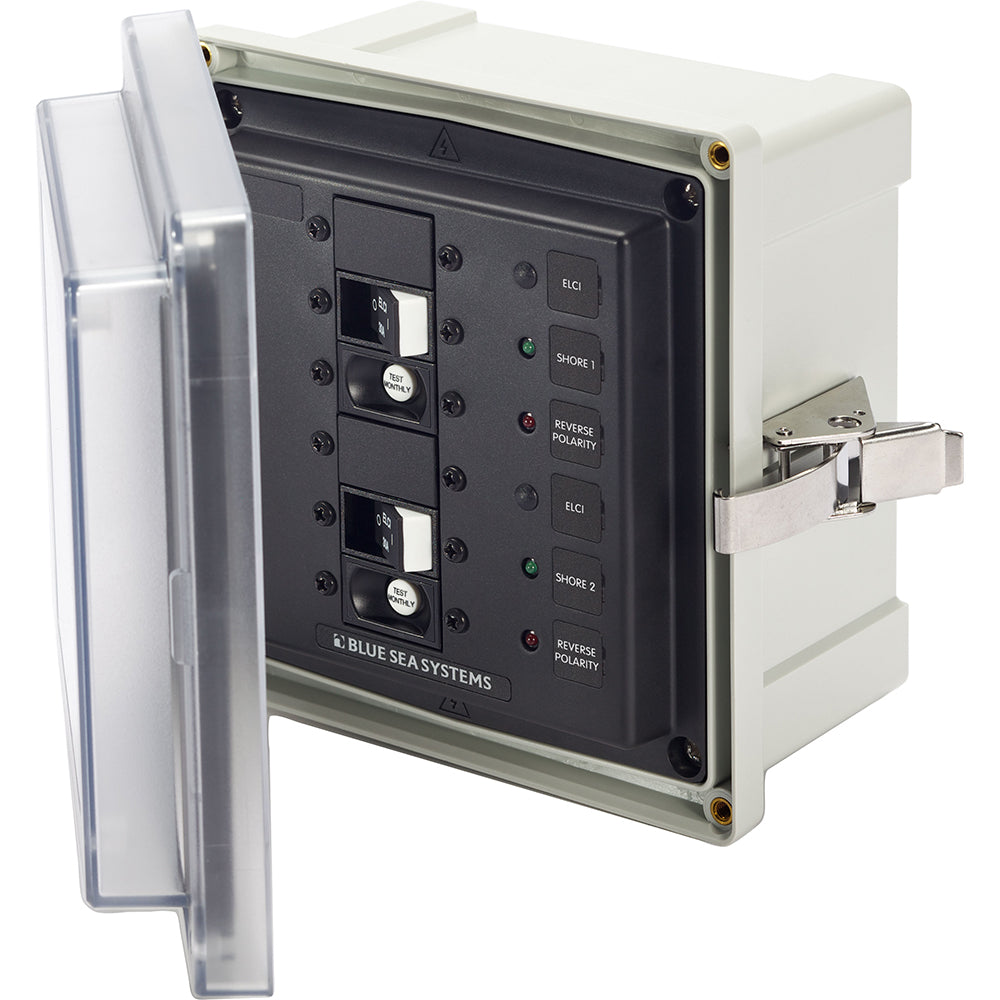

Blue Sea 3117 SMS Surface Mount System Panel Enclosure - 2 x 120V AC / 30A ELCI Main

SMS Surface Mount System Panel Enclosure - 2 x 120V AC / 30A ELCI Main

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Features:

• Includes one Dual 120V AC / 30A ELCI Main
• Glass filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Stainless steel mounting hardware included
• Includes waterproof glands
• LED lights for back lighting and ON indication

Specifications:

• Minimum Operating Temperature: -40°C
• Maximum Operating Temperature: 85°C
• Cover Screws & Hardware: 10-32 Stainless Steel
• Enclosure Size: 6.0" x 6.0" x 4.0"
• Exterior Overall Dimensions: 7.6" x 7.4" x 4.7"
• Mounting Hardware: 1/4" Diameter, #12 (6mm)
• Weight: 6.5lbs

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

By adding ELCI equipment leakage circuit breaker (ELCI) panels to protect passengers and swimmers, not only can protect everyone on the ship, but also the people around.
SKU: NVN-64686
MPN: 3117
UPC: 632085031176
