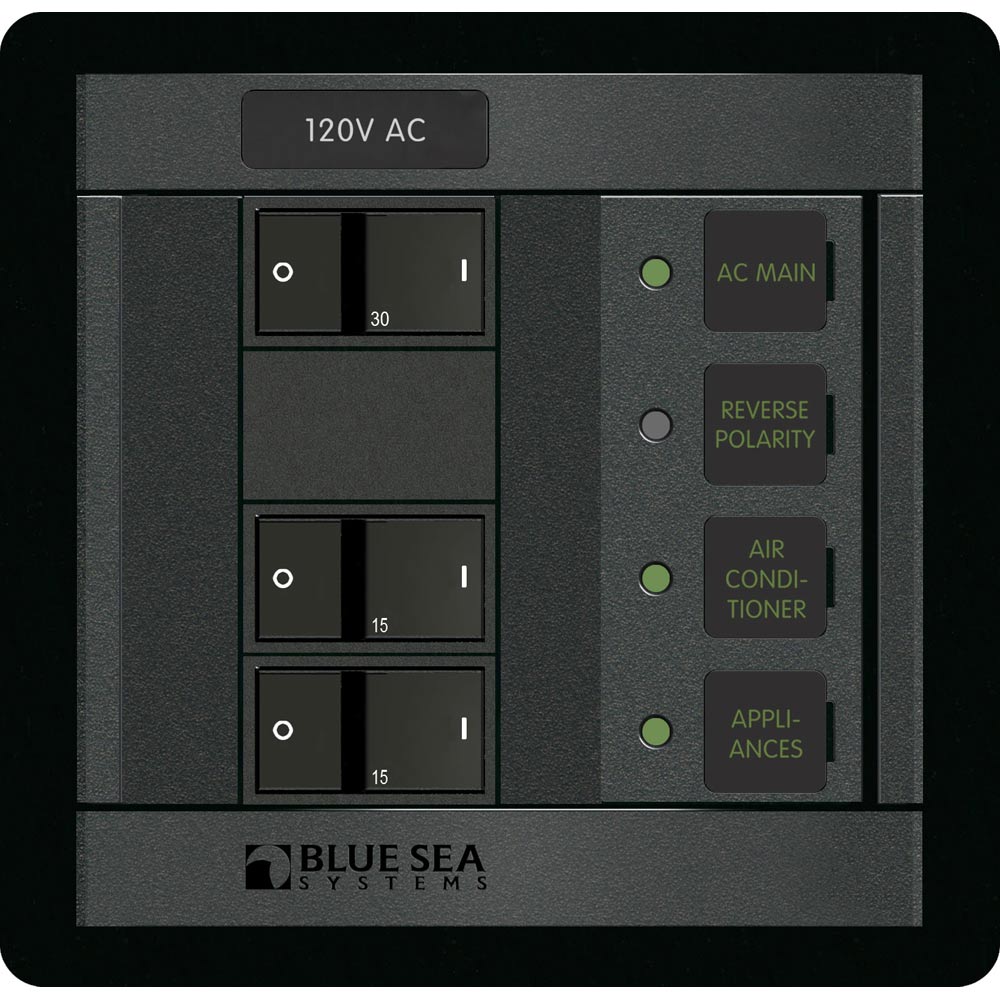

Blue Sea 1214 120V AC Main + 2 Positions

Quality Products engineered for the harsh marine environment and built to last. Over 1,000 electrical products are designed to work together as a fully integrated system.

Blue Sea 1214BSS Attributes

• Recommended Use: AC Main Circuit Breaker Panel
• Voltage Rating: 120 Volt
• Power Rating: 30 Ampere
• Receptacle Type: Single Pole 15 Amps (Branch)/ A-Series Flat Rocker Circuit Breaker - Double Pole 30 Amps (Main)
• Number Of Connections: 2
• GFCI/ Overload Protection: No
• Length (IN): 3 Inch
• Width (IN): 4.88 Inch
• Height (IN): 4-3/4 Inch
• Color: Black
• UL Listed: No
• With Flip Cover: No

Blue Sea 1214BSS Features & Benefits

• All Circuit Label Positions Are Backlit
• ON Indicating LEDs Installed In All Circuit Positions
• Features 4206—Square Format Label Set
• 360 Panel System
• No Supplier Warranty

Blue Sea 1214BSS Technical Bulletins

• 990343760.pdf

120 Volt AC Main + 2 Positions

Features:

• All circuit label positions are backlit

• "ON" indicating LEDs installed in all circuit positions

• Includes 4206-Square Format Label Set

Specifications:

• Positions: 2

• Nominal Voltage: 120V AC

• Height: 4.75" (120.65mm)

• Width: 4.88" (123.95mm)

• Depth: 3.00" (76.2mm)

• Weight: 1.58lb (0.72kg)

Includes:
(2) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL]
(1) - 7414 - A-Series Flat Rocker Circuit Breaker - Double Pole 30A (Main)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The 360 ​​series AC power distribution panel MFG 1214 120 VAC consists of a 30 Amp main power supply and two 15 A branch flat door rocker switch circuit breakers, with available power-on power and reverse power.
SKU: NVN-57234
MPN: 1214
UPC: 632085012144
