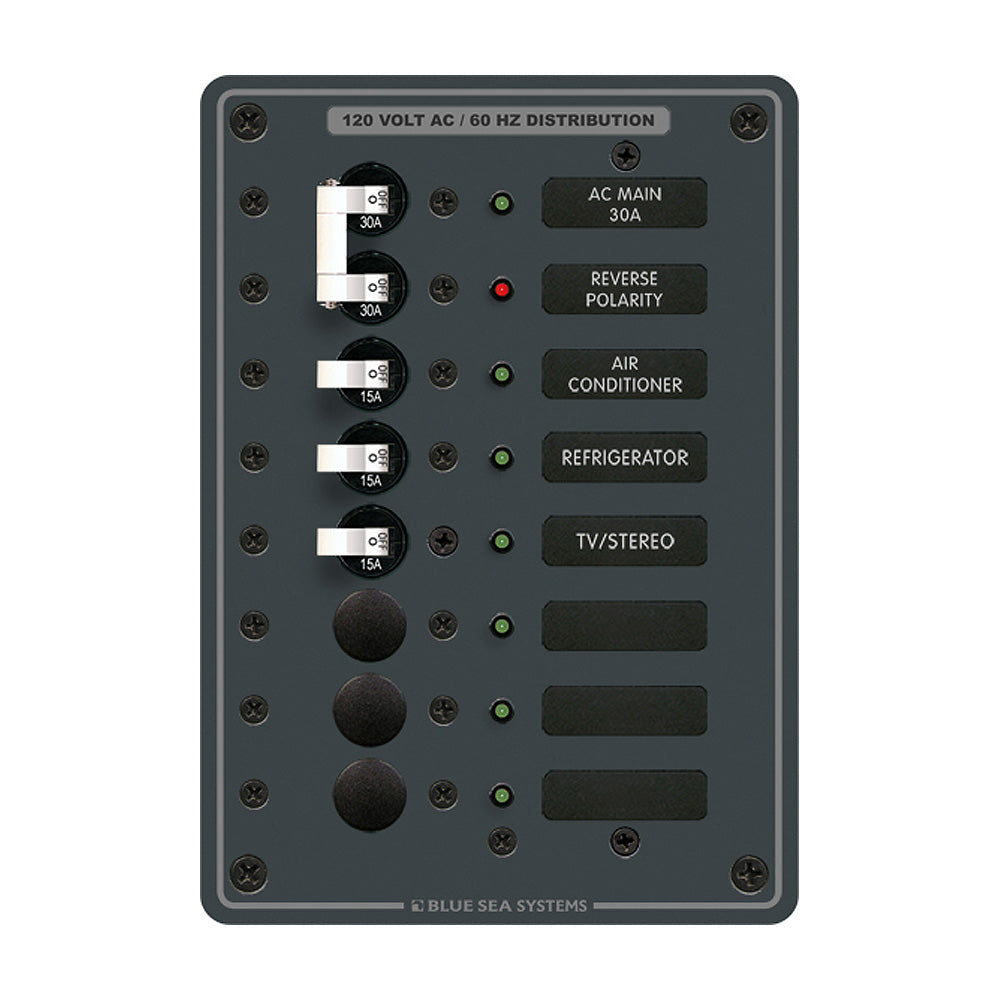

Blue Sea 8027 AC Main +6 Position Breaker Panel - White Switches

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 8027BSS Attributes

• Recommended Use: AC Circuit Breaker Panel
• Voltage Rating: 120 Volt
• Receptacle Type: Single Pole 15 Amps (Branch)/ A-Series White Toggle Circuit Breaker - Double Pole 30 Amp
• Number Of Connections: 6
• Length (IN): 3 Inch
• Width (IN): 5-1/4 Inch
• Height (IN): 7-1/2 Inch
• Color: Black
• UL Listed: No
• With Flip Cover: No

Blue Sea 8027BSS Features & Benefits

• Red Reverse Polarity Indicating LED
• All Hot, Neutral And Safety Ground Buses Installed, Fully Pre-Wired
• All Circuit Label Positions Are Backlit On Standard Panels - No Kit Required
• ON Indicating LEDs Installed In All Circuit Positions
• No Supplier Warranty

Blue Sea 8027BSS Installation Instructions

• 9575.pdf

Blue Sea 8027BSS Technical Bulletins

• 9559.pdf
• 9559.pdf

8027 AC Main +6 Position Breaker Panel - White Switches

Features:

• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

Specifications:

• Positions: 6
• Nominal Voltage: 120v AC
• Height: 7.5"
• Width: 5.25"

Included:

• (1) 8031 Basic AC Panel Label Set - 30 Labels
• (7) 8034 LED - 120v AC Green
• (1) 8066 LED - 120v AC Red
• (3) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch)
• (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems' traditional communication main panel (8027) with 6 positions. This product is very suitable for use in all marine applications. It will meet the needs of two cruise ships...
SKU: NVN-19049
MPN: 8027-BSS
UPC: 632085080273
