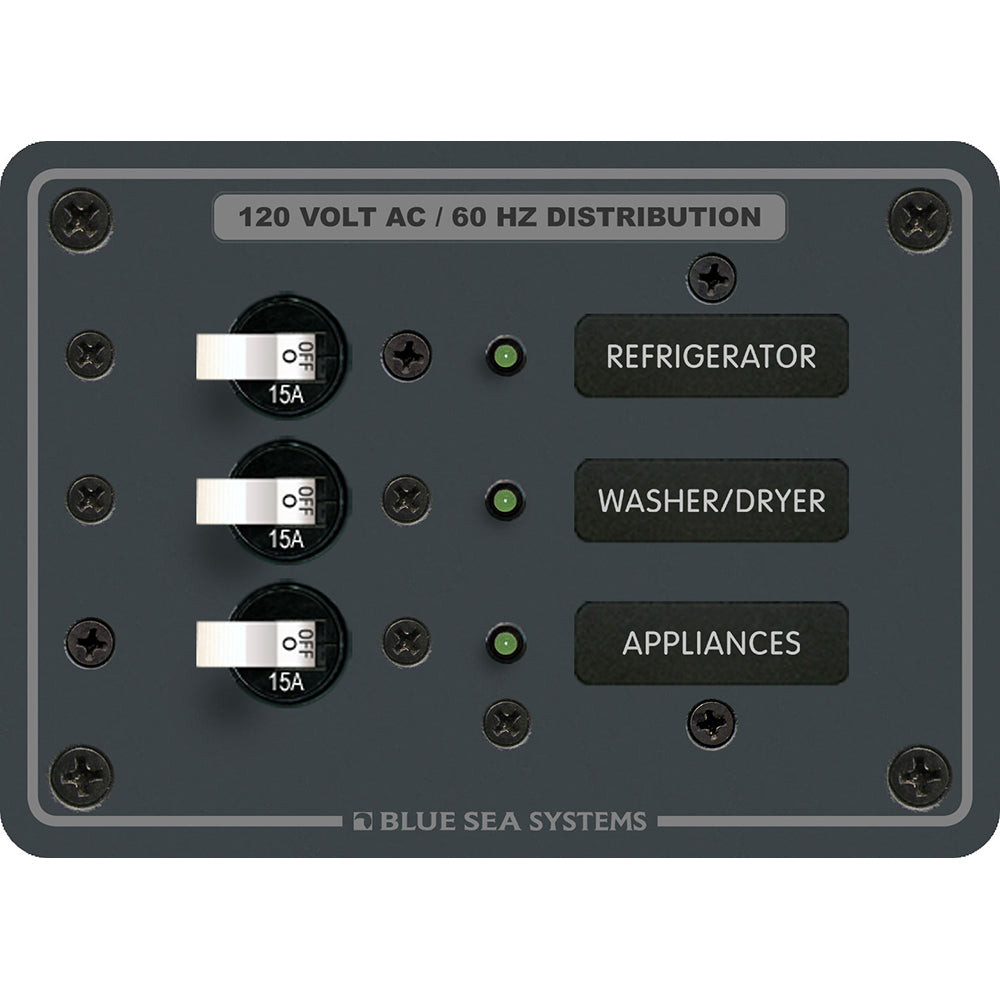

Blue Sea 8058 AC 3 Position Toggle Circuit Breaker Panel - White Switches

All of the company’s products are designed to easily integrate into simple or comprehensive electrical systems. The world’s leading RV manufacturers are recognizing the requirement for quality electrical systems and are specifying our products as original equipment.

Blue Sea 8058BSS Attributes

• Recommended Use: AC Branch Circuit Breaker Panel
• Voltage Rating: 120 Volt
• Power Rating: 100 Amp
• Receptacle Type: Single Pole 15 Amps/ Basic AC Panel Label Set - 30 Labels/ LED - 120 Volt AC Green
• Number Of Connections: 3
• GFCI/ Overload Protection: No
• Length (IN): 5-1/4 Inch
• Width (IN): 3-3/4 Inch
• Height (IN): 2-1/2 Inch
• Color: Black
• UL Listed: No
• With Flip Cover: No

Blue Sea 8058BSS Features & Benefits

• All Hot, Neutral, And Safety Ground Buses Installed, Fully Pre-Wired
• Circuit Label Positions Are Backlit On Standard Panels
• ON Indicating LEDs Installed In All Circuit Positions
• Maximum Panel Amperage 100 Amperes
• No Supplier Warranty

Blue Sea 8058BSS Installation Instructions

• 9582-009.pdf

Blue Sea 8058BSS Technical Bulletins

• 9559.pdf
• 9559.pdf

8058 AC 3 Position Toggle Circuit Breaker Panel - White Switches

Features:

• All hot, neutral, and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit posistions
• Maximum panel amperage - 100 Amperes

Specifications:

• Positions: 3
• Nominal Voltage: 120v AC
• Maximum Amperage: 100A
• Height: 3.75"
• Width: 5.25"

Included:

• (3) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
• (1) 8031 Basic AC Panel Label Set - 30 Labels
• (3) 8034 LED - 120V AV Green

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

"AC Branch panels distribute current from a high amperage input into lower amperage circuits. Styled to match existing panels, the traditional metal panels are equally suited for use as extensions to existing panels or as full replacements. All panels are pre-wired and include LEDs in all positions and label backlighting. Marine grade aluminum frame securely holds fixed panel components and is chemically treated to resist corrosion. Includes 8031 label set and 3 15A breakers With white toggles. Max 100 amps. Product quality is managed in a manner consistent with international standards. Quality products engineered for the harsh marine environment."
SKU: NVN-19047
MPN: 8058-BSS
UPC: 632085080587
