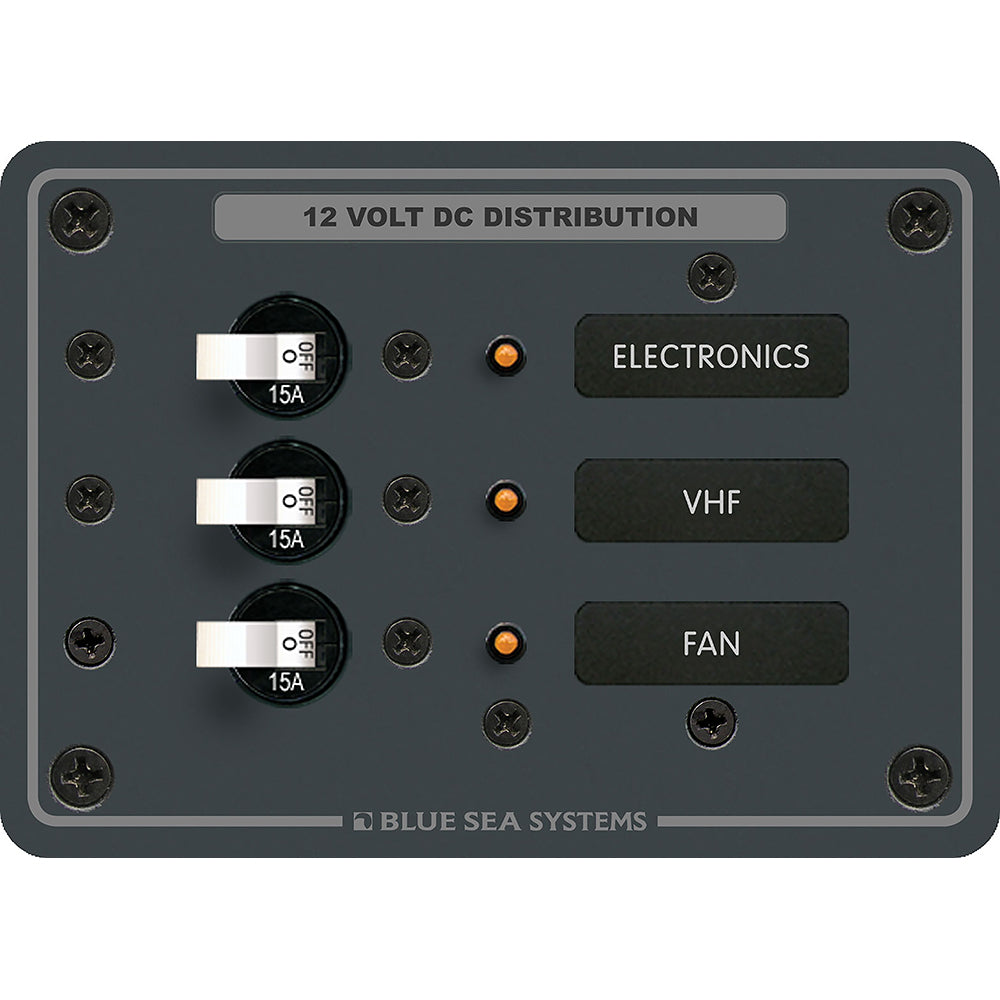

Blue Sea 8025 DC 3 Position Breaker Panel - White Switches

8025 DC 3 Position Breaker Panel - White Switches

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

Specifications:

• Positions: 3
• Nominal Voltage: 12v / 24v DC
• Maximum Amperage: 100A
• Height: 3.75"
• Width: 5.25"

Included:

• (3) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
• (1) 8030 Basic DC Panel Label Set - 30 Labels

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The design of the Blue Sea Systems 3-position toggle DC circuit breaker panel makes it easy to add three pre-wired circuit breakers to any 12 volt system. PN 8025.
SKU: NVN-19042
MPN: 8025-BSS
UPC: 632085080259
