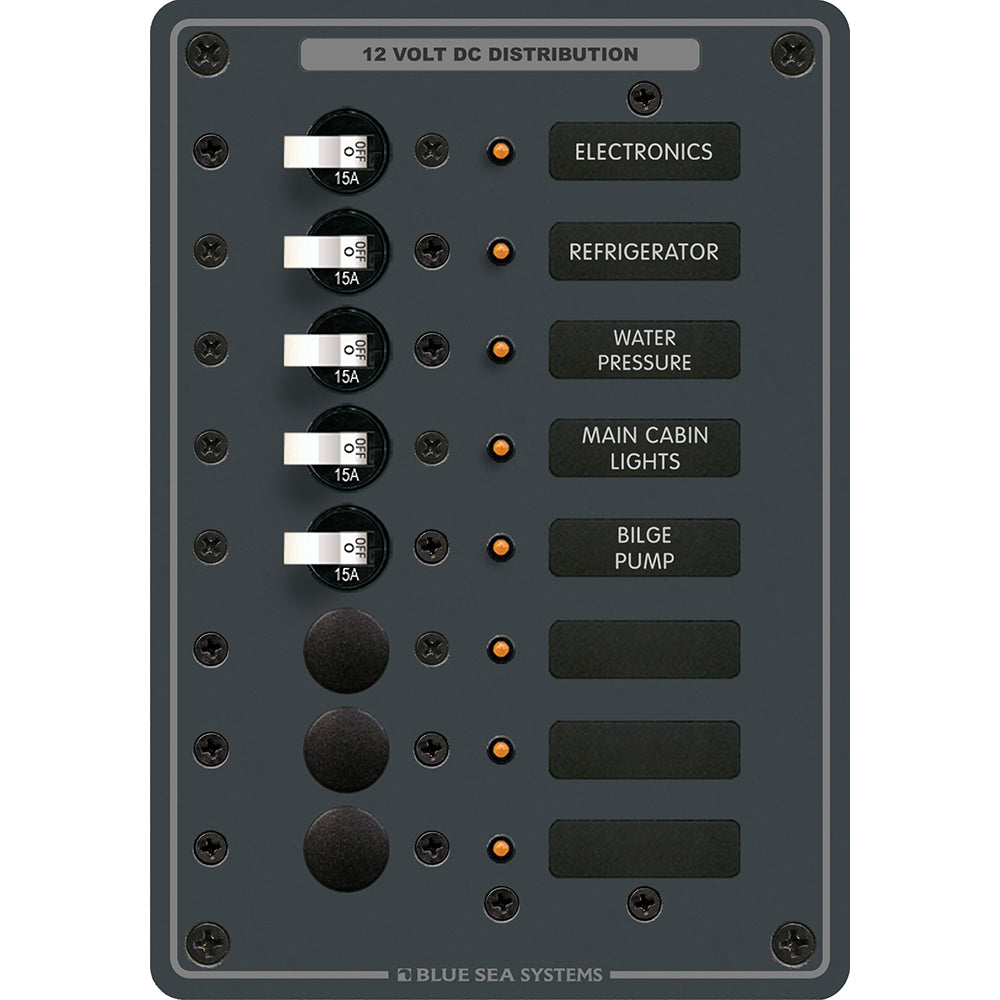

Blue Sea 8023 DC 8 Position Circuit Breaker - White Switches

All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243. All positive, negative and grounding buses installed, fully pre-wired.

Blue Sea 8023BSS Attributes

• Recommended Use: DC Branch Circuit Breaker Panel
• Voltage Rating: 12 Volt/ 24 Volt
• Power Rating: 100 Ampere
• Receptacle Type: Single Pole 15 Amps/ Basic DC Panel Label Set - 30 Labels
• Number Of Connections: 8
• GFCI/ Overload Protection: No
• Length (IN): 3 Inch
• Width (IN): 5-1/4 Inch
• Height (IN): 7-1/2 Inch
• Color: Black
• Material: Metal
• UL Listed: No
• With Flip Cover: No

Blue Sea 8023BSS Features & Benefits

• All Positive, Negative And Grounding Buses Installed, Fully Pre-Wired
• Panels With Meters Include Toggle Switch For Mounting Up To 3 Battery Banks
• All Circuit Label Positions Are Backlit On Standard Panels
• ON Indicating LEDs Installed In All Circuit Positions
• No Supplier Warranty

Blue Sea 8023BSS Installation Instructions

• 9467.pdf

Blue Sea 8023BSS Technical Bulletins

• 9559.pdf
• 9559.pdf

8023 DC 8 Position Circuit Breaker - White Switches

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

Specifications:

• Positions: 8
• Nominal Voltage: 12v / 24v DC
• Maximum Amperage: 100A
• Height: 7.5"
• Width: 5.25"

Included:

• (5) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
• (1) 8030 Basic DC Panel Label Set - 30 Labels

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This is the best-selling Blue Sea Systems 12 volt DC circuit breaker panel, with all marine grade materials, tinned busbars, anodized panel finishes, and comes with a set of...
SKU: NVN-19041
MPN: 8023-BSS
UPC: 632085080235
