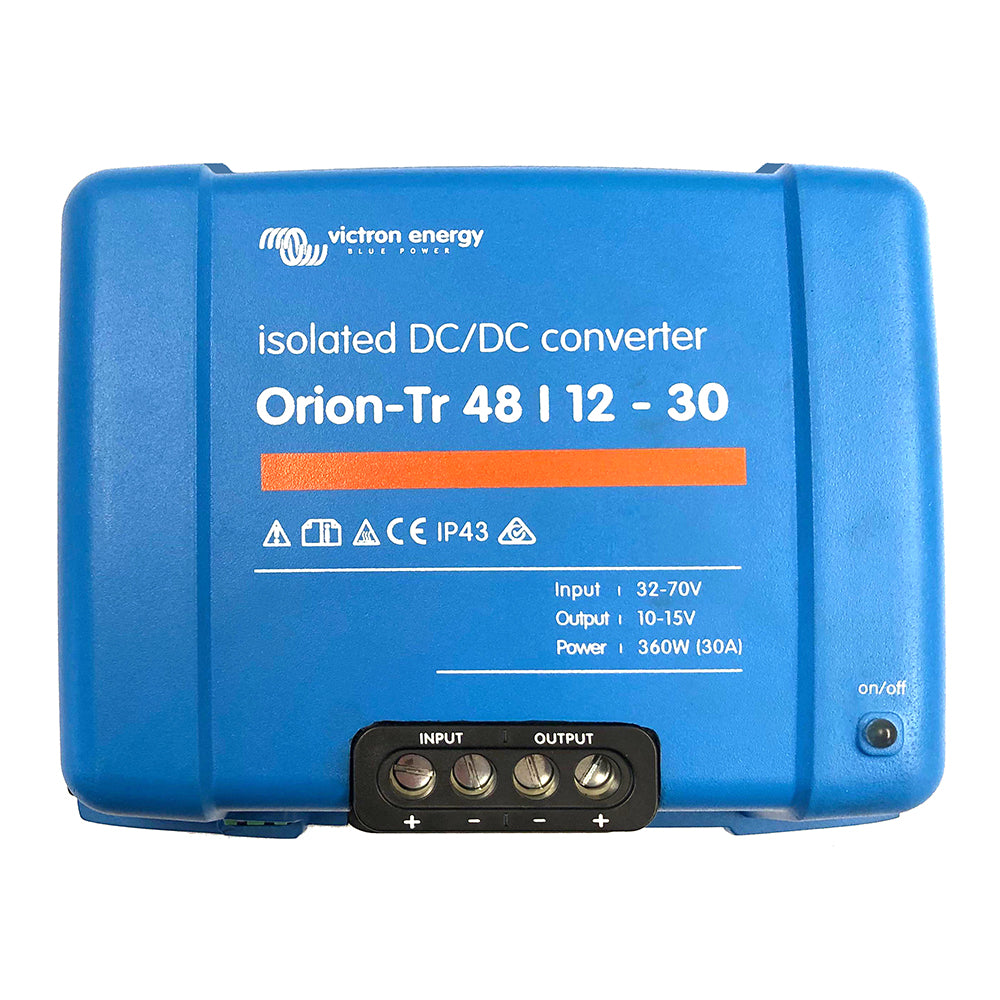

Victron Orion-TR DC-DC Converter - 48 VDC to 12 VDC - 30AMP Isolated

This is an isolated DC-DC converter intended to give a steady 12.5 Volt DC output when the input voltage varies between 30 and 60 Volts. Both input and output leads are electrically isolated from each other. Use for power conditioning and isolation

Orion-TR DC-DC Converter - 48 VDC to 12 VDC - 30AMP Isolated

Isolated Model - separate in and out (-) leads

Features:

• Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch.
• Adjustable output voltage: can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
• All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel.
• High temperature protected The output current will reduce at high ambient temperature.
• IP43 protection When installed with the screw terminals oriented downwards.
• Screw terminals No special tools needed for installation.
• Input fuse (not replaceable) On 12V and 24V input models only

Warranty Info

Please contact your dealer for any returns, repairs or support issues related to this product.

Orion-TR DC-DC converter -48 VDC to 12 VDC-30AMP isolation function: remote switch remote switch eliminates the need for high current switching in the input line. This ...

• Input voltage range 30-60 Volts DC
• Output voltage 12.5 Volts DC
• Rated Power 360 Watts
• Galvanically isolated output
• Fan assisted cooling
• Dimensions 3.2" x 5.2" x 7.5"
• Weight 3.1 Lbs

SKU: NVN-82878
MPN: ORI481240110
UPC: 8719076038870
