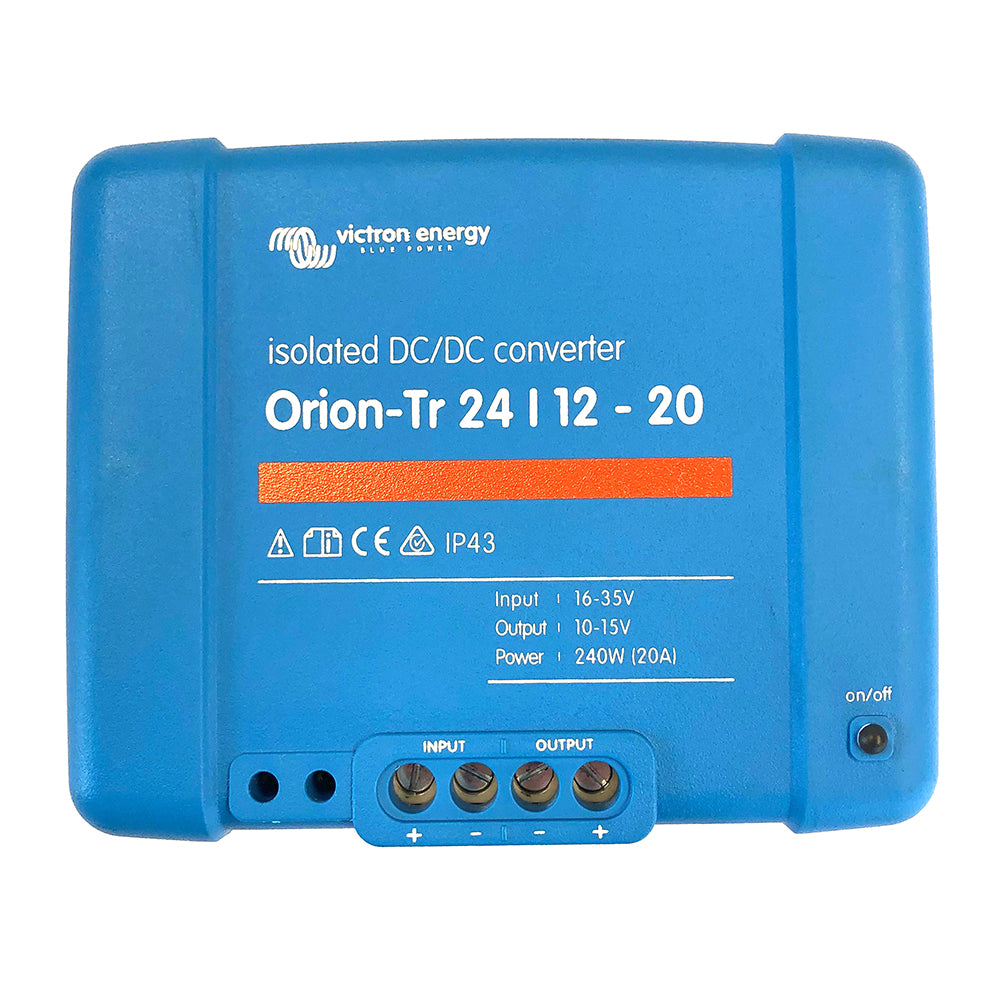

Victron Orion-TR DC-DC Converter - 24 VDC to 12 VDC - 20AMP Isolated

Orion-TR DC-DC Converter - 24 VDC to 12 VDC - 20AMP Isolated

Isolated Model - separate in and out (-) leads

Features:

• Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch
• Adjustable output voltage: can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system
• All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel
• High temperature protected The output current will reduce at high ambient temperature.
• IP43 protection When installed with the screw terminals oriented downwards
• Screw terminals No special tools needed for installation
• Input fuse (not replaceable) On 12V and 24V input models only

Warranty Info

Please contact your dealer for any returns, repairs or support issues related to this product.

Remote On/Off Remote On/Off eliminates the need for high-current switches in the input line. The remote on-off can be through a low-power switch or through...
SKU: NVN-82876
MPN: ORI241224110
UPC: 8719076035251
