Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A — Product description

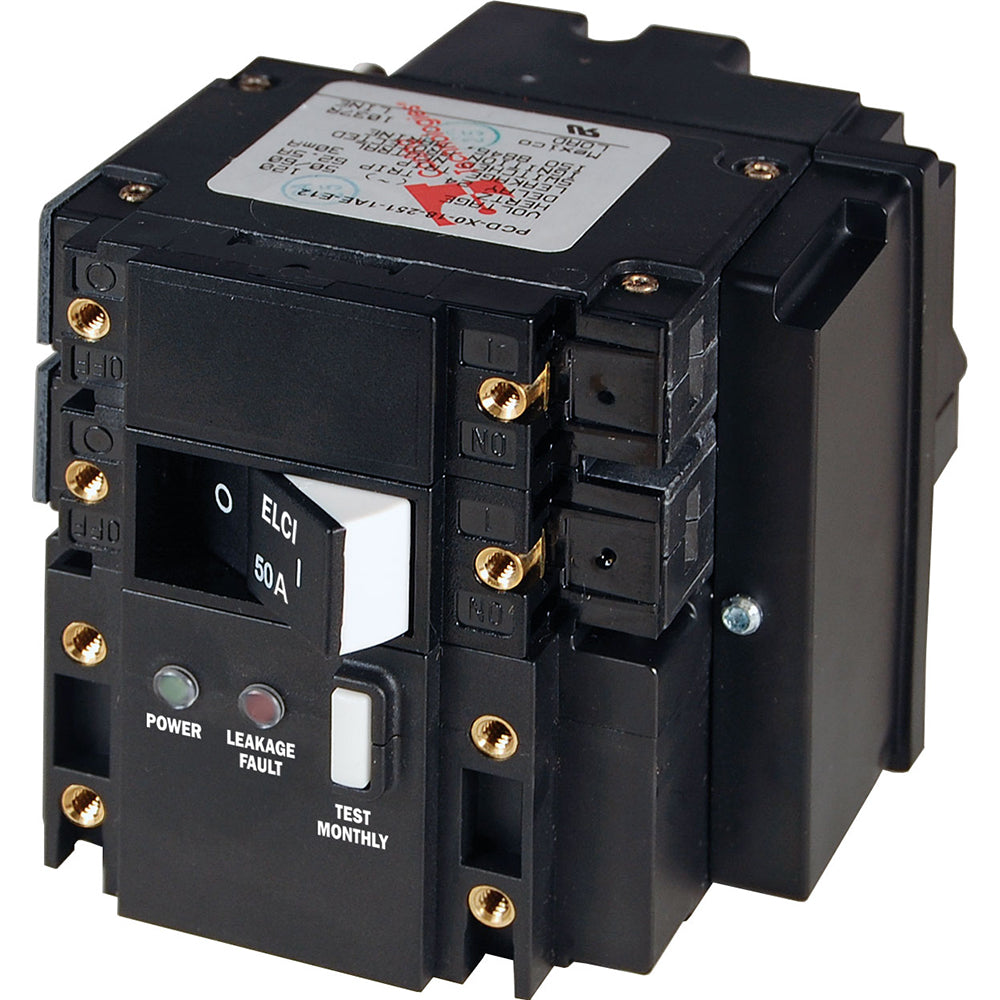

C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A
Features:
- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 50A
- Actuator Style: Flat Rocker
- Poles: 2
- Ignition Protected: Yes
- Max Voltage: 120VAC per pole
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35 degrees C
- Max Operating Temperature: 66 degrees C
- Leakage Trip Amps: 30mA
C series ELCI main circuit breaker-bipolar 120V AC 50A features: according to ABYC E-11 to provide overcurrent and leakage protection, can be used for the entire ship-shore power protection in line with UL 1500 external ignition protection...
SKU: NVN-85023
MPN: 3103
UPC: 632085031039
03 · The numbers
Technical specifications
| Brand | Blue Sea Systems |
| Model | Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A |
| SKU / MFR# | 85023 |
