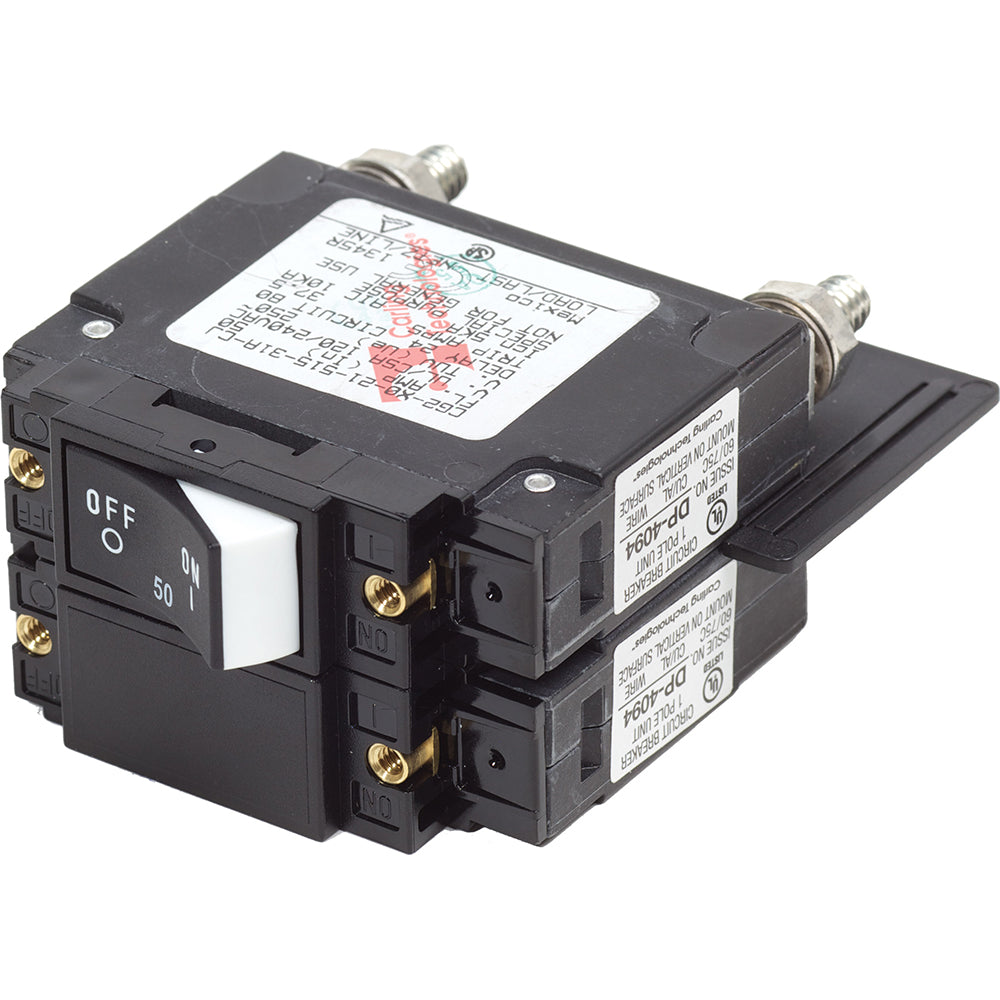

Blue Sea 7467 UL-489 Circuit Breaker - 50A Raised Rocker

7467 UL-489 Circuit Breaker - 50A Raised Rocker

Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)

Specifications:

• Amperage: 50A AC
• Actuator Style: Raised Rocker
• Poles: 2
• Maximum Voltage: 250V AC
• Circuit Breaker Type: Magnetic Hydraulic—Trip free
• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw: #6-32 SS
• Mounting Screw Torque: 8 in-lb (0.9 Nm)
• Switching Cycles: 10000
• Weight: 0.23lb (0.1 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

250V tailor-made circuit protection that meets CRF-46. Each electrical system is unique to the boat and the owner. If the ship falls under the jurisdiction of...
SKU: NVN-69609
MPN: 7467
UPC: 632085074678
