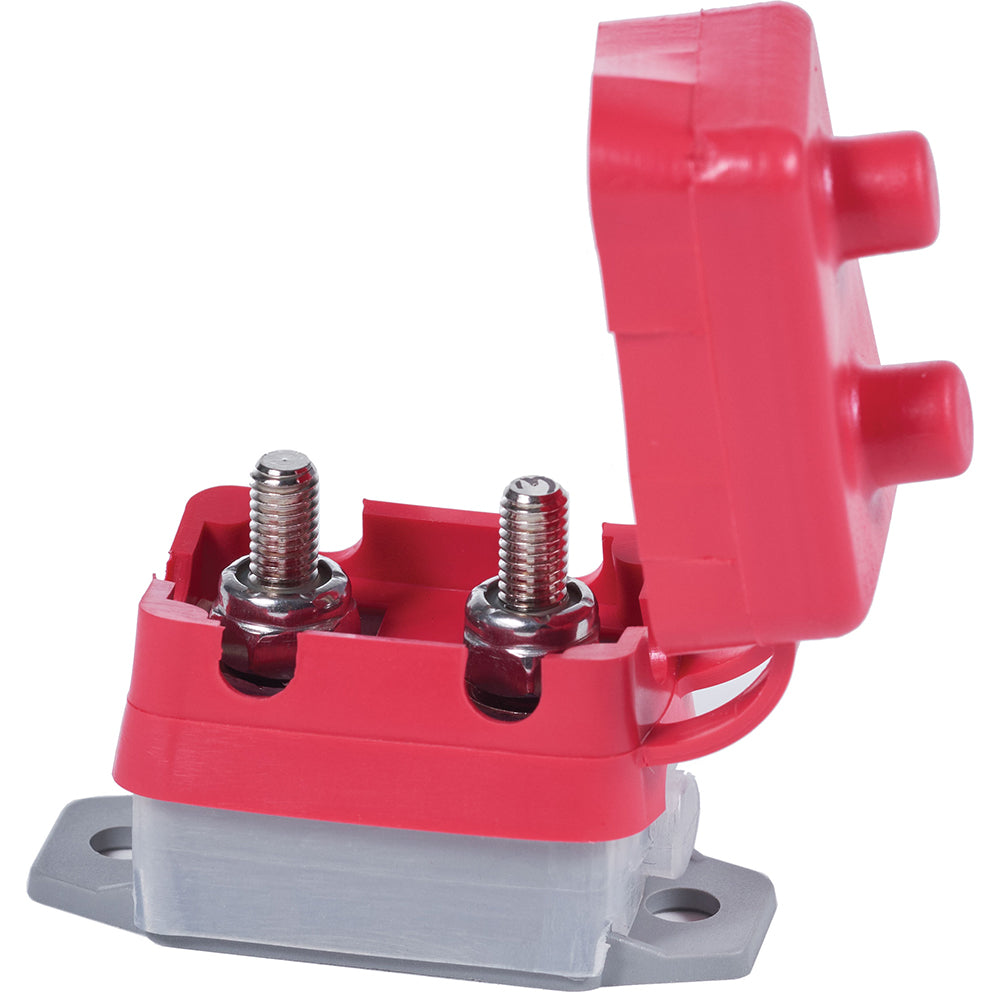

Blue Sea 7157 Short Stop Circuit Breaker - 50A

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 7157BSS Attributes

• Ampere Rating: 50 Amp
• Voltage Rating: 28 Volt
• Reset Type: Manual
• Terminal Connection: No 10-32 Screw
• Type: Thermal
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 7157BSS Features & Benefits

• Corrosion Resistant Materials To Withstand Harsh Environments
• IP64 Water Resistant Boot Protects Against Dust And Splashing Water
• Stainless Steel Lock Nuts For Secure Connections
• Push-To-Reset Operation
• No Supplier Warranty

Blue Sea 7157BSS Technical Bulletins

• short-stop-breakers.pdf
• short-stop-breakers.pdf

7157 Short Stop Circuit Breaker - 50A

• Corrosion Resistant Material
• IP 64 Water Resistant Boot
• Push to Reset Only
• Interrupt Capacity: 2,500A @ 28VDC
• Red insulating boot included in retail package

Specifications

• Amperage: 50A DC
• Maximum Voltage: 28V DC
• Interrupt Capacity: 2500A @ 28V DC
• Minimum Operating Temperature: -10º C
• Maximum Operating Temperature: 60º C
• Screw Terminal Torque: 24 in-lb (2.71 Nm)
• Terminal Stud: #10-32"

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Use circuit breakers instead of fuses! This product is very suitable for use in all marine applications. It will meet the needs of yacht lovers and ambitious tourists.
SKU: NVN-68722
MPN: 7157-BSS
UPC: 632085071578
