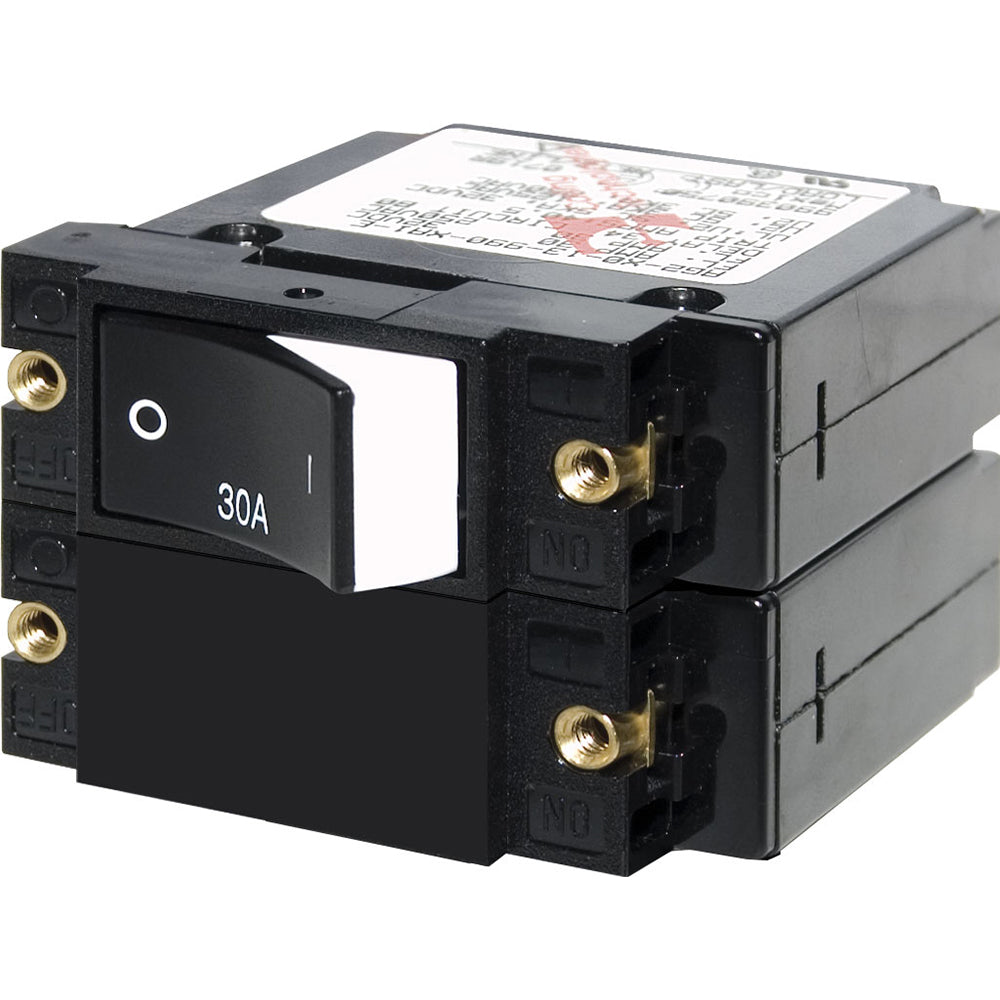

Blue Sea 7574 A-Series Raised Rocker Circuit Breaker - Double Pole - 30A

Magnetic hydraulic circuit breakers that combine switching and circuit protection into a single device. The industry standard circuit breaker for Blue Sea Systems electrical panels

Blue Sea 7574BSS Attributes

• Ampere Rating: 30 Amp
• Voltage Rating: 32/ 120/ 240 Volt
• Terminal Connection: Screw
• Type: Double Pole Magnetic Hydraulic
• Number of Poles: 2
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 7574BSS Features & Benefits

• Color Actuator Indicates “OFF” Position
• Trip Free Design Cannot Be Held “ON” During Fault Current Condition
• International ON And OFF Symbols Support Vertical Or Horizontal Mounting
• Double Pole Magnetic Hydraulic Type
• No Supplier Warranty

A-Series Raised Rocker Circuit Breaker - Double Pole - 30A

Features:

• Color actuator indicates "OFF" position

• "Trip Free" design cannot be held "ON" during fault current condition

• International ON/OFF symbols support vertical or horizontal mounting

Specifications:

• Amperage: 30A AC / 30A DC

• Actuator Style: Raised Rocker

• Poles: 2

• Maximum Voltage: 120V AC / 240V AC / 32V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC

• Minimum Operating Temperature: -40° C

• Maximum Operating Temperature: 85° C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Screw Terminal Torque: 14 in-lb (1.58 Nm)

• Switching Cycles: 10000

• Terminal Screw: #10-32 Stainless Steel

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product is very suitable for use in all marine applications. It will meet the needs of leisure boat lovers and ambitious yacht owners. Get this excellent product for...
SKU: NVN-65273
MPN: 7574
UPC: 632085075743
