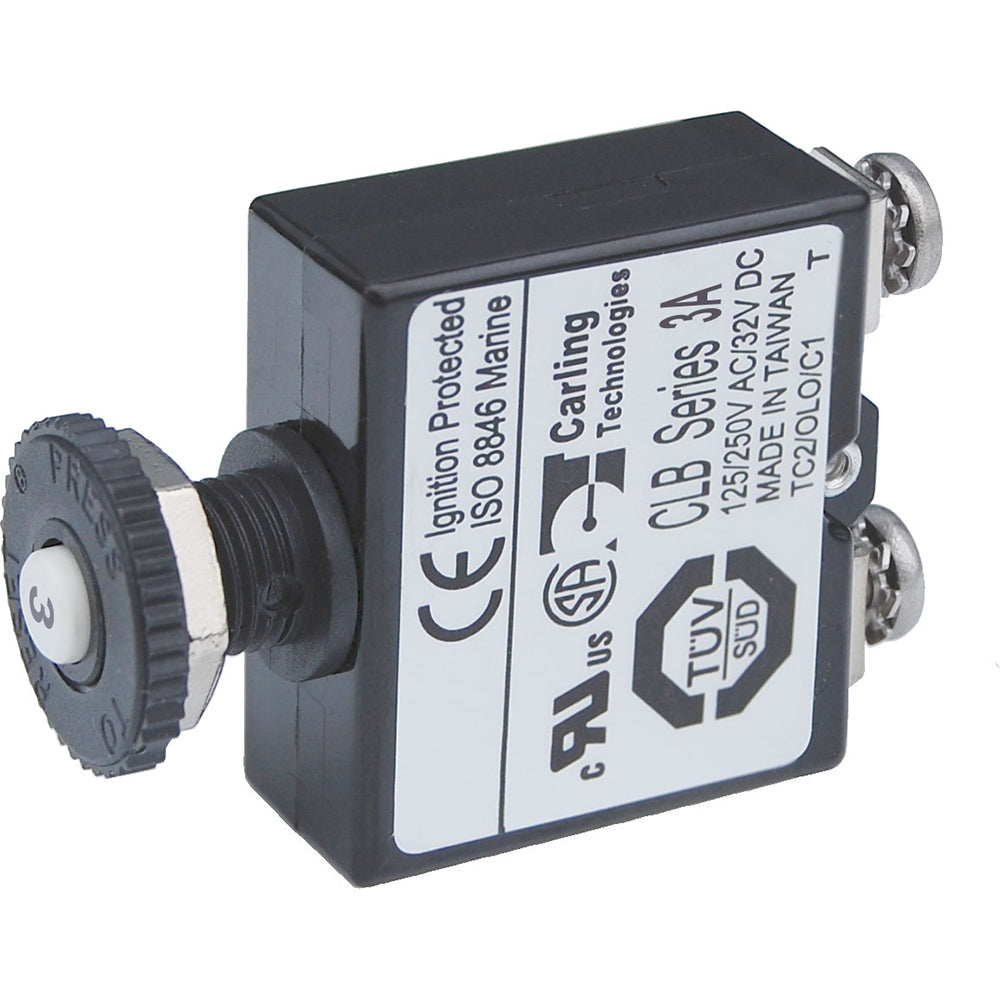

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 3 Amps

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 2129BSS Attributes

• Ampere Rating: 3 Amp
• Voltage Rating: 32 Volt
• Reset Type: Manual
• Terminal Connection: Screw
• Type: Thermal
• Estimated Install Time (Hours): 0.25

Blue Sea 2129BSS Features & Benefits

• Compact Design Enables High Density Circuit Protection Configurations
• Push-To-Reset Operation
• “Trip Free” Design Cannot Be Held “ON” During Fault Current Condition
• Ignition Protected - Safe For Installation Aboard Gasoline Powered Boats
• Optional Push Button Waterproof Boot Protects Circuit Breaker In Wet Environments, Replaces Dress Nut Mounting On Circuit Breakers And Resists Discoloration And Cracking
• No Supplier Warranty

• Branch circuit breakers (can also be used for 24-hour circuit protection)

• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels

• Compact design enables high density circuit protection configurations

• Push-to-reset operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Ignition protected - Safe for installation aboard gasoline powered boats

• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

• Amperage: 3A

• Maximum Voltage: 32V DC

• Mounting: Panel Mount 3/8-27 UNS

• Circuit Breaker Type: Thermal trip, manual push-button reset only

• Terminal Type: #8 Screw

• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V

• Minimum Operating Temperature: -10° C

• Maximum Operating Temperature: 60° C

• Screw Terminal Torque: 6 in-lb (0.68 Nm)

• Weight: 0.09lb (0.04 kg)

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



  The ideal choice for 24-hour circuit protection has been integrated into the Blue Sea Systems waterproof circuit breaker panel and the main battery main distribution panel to promote the reset operation...
  SKU: NVN-63008
  MPN: 2129-BSS
  UPC: 632085021290
