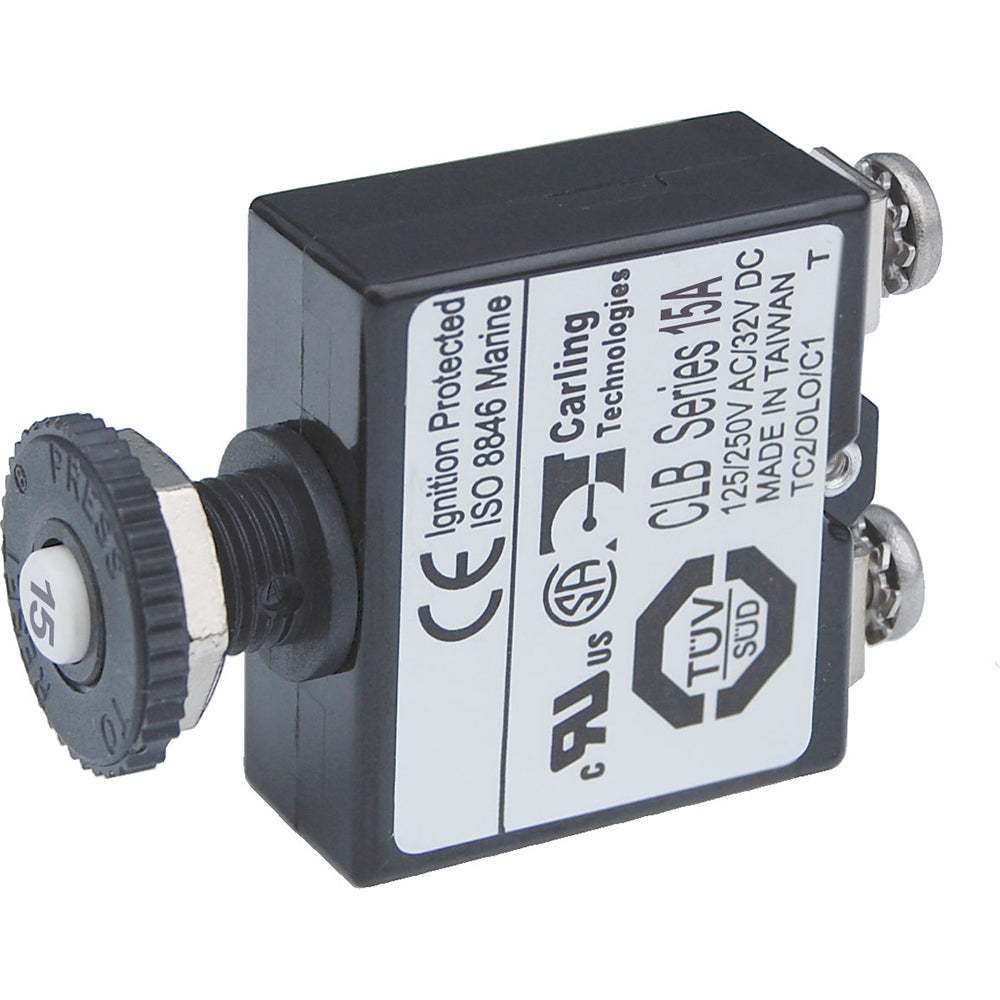

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 15 Amps

Branch circuit breakers can also be used for 24-hour circuit protection. Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels. Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking.

Blue Sea 2133BSS Attributes

• Ampere Rating: 15 Amp
• Voltage Rating: 32 Volt
• Reset Type: Manual
• Terminal Connection: Screw
• Type: Thermal
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 2133BSS Features & Benefits

• Compact Design Enables High Density Circuit Protection Configurations
• Push-To-Reset Operation
• Trip Free Design Cannot Be Held “ON” During Fault Current Condition
• Ignition Protected - Safe For Installation Aboard Gasoline Powered Boats
• No Supplier Warranty

• Branch circuit breakers (can also be used for 24-hour circuit protection)

• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels

• Compact design enables high density circuit protection configurations

• Push-to-reset operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Ignition protected - Safe for installation aboard gasoline powered boats

• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

• Amperage: 15A

• Maximum Voltage: 32V DC

• Mounting: Panel Mount 3/8-27 UNS

• Circuit Breaker Type: Thermal trip, manual push-button reset only

• Terminal Type: #8 Screw

• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V

• Minimum Operating Temperature: -10° C

• Maximum Operating Temperature: 60° C

• Screw Terminal Torque: 6 in-lb (0.68 Nm)

• Weight: 0.09lb (0.04 kg)

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



  The ideal choice for 24-hour circuit protection has been integrated into Blue Sea Systems' waterproof circuit breaker panel and main battery main power distribution panel. Press to reset the operation...
  SKU: NVN-62203
  MPN: 2133-BSS
  UPC: 632085021337
