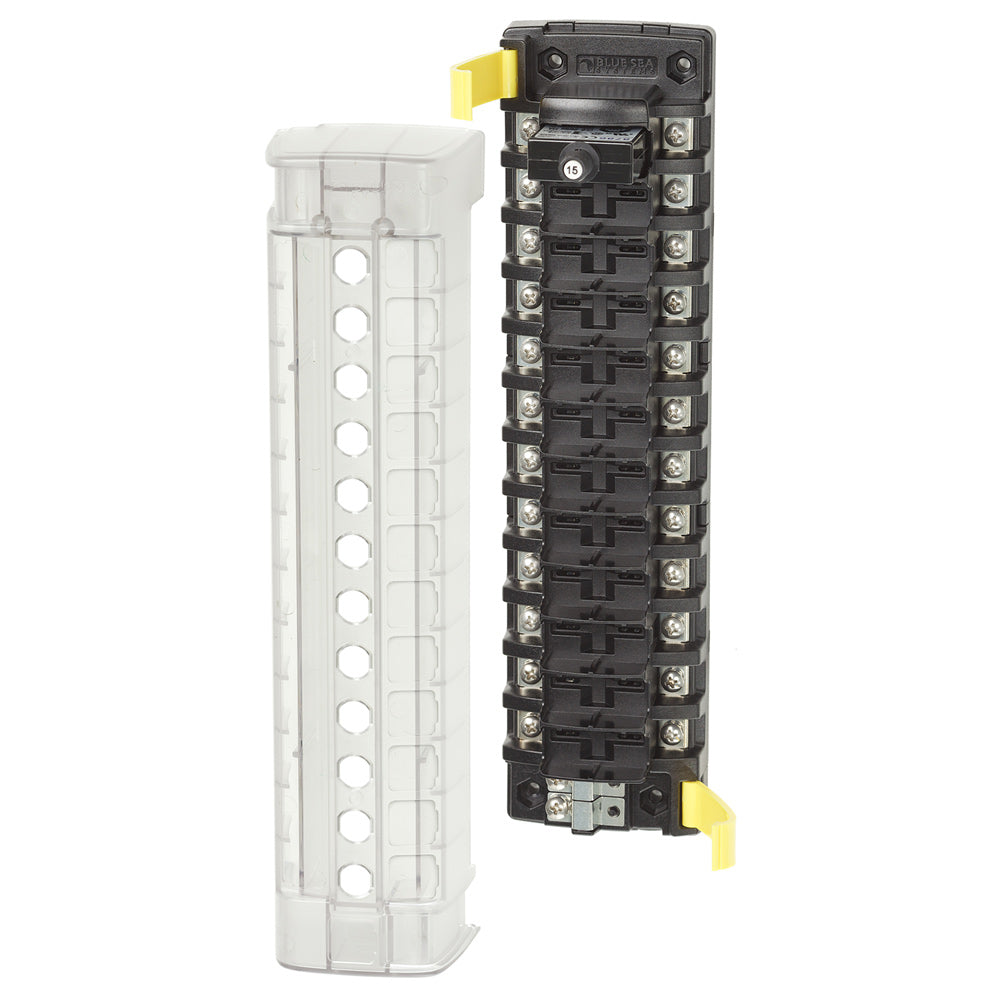

Blue Sea 5051 ST CLB Circuit Breaker Block - 12 Position

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the Compact Design, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

Blue Sea 5051BSS Attributes

• Number Of Circuits: 12 Position Independent Source Without Ground Base
• Ampere Rating: 32 Amp Per Circuit/ 40 Amp Per Jumped
• Voltage Rating: 32 Volt DC
• Operating Temperature: -10 Degree Celsius To 60 Degree Celsius
• Mounting Type: Snap-In
• With Insulating Cover: Yes

Blue Sea 5051BSS Features & Benefits

• Quick Connect Clips Allow Circuit Breakers To Snap Easily Into Place
• Tin-Plated Copper Busses And Screw Terminals
• Clear Insulating Cover With Square Format Label Recesses, Satisfies ABYC/USCG Insulation Requirements
• Easy To Open Clip On Cover
• Breakouts Allow Wire Access In Two Directions
• Accepts Ring Terminals
• Optional Push Button Waterproof Boots Or Dress Nuts Can Be Installed Over Cover
• Easy To Install
• No Supplier Warranty

Blue Sea 5051BSS Technical Bulletins

• 5051.pdf

ST CLB Circuit Breaker Block - 12 Position

Features

• Quick connect clips allow circuit breakers to snap easily into place

• Tin-plated copper busses and screw terminals

• Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements

• Easy to open clip on cover

• Breakouts allow wire access in two directions

• Accepts ring terminals

• Optional push button waterproof boots or dress nuts can be installed over cover

Specifications:
Circuits: 12
Maximum Amperage: 32A (per circuit) 40A (per jumped circuit group)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Source: Independent SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 10.13"(257.3 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 1.50lb (0.68 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The advantages of resettable circuit breakers over fuses are well known, but people find that circuit breakers are more expensive and difficult to install. ST CLB circuit breaker...
SKU: NVN-51810
MPN: 5051-BSS
UPC: 632085050511
