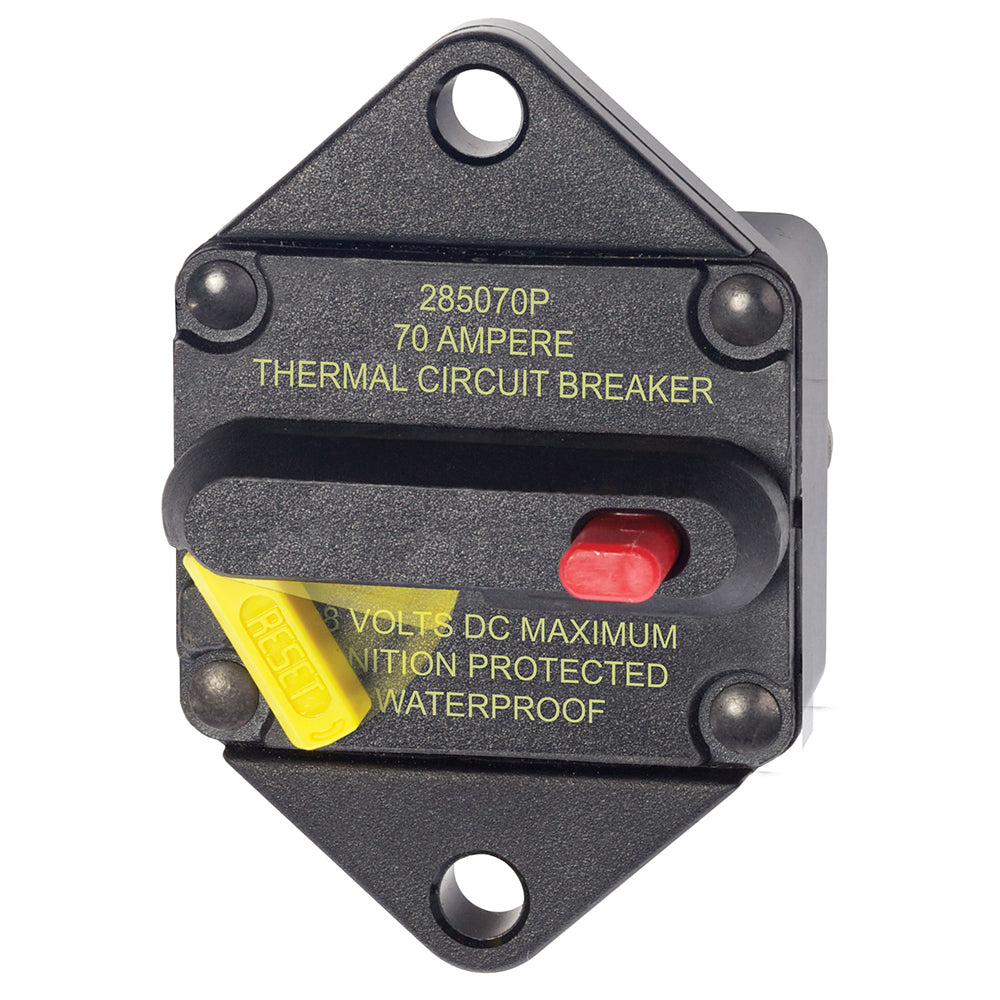

Blue Sea 7085 70 Amp Circuit Breaker Panel Mount 285 Series

Thermal circuit breakers provides medium duty circuit protection for 25 to 150 Amp loads when switching and circuit protection are both required.

Blue Sea 7085BSS Attributes

• Ampere Rating: 70 Amp
• Voltage Rating: 48 Volt
• Reset Type: Manual
• Terminal Connection: Screw
• Type: Thermal
• Number of Poles: 2
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 7085BSS Features & Benefits

• Visible Reset Lever Shows Open Condition
• Weather Resistant. Combines Switching And Circuit Breaker Function Into One Unit
• Meets SAE J1171 External Ignition Protection Requirements
• Ignition Protected - Safe For Installation Aboard Gasoline Powered Boats
• Trip Free Design
• No Supplier Warranty

285-Series Thermal Circuit Breaker Panel Mount - 70A
Part#7085

• Drop in replacement for 185-Series Circuit Breakers

• Visible reset lever shows open condition

• Ignition protected - Safe for installation aboard gasoline powered boats

• Meets SAE J1171 external ignition protection requirements

• Weather Resistant

• Combines switching and circuit breaker function into one unit

• "Trip Free" - cannot be held closed after trip

* Do not use for direct control of high inrush loads such as motor starting.

Specifications

Interrupt Rating 3,000A @ 48V DC*
Maximum Voltage Rating 48 Volts DC
Operating Temperature Range -40°C to 85°C
Circuit Breaker Type Thermally Responsive Bi-metal blade
Circuit Breaker Class Type III - Switchable / Manual Reset - Trip Free
Terminal Stud Size M6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque 50 in-lb
Mounting Holes Accept 1/4" (M6) screw
Weight Lb (Kg) 0.33 lb (0.15 kg)

* AIC ratings achieved using SAE J1625

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Circuit breaker, 285 series, 70A, MFG#7085, rectangular panel mounting, thermal type, type III, manual reset/switchable, no short circuit reset, 3000 Amp interruption, 48 VDC Max. 2.9 High x...
SKU: NVN-40613
MPN: 7085-BSS
UPC: 632085070854
