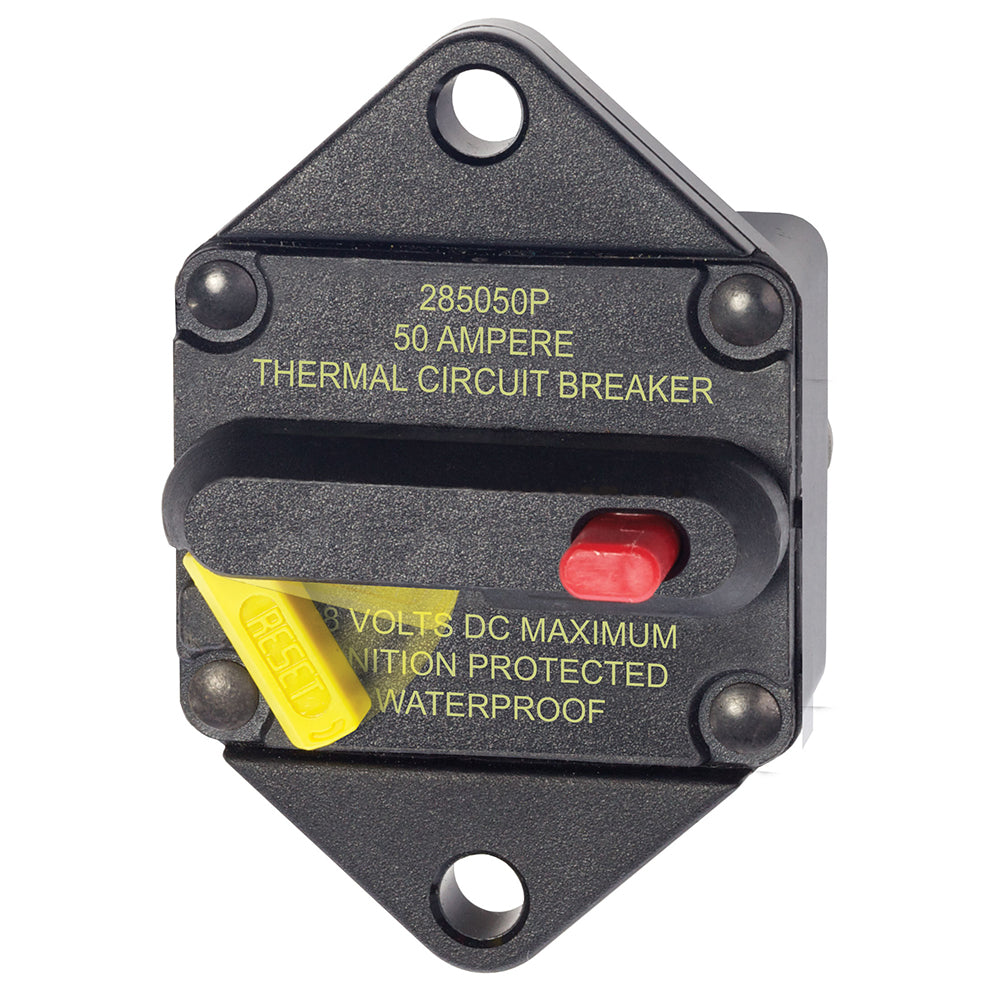

Blue Sea 7083 50 Amp Circuit Breaker Panel Mount 285 Series

Thermal circuit breakers provides medium duty circuit protection for 25 to 150 Amp loads when switching and circuit protection are both required.

Blue Sea 7083BSS Attributes

• Ampere Rating: 50 Amp
• Voltage Rating: 48 Volt
• Reset Type: Manual
• Terminal Connection: Screw
• Type: Thermal
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 7083BSS Features & Benefits

• Visible Reset Lever Shows Open Condition
• Weather Resistant. Combines Switching And Circuit Breaker Function Into One Unit
• Meets SAE J1171 External Ignition Protection Requirements
• Ignition Protected - Safe For Installation Aboard Gasoline Powered Boats
• Trip Free Design
• No Supplier Warranty

• Drop in replacement for 185-Series Circuit Breakers

• Visible reset lever shows open condition

• "Trip Free" - cannot be held closed after trip

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



  Blue Sea 7083 50 A Circuit Breaker Panel Mounting Frame 285 Series 285 Series Circuit Breaker Panel Mounting Frame-50A Replacement 185 Series Circuit Breaker Alternative Visible Reset Lever...
  SKU: NVN-40611
  MPN: 7083
  UPC: 632085170837
