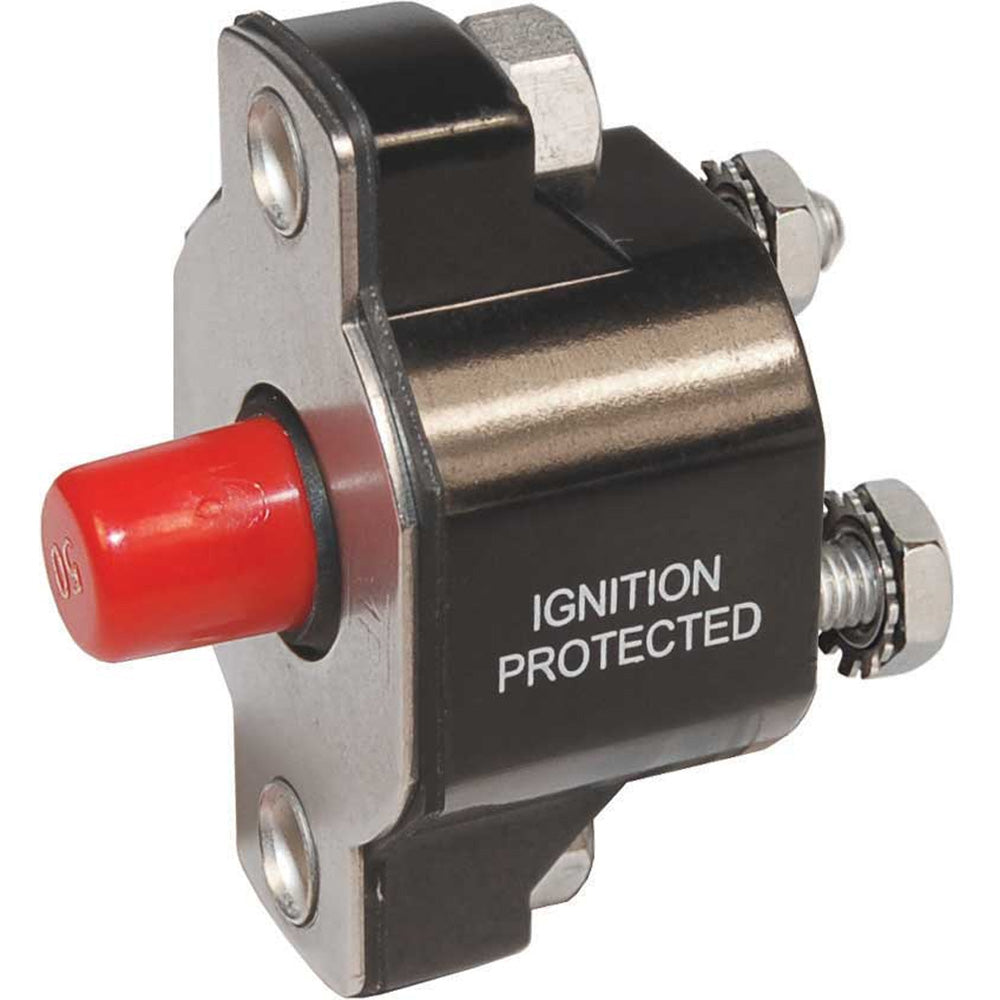

Blue Sea 2138 Medium Duty Push Button Reset-Only - 15A

2138


Amperage: 15A

Features:

• Weatherproof

• Can be used as Main, Branch, or 24 hour circuit protection

• Compact design enables high density circuit protection configurations

• Push-to-reset operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Ignition protected - Safe for installation aboard gasoline powered boats

• Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

"Blue Sea Systems Medium-Duty Circuit Breaker, Push-Button Reset, 15A. Weatherproof circuit protection for 15-60 Amp loads when switching is provided elsewhere or not required. These compact breakers are great for packing a lot of circuit protection into a small space. Designed to be used for a variety of circuit types that are switched elsewhere. They can be panel mounted by drilling a 9\/16\" hole and using #8-32 screws to secure the breaker body. A trip free\u201d feature prevents the breaker from being held in the ON\u201d position when a fault is detected. Specifications Amperage: 15A, 20A, 30A, 40A, 50A, 60A Circuit Breaker Type:Thermal trip, manual push-button reset only. Voltage Compatibility:DC Maximum Voltage: 32V DC, 120V AC. Interrupt Capacity: 3000A @ 120V AC ,5000A @ 32V DC Safety. Dimensions:2\"L x 1-3\/16\"W x 1-3\/8\"D."
SKU: NVN-34983
MPN: 2138-BSS
UPC: 632085021382
