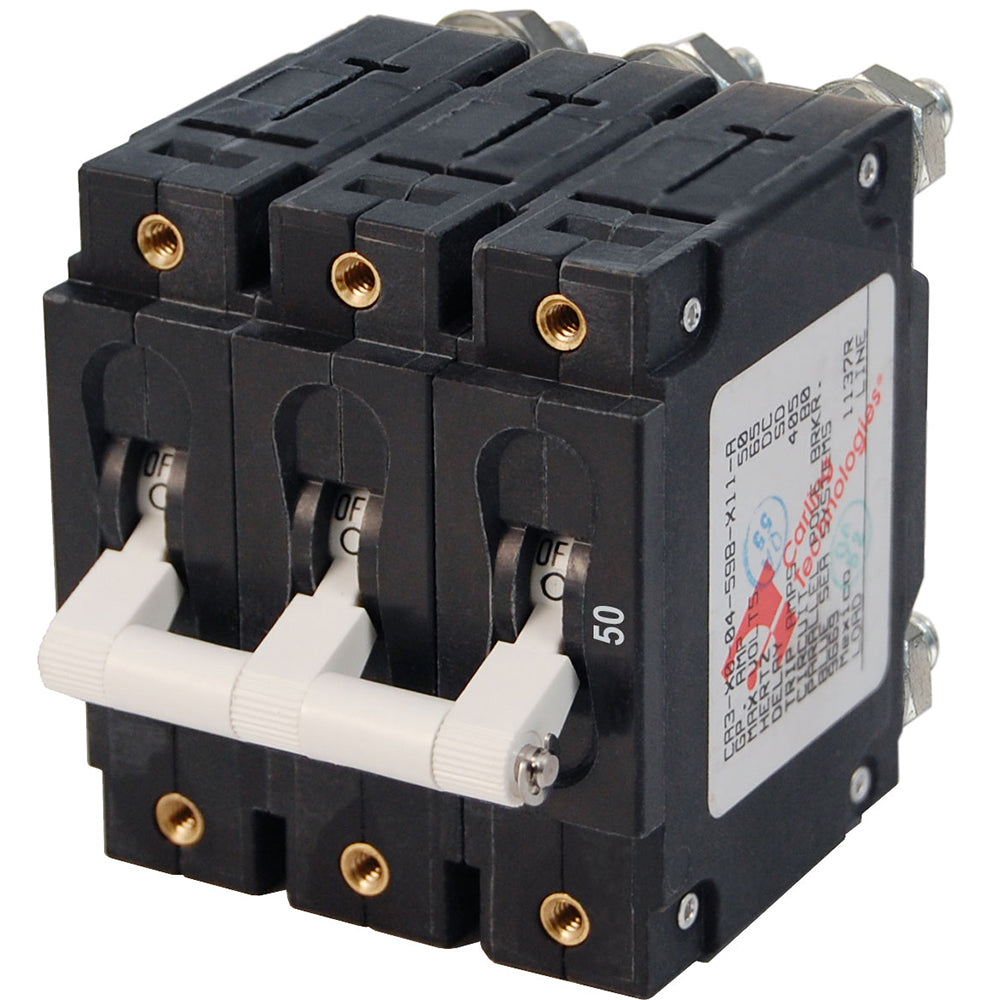

Blue Sea 7287 C-Series Triple Pole Circuit Breaker - 50A

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 7287BSS Attributes

• Ampere Rating: 50 Amp
• Voltage Rating: 80/ 120/ 240 Volt
• Reset Type: Manual
• Terminal Connection: Stud
• Type: Magnetic Hydraulic
• Number of Poles: 3
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 7287BSS Features & Benefits

• 5,000 Ampere Interrupt Capacity To Meet ABYC Requirements For 120/240 Volt 50 Ampere Main Protection
• Double Pole Used As 120 Volt AC Main Circuit Breaker To Switch Hot And Neutral
• Triple Pole Used As 240 Volt AC Main Circuit Breaker To Switch Lines And Neutral
• Double And Triple Pole Circuit Breakers Will Trip All Poles Will Trip If Any One Pole Trips
• Trip Free Design Cannot Be Held “ON” During Fault Current Condition
• No Supplier Warranty

C-Series Toggle

PN: 7287
Poles: 3
Color: White
Amperage: 50A

Features:

• 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection

• Double pole used as 120 volt AC main circuit breaker to switch hot to neutral

• Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral

• Double and triple pole circuit breakers will trip all poles will trip if any one pole trips

• "Trip Free" design cannot be held "ON" during fault current condition

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems' C series 50A white toggle three-pole circuit breaker (7287). This product is very suitable for use in all marine applications. It will meet the needs of both parties...
SKU: NVN-20606
MPN: 7287
UPC: 632085072872
