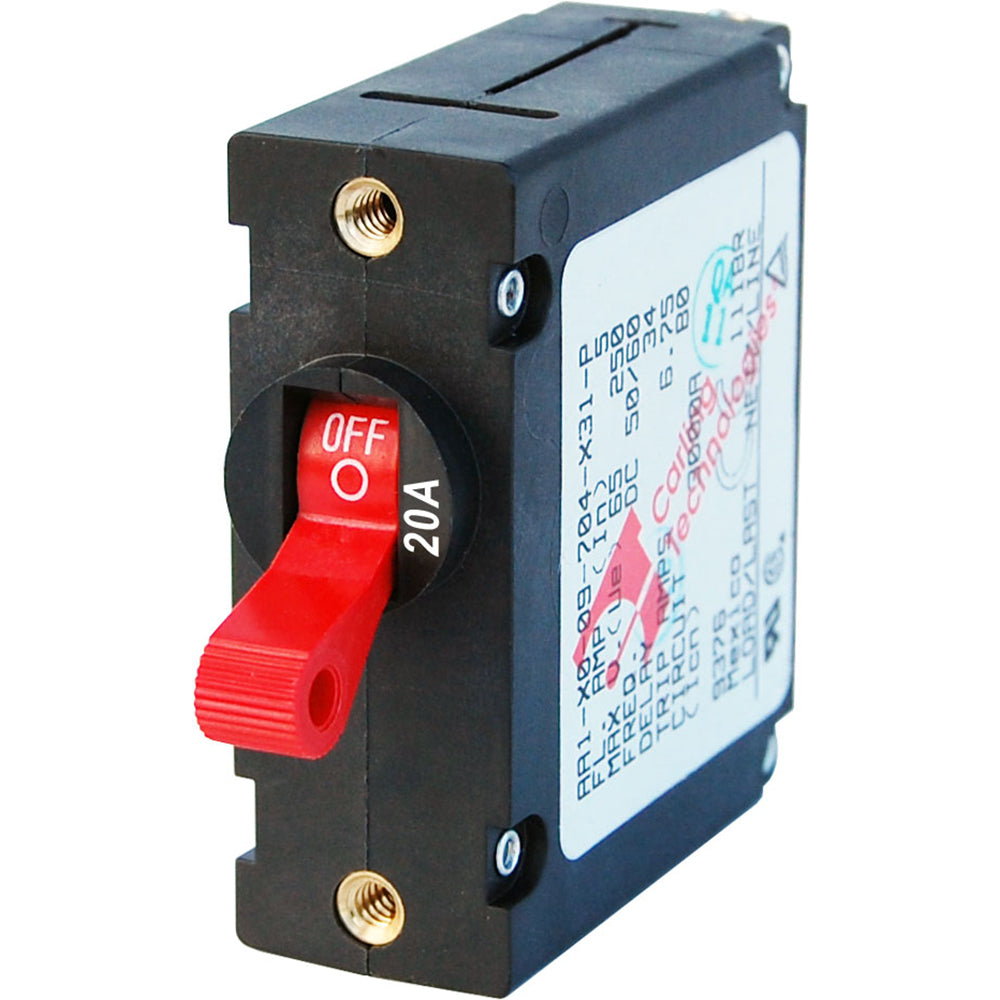

Blue Sea 7213 AC / DC Single Pole Magnetic World Circuit Breaker - 20 Amp

Magnetic hydraulic circuit breakers that combine switching and circuit protection into a single device. The industry standard circuit breaker for Blue Sea Systems electrical panels

Blue Sea 7213BSS Attributes

• Ampere Rating: 20 Amp
• Voltage Rating: 240 Volt AC/ 32 Volt DC
• Terminal Connection: Screw
• Number of Poles: 1
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 7213BSS Features & Benefits

• Combines Switching And Circuit Protection Into A Single Device
• Trip Free Design Cannot Be Held “ON” During Fault Current Condition
• Meets American Boat And Yacht Council (ABYC) Standards
• Single Pole Magnetic Hydraulic Type
• No Supplier Warranty

AC / DC Single Pole Magnetic World Circuit Breaker

The World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada.

PN:   7213
Color:   Red
Amperage:   20 Amp
Delay:   Standard

Features:

• The industry standard circuit breaker for Blue Sea Systems electrical panels

• Combines switching and circuit protection into a single device

• Single pole Quick Trip models are designed specifically for electronics protection

• "Trip Free" design cannot be held "ON" during fault current condition

Specifications
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Maximum Voltage	277 Volts AC / 65 Volts DC
Rated Switch Cycles	10,000@rated amperage and voltage

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems' A series toggle circuit breaker 20A red (7213). What is more interesting and meaningful than boating in open water? This is your ideal solution.
SKU: NVN-20575
MPN: 7213
UPC: 632085072131
