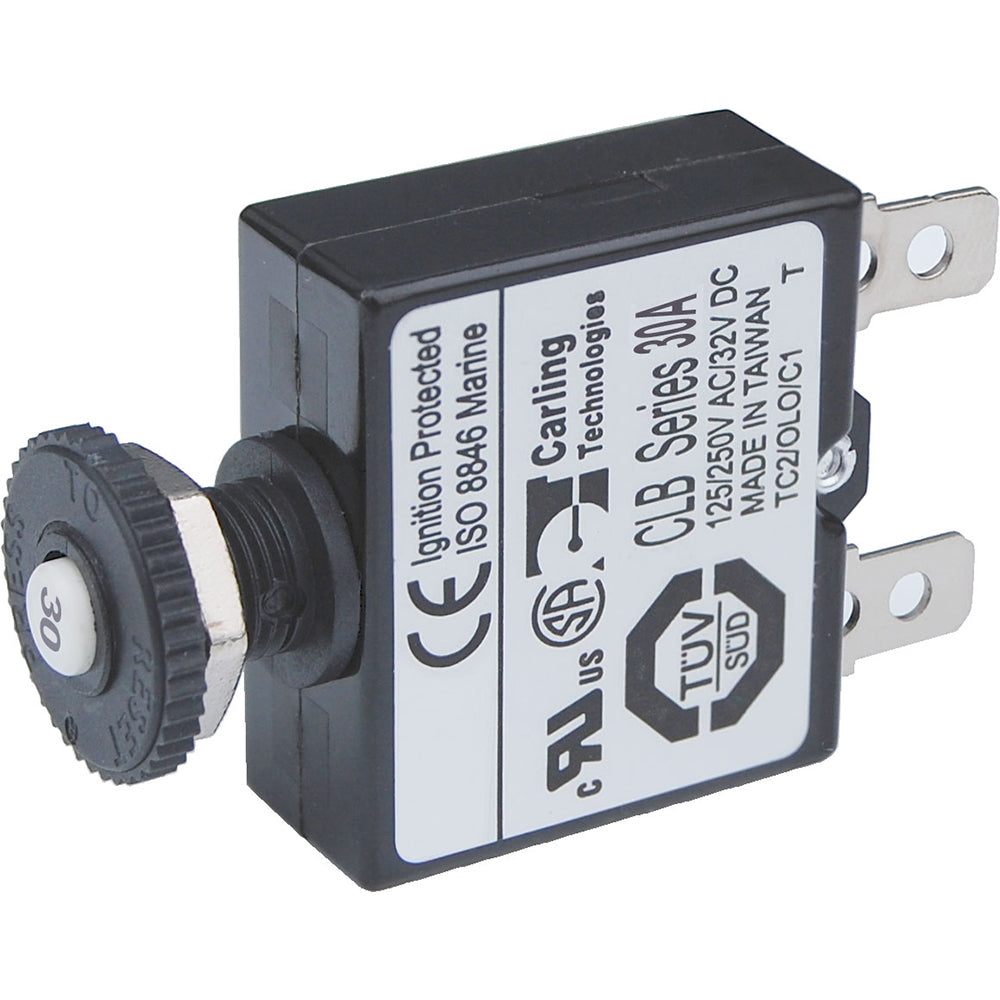

Blue Sea 7059 30A Push Button Thermal with Quick Connect Terminals

Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels.

Blue Sea 7059BSS Attributes

• Ampere Rating: 30 Amp
• Voltage Rating: 32 Volt
• Reset Type: Manual
• Terminal Connection: Blade
• Type: Thermal
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 7059BSS Features & Benefits

• Compact Design Enables High Density Circuit Protection Configurations
• Push-To-Reset Operation
• “Trip Free” Design Cannot Be Held “ON” During Fault Current Condition
• Ignition Protected - Safe For Installation Aboard Gasoline Powered Boats
• Optional Push Button Waterproof Boot Protects Circuit Breaker In Wet Environments, Replaces Dress Nut Mounting On Circuit Breakers And Resists Discoloration And Cracking
• No Supplier Warranty

Blue Sea 7059BSS Technical Bulletins

• PushButton_CB.pdf

7059
Push Button Thermal with Quick Connect Terminals

30A

• Ideal for 24-hour circuit protection

• Incorporated into Blue Sea Systems' Waterproof Circuit Breaker panels and main Battery Main Distribution Panels

• Push to reset operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Ignition protected - Safe for installation aboard gasonline powered boats

• With male quick connect terminals


WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

"SwitchCircuit Breaker Push Button 30A Push Button Reset-Only Circuit Breaker Provides economical circuit protection when switching is provided separately. Compact design - waterproof with optional boot. Trip free - cannot be held closed after trip. Max. voltage 28 volts DC, 125-250 volts AC."
SKU: NVN-20543
MPN: 7059-BSS
UPC: 632085070595
