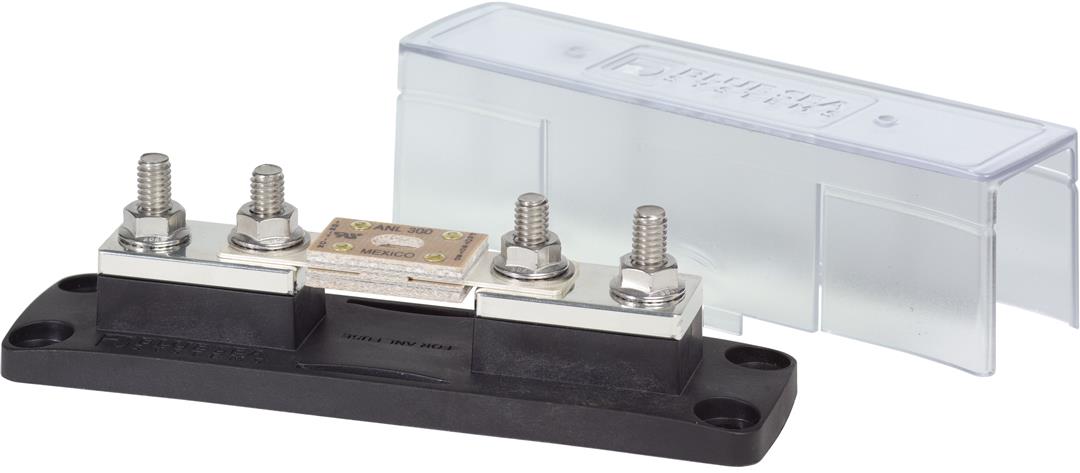

Blue Sea 5503 ANL 750 Fuse Block w/ Cover

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 5503BSS Attributes

• Power Rating: 32 Volt
• Type: Electrical Contact
• Fuse Type: ANL
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: No
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: Yes

Blue Sea 5503BSS Features & Benefits

• Accepts 5/16 Inch (M8) Ring Terminals
• For Use On Systems Up To 32 Volts DC
• Swing Out Design Allows Replacement Of The Fuse Without Removing Fasteners
• Stainless Steel Studs Provide Resistance To Corrosion And High Torquing For Excellent Electrical Contact
• UL 94-V0 Base Resists High Heat
• Insert Molded Studs Ensure Secure Fuse Mounting
• Insulating Cover Satisfies ABYC/USCG Requirements
• Cover Breakouts Allow Wire Access In Any Direction
• No Supplier Warranty

5503

• Cover included
• Accepts 5/16" (M8) ring terminals
• For use on systems up to 32 Volts DC
• Swing out design allows replacement of the fuse without removing fasteners
• Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
• UL 94-V0 base resists high heat
• Insert molded studs ensure secure fuse mounting
• Insulating cover satisfies ABYC/USCG requirements
• Cover breakouts allow wire access in any direction
• Fuse sold separately

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

About the manufacturer: Blue Sea Systems is composed of passionate boatmen who have decades of experience in craftsmanship from small speed boats to sailing boats, and have many years of blue water sailing...
SKU: NVN-34963
MPN: 5503-BSS
UPC: 632085055035
