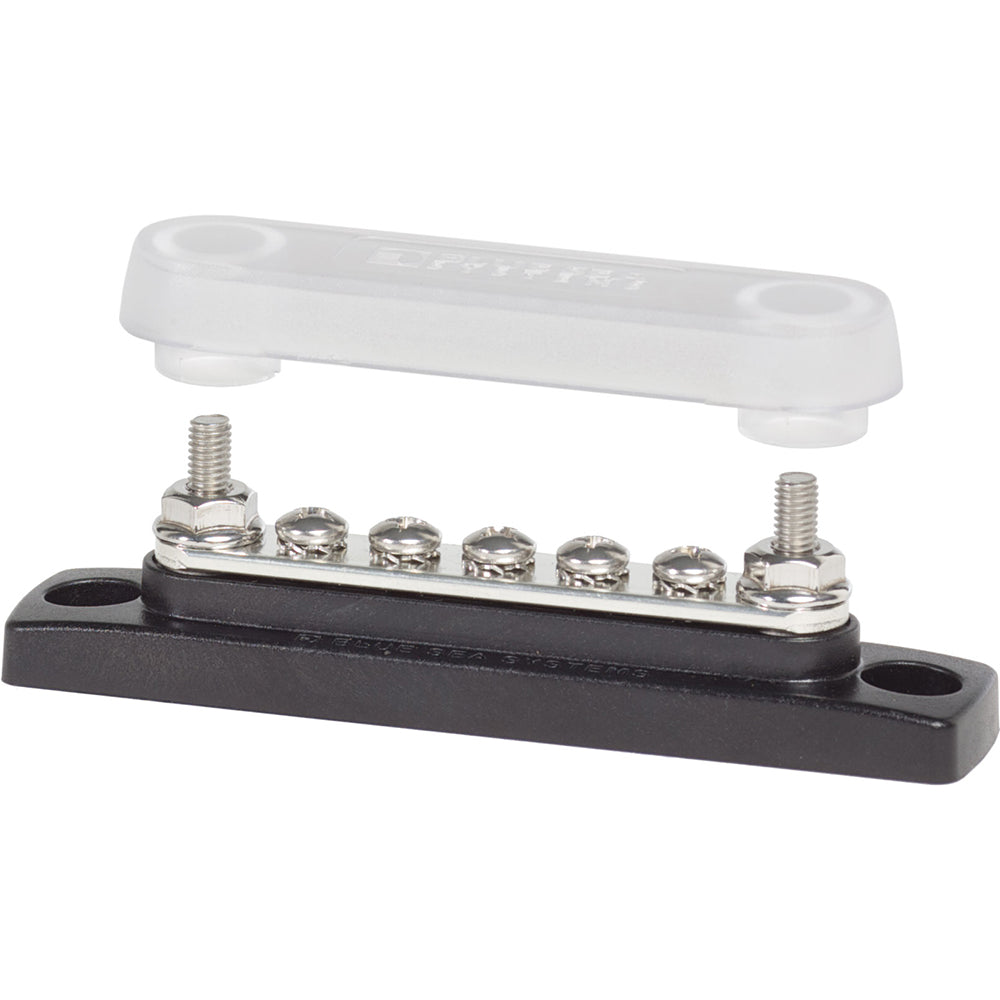

Blue Sea 2314 MiniBus 100 Ampere Common BusBar 5 x 8-32 Screw Terminal with Cover

MiniBus 100 Ampere Common BusBar 5 x 8-32 Screw Terminal with Cover

PN:   2314

• Great for limited space applications in electronics cabinets and under dashboards

• Snap on insulating cover attaches to studs and allows unobstructed wire access

• Raised bus provides easy access to multiple wires on a single screw

• Pressed on busbar eliminates the need for securing nut

• Stainless steel studs allow high torquing for excellent electrical contact

• Tin-plated copper bus for maximum conductivity and corrosion resistance
  =
• Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces

• Captive star type lock washers meet CE requirements for anti-rotation and eliminate handling of small, easily dropped parts

• Stainless steel Phillips screws for easier installation and resistance to stripping

• UL 94-VO rated base material resists high heat

Continuous Amperage	130 Amperes AC/DC
Maximum Voltage Rating	300 Volts AC/48 Volts DC
Bus Material	Tin-Plated Copper CDA 110/UNS11000
Base Material	Reinforced Polycarbonate
Cover Material	Clear Polycarbonate
Weight	0.17Lb

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

"Great for limited space applications in electronics cabinets and under dashboards. Snap on insulating cover attaches to studs and allows unobstructed wire access. Raised bus provides easy access to multiple wires on a single screw. Pressed on busbar eliminates the need for securing nut. Stainless steel studs allow high torquing for excellent electrical contact. Tin-plated copper bus for maximum conductivity and corrosion resistance. Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces. Captive star type lock washers meet CE requirements for anti-rotation and eliminate handling of small, easily dropped parts. Stainless steel Phillips screws for easier installation and resistance to stripping. UL 94-VO rated base material resists high heat."
SKU: NVN-28235
MPN: 2314-BSS
UPC: 632085023140
