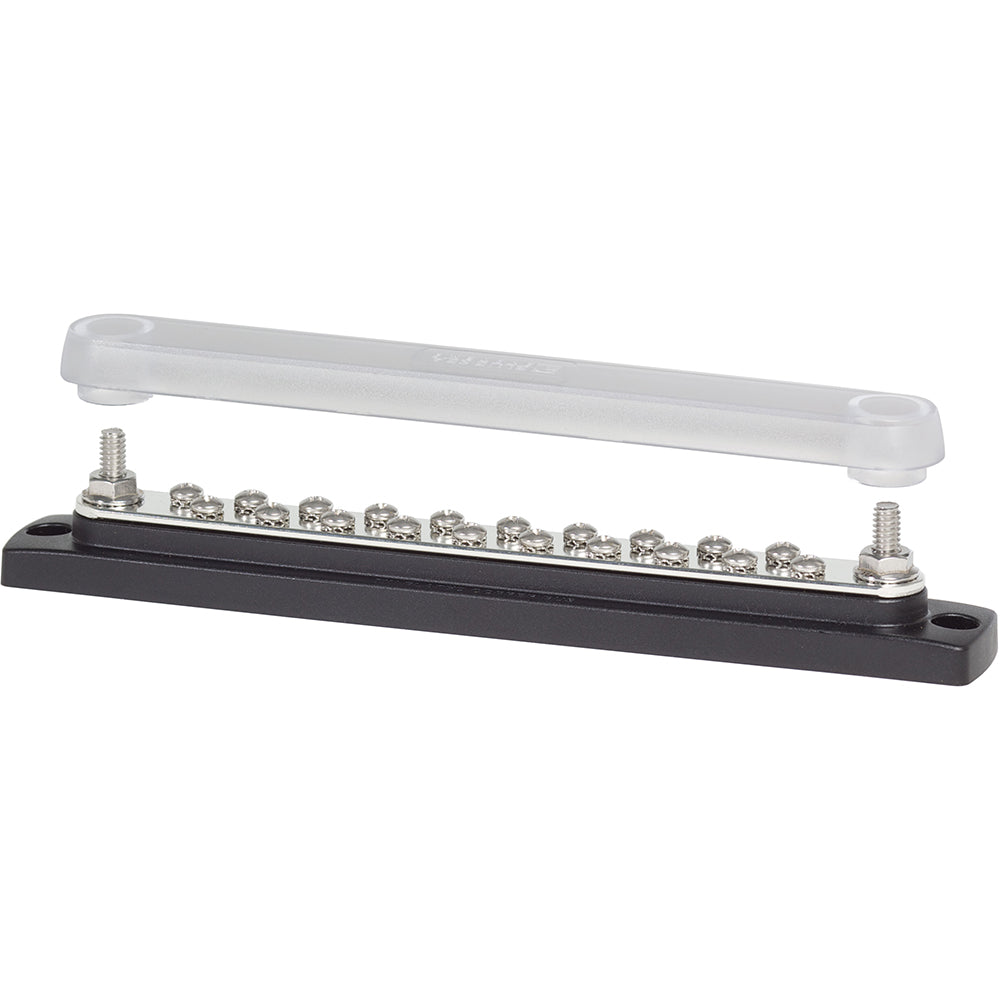

Blue Sea 2312, 150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover

Over 1,000 electrical products are designed to work together as a fully integrated system. Just in time manufacturing has made Blue Sea Systems rank among the top 5 Percent of marine manufacturers for rapid order fulfillment.

Blue Sea 2312BSS Attributes

• Type: Flat Strip
• Number Of Terminals: 20 Stud/ 2 Screw
• Voltage Rating: 300 Volt/ 48 Volt
• Ampere: 130 Amp/ 150 Amp
• Length (IN): 9-1/8 Inch
• Width (IN): 1/4 Inch
• Material: Reinforced Polycarbonate Base With Tin-Plated Copper Bus
• With Insulated Cover: Yes

Blue Sea 2312BSS Features & Benefits

• Reinforced Polycarbonate Base With Tin-Plated Copper Bus
• Ensures Products Meet ABYC, NMMA And Guard Standards
• Provides Maximum Durability And Long Life
• Offering Quality Products That Are Engineered For The Harsh Marine Environment
• No Supplier Warranty

150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover

PN:   2312

• Stud design provides direct terminal to bus contact for low resistant connection

• Stainless steel studs and screws allow high torquing for excellent electrical contact

• Tin-plated copper bus for maximum conductivity and resistance to corrosion

• UL 94-VO rated (self extinguishing) base material resists high heat

• Press on insulating cover attaches to studs and allows unobstructed wire access

• Raised bus provides easy access to multiple wires on a single screw

Continuous Amperage	130 Amperes AC 150 Amperes DC
Maximum Voltage Rating	300 Volts AC 48 Volts DC
Bus Material	Tin-Plated Copper CDA 110/UNS11000
Base Material	Glass Reinforced Polycarbonate
Cover Material	Polycarbonate
Studs	Stainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminal
Screws	Stainless steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal
Weight	0.58Lb

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Sold in units of measurement: EAIndustry standard bus bars have tinned copper bus bars, 1/4 inch stainless steel studs and 8-32 terminal screws. Continuously rated 150 amp AC/DC,...
SKU: NVN-28234
MPN: 2312-BSS
UPC: 632085023126
