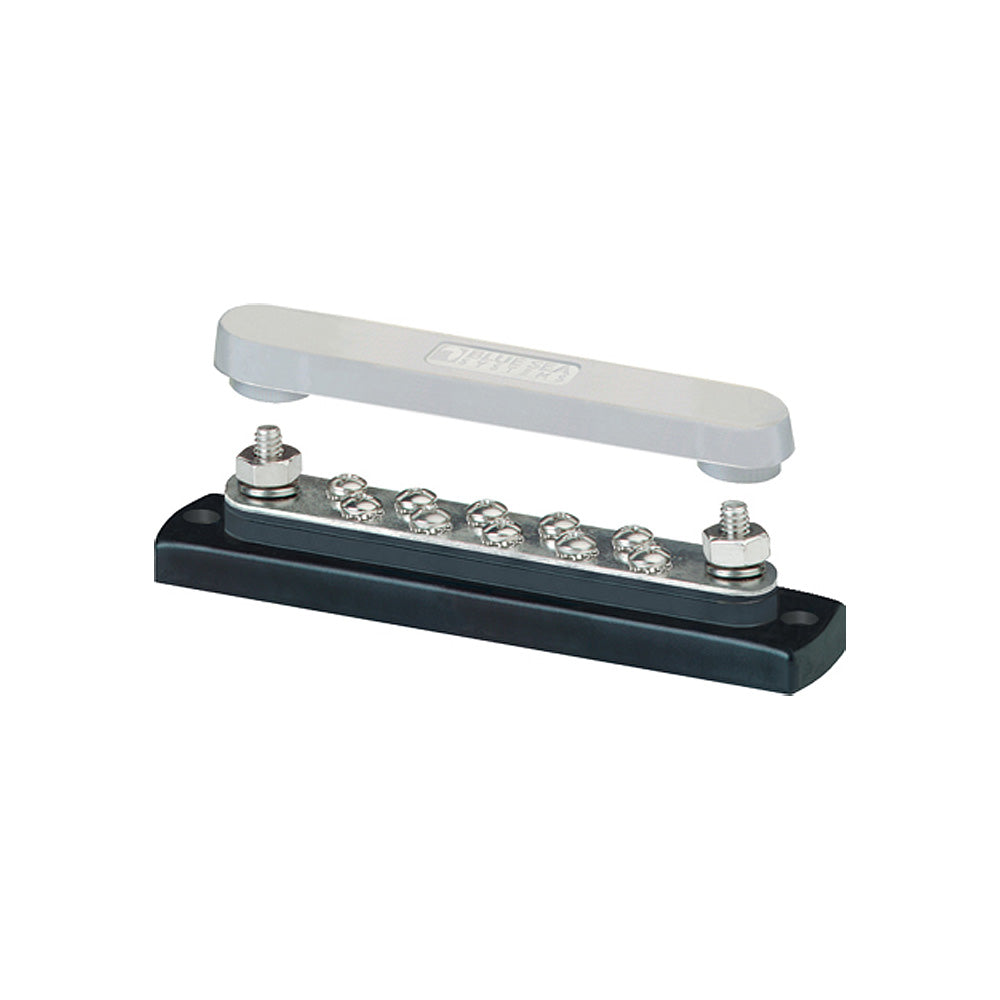

Blue Sea 2300 150AMP Common BusBar 10 x #8-32 Screw Terminal w/Cover

BusBar 10 Gang Common Bus with cover

The Industry Standard Busbar For Positive Distribution. The Industry Standard Busbar For The Collection Of Negative Or AC Ground Circuits.

Blue Sea 2300BSS Attributes

• Type: Flat Strip
• Number Of Terminals: 10
• Voltage Rating: 300 Volt/ 48 Volt
• Ampere: 130 Amp/ 150 Amp
• Length (IN): 5-7/8 Inch
• Width (IN): 1-1/4 Inch
• Material: Reinforced Polycarbonate Base With Tin-Plated Copper Bus
• With Insulated Cover: Yes

Blue Sea 2300BSS Features & Benefits

• 10 Stud Terminal
• Great For Limited Space Applications
• Reinforced Polycarbonate Base With Tin-Plated Copper Bus
• For Positive Distribution
• No Supplier Warranty

2300 150AMP Common BusBar 10 x #8-32 Screw Terminal with Cover

Features:

• Stud design provides direct terminal to bus contact for low resistant connection
• Stainless steel studs and screws allow high torquing for excellent electrical contact
• Tin-plated copper bus for maximum conductivity and resistance to corrosion
• UL 94-VO rated (self extinguishing) base material resists high heat
• Press on insulating cover attaches to studs and allows unobstructed wire access
• Raised bus provides easy access to multiple wires on a single screw

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

"2300 Stud design provides direct terminal to bus contact for low resistant connection. Stainless steel studs and screws allow high torquing for excellent electrical contact. Tin-plated copper bus for maximum conductivity and resistance to corrosion. UL 94-VO rated (self extinguishing) base material resists high heat. Press on insulating cover attaches to studs and allows unobstructed wire access. Raised bus provides easy access to multiple wires on a single screw. Continuous amperage: 130 Amp AC, 150 Amp DC. Maximum voltage rating: 300 volts AC, 48 volts DC. Base Material: Glass reinforced polycarbonate. Cover material: Polycarbonate. Studs: Stainless steel, 1\/4\"-20, torque 72 in-lbs, accepts 1\/4\" (M6) ring terminal. Screws: Stainless steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal. Weight: 0.34 lbs."
SKU: NVN-20218
MPN: 2300-BSS
UPC: 632085023003
