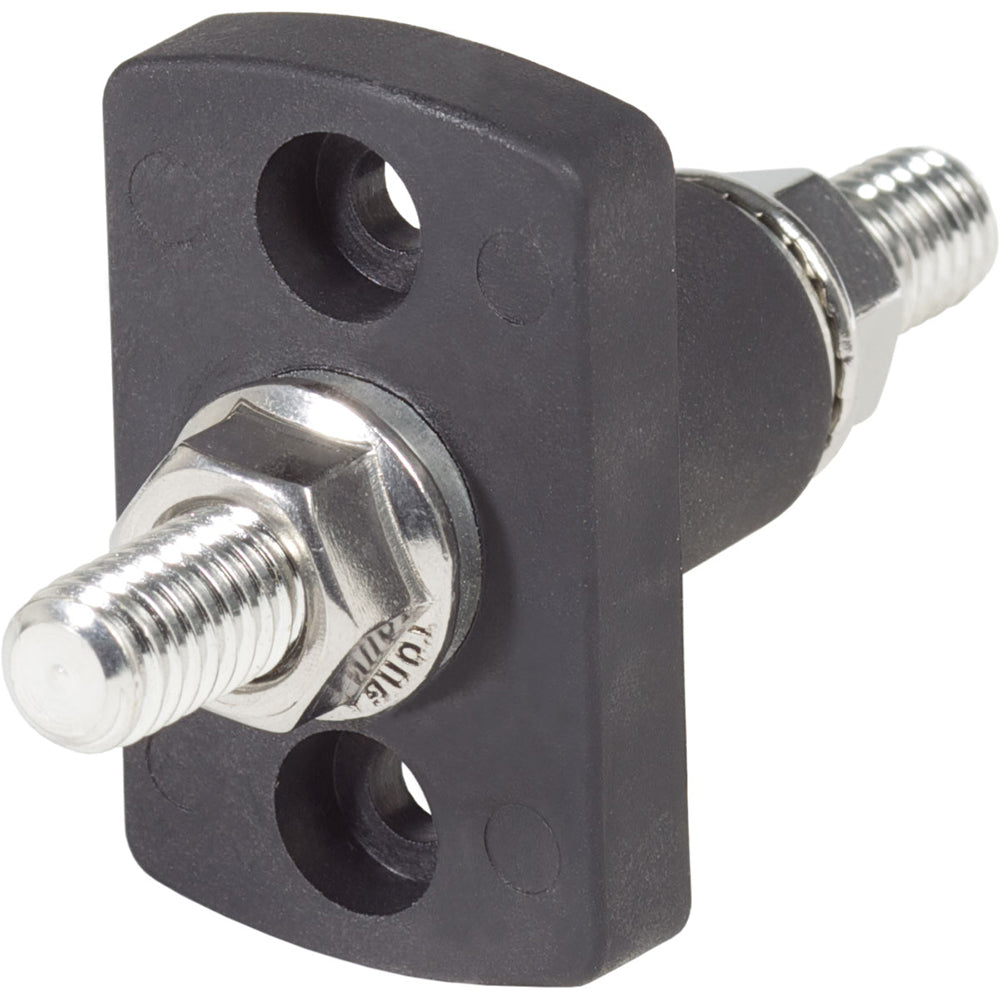

Blue Sea 2203 Black Terminal Feed Through Connector

Eliminates change and provides strain relief when passing high current through hulls, decks and bulkheads. The large terminals have a mounting face that can be gasketed or bedded to provide a water tight installation.

Blue Sea 2203BSS Attributes

• Type: Terminal Feed Through Connector
• Number Of Terminals: 1
• Voltage Rating: 48 Volt
• Ampere: 250 Amp
• Length (IN): 3.13 Inch
• Width (IN): 2 Inch
• Material: Reinforced Thermoplastic Base With Tin-Plated Copper Alloy Stud
• With Insulated Cover: No

Blue Sea 2203BSS Features & Benefits

• Perfect For Passing High Current Cables Through Hulls, Decks And Bulkheads
• Large Size Terminals Have A Mounting Face That Can Be Gasketed Or Bedded To Provide A Water Tight Installation
• Large Cables Passed Through Holes Are Subject To Chafing Even When Protective Grommeting Is Used
• Terminal Feed Through Connectors Eliminate Chafing And Provide Excellent Strain Relief For The Cable
• Rated IP66 — Withstands Water From Heavy Seas
• No Supplier Warranty

Blue Sea 2203BSS Technical Bulletins

• 2203-2204.pdf

Terminal Feed Through Connectors

Eliminates chage and provides strain relief when passing high current through hulls, decks and bulkheads.

Features:

• Perfect for passing high current cables through hulls, decks and bulkheads
• Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
• Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation
• Rated IP66 — withstands water from heavy seas

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Ocean System 3/8" -16 250A rating, black. Eliminates acne damage from wires passing through bulkheads. Cables passing through bulkheads, decks or any hard surface...
SKU: NVN-20212
MPN: 2203-BSS
UPC: 632085022037
