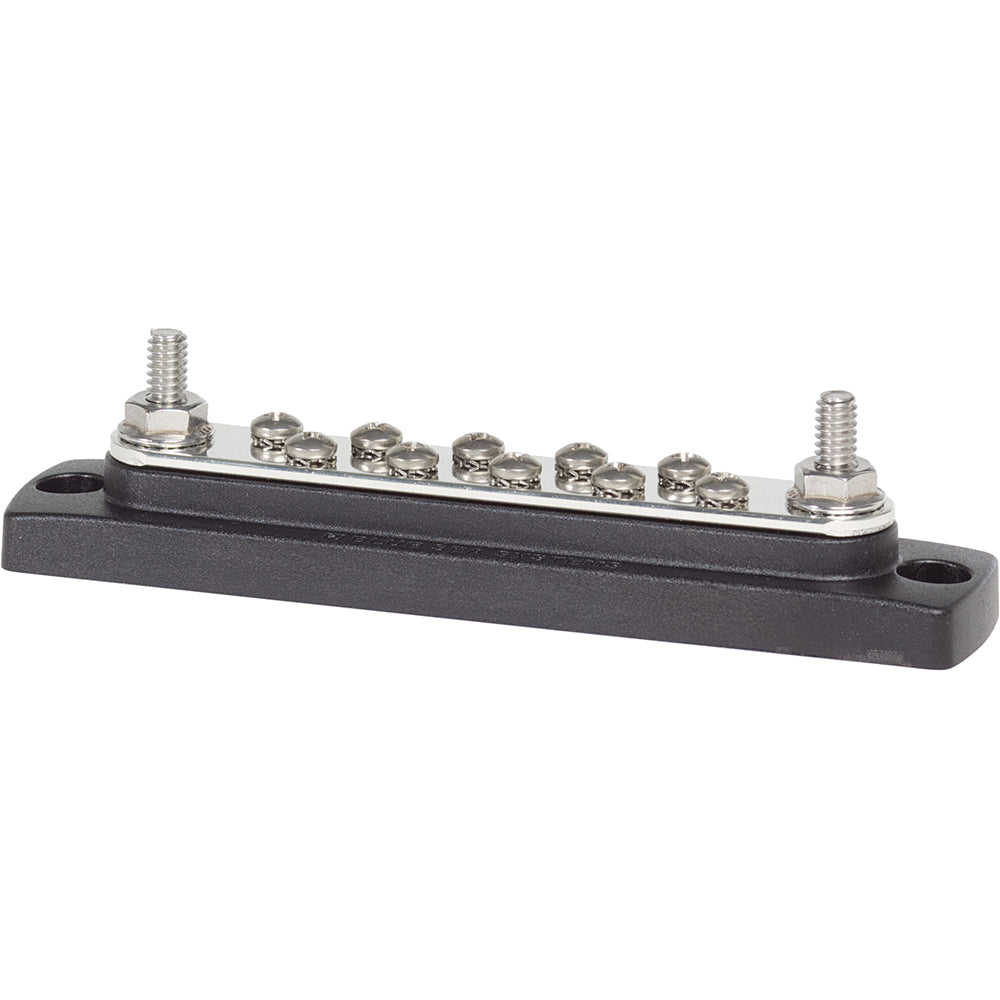

Blue Sea 2301 150AMP Common BusBar 10 x #8-32 Screw Terminal

BusBar 10 Gang Common Bus

BusBars distribute positive wires or collect negative returns. BusBars range in capacity from 100 Ampere to 600 Ampere.

Blue Sea 2301BSS Attributes

• Type: Flat Strip
• Number Of Terminals: 10
• Voltage Rating: 300 Volt/ 48 Volt
• Ampere: 130 Amp/ 150 Amp
• Length (IN): 6.1 Inch
• Width (IN): 1-1/4 Inch
• Material: Reinforced Polycarbonate Base With Tin-Plated Copper Bus
• With Insulated Cover: No

Blue Sea 2301BSS Features & Benefits

• 10 Stud Terminal
• Reinforced Polycarbonate Base With Tin-Plated Copper Bus
• For Positive Distribution And For The Collection Of Negative Or AC Ground Circuits
• One Piece Serrated Flange Nut Ensures Correct And Secure Connection
• No Supplier Warranty

2301 150AMP Common BusBar 10 x #8-32 Screw Terminal

Features:

• Stud design provides direct terminal to bus contact for low resistant connection
• Stainless steel studs and screws allow high torquing for excellent electrical contact
• Tin-plated copper bus for maximum conductivity and resistance to corrosion
• UL 94-VO rated (self extinguishing) base material resists high heat
• Raised bus provides easy access to multiple wires on a single screw
• UL 94-VO rated base material resists high heat
• Captive star type lock washers for anti-rotation and eliminate handling of small, easily dropped parts

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Sold in units of measurement: EAIindustry standard bus bars have tinned copper bus bars, 1/4 inch stainless steel studs and 8-32 terminal screws. Continuously rated 150 amp AC/DC,...
SKU: NVN-13944
MPN: 2301-BSS
UPC: 632085023010
