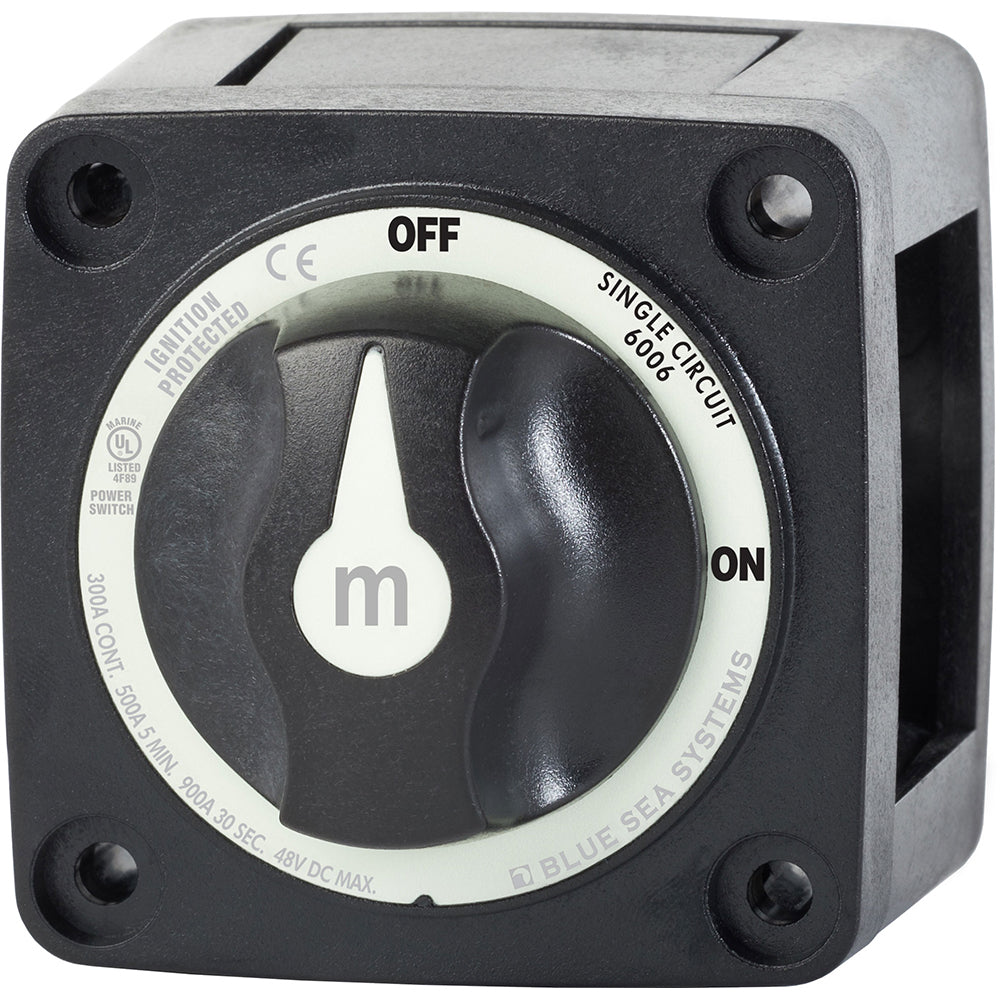

Blue Sea 6006200 Battery Switch Mini ON/OFF - Black

Commonly used on small boats or vehicles where the batteries are located near the operator. Blue Sea create innovative, high quality electrical products to improve the safety, simplicity, and reliability of boating.

Blue Sea 6006200BSS Attributes

• Type: Key
• Activation Type: Manual
• Continuous Ampere Rating (A): 300 Amp
• Surge Ampere Rating (A): 500 Amp
• Base Diameter (IN): 2-5/8 Inch
• Installation Type: Bolt-On

Blue Sea 6006200BSS Features & Benefits

• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• One-Piece Terminal Stud Design Never Loosens Over Time
• One Piece Stainless Flange Nut Ensure Safe And Secure Connections
• Isolating Cover Protects Rear Contacts
• Breakout Tabs Allow Wire Access In Any Direction
• No Supplier Warranty

Blue Sea 6006200BSS Installation Instructions

• 6006_web_version.pdf

Blue Sea 6006200BSS Technical Bulletins

• 6006_web_version.pdf
• M_Switch_Knob.pdf

6006200 - Black
m-Series (Mini) Battery Switch

Single Circuit ON/OFF

• Switches a single battery to a single load group

• Multiple switches can be used to manage several isolated circuits including cross connecting for emergency paralleling

• Ignition protected - Safe for installation aboard gasoline powered boats

• Case design allows surface, front panel, or rear panel mounting

• Isolating cover with snap-on sections protects rear contacts

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals

• 7/8" (22.22mm) stud length to accept multiple cable terminals

• Ideal for marine or RV applications

• All non-corrosive marine grade metals

• Molded in durable reinforced polycarbonate

• Tactile textures indicate knob position by feel only

• Label with international ON/OFF legends

• Removable key or knob remains positively retained

• ICON label set included for circuit identification

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

"6006200 - Blackm-Series (Mini) Battery Switch Single Circuit ON\/OFF Switches a single battery to a single load group Multiple switches can be used to manage several isolated circuits including cross connecting for emergency paralleling Ignition protected - Safe for installation aboard gasoline powered boats Case design allows surface, front panel, or rear panel mounting 3\/8\"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3\/8\" and M10 ring terminals 7\/8\" (22.22mm) stud length to accept multiple cable terminals Ideal for marine or RV applications ."
SKU: NVN-44192
MPN: 6006200-BSS
UPC: 632085600624
